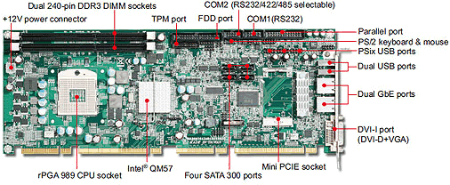

ROBO-8210VG2AR |
|
|
ROBO-8210VG2AR adopt with QM57 chipset and Intel® Core™ i7/i5/Celeron processors. Bulit with high performance and lower power consumption than desktop platform, it‘s suitable for medical, industrial automation and kiosk applications. |
|
|
|
FEATURES |
- Support Intel® i7-620M/i5-520M/P4500 processors in rPGA988 package
- Delivers up to 8GB maximum DDR3 1066/800 on two DIMM sockets
- Support dual display by DVI-I port on bracket
- Support iAMT 6.0 and external TPM via TPM module
- High speed dual Gigabit Ethernet based on PCI Express x1, high bandwidth I/O interface
- Rich I/O connections such as FDD, two Gigabit Ethernet, serial ports, parallel port, USB 2.0
- Four on-board SATA ports support RAID 0,1,5,10
|
|
|
PDF Datasheet download |
Accessory List |
|
 cable kit for FDD+PRN with bracket
|
Qty. x 1 |
dual head COM port cable with bracket |
Qty. x 1
|
SATA II cable
|
Qty. x 1 |
DVI-D + VGA cable with bracket |
Qty. x 1 |
CPU cooler(up to 35W) |
Qty. x 1 |
PICMG SBC Handling and Installation Notice
|
Qty. x 1 |
Installation CD
|
Qty. x 1 |
|
|
ORDERING GUIDE |
Standard
AB1-3521
ROBO-8210VG2AR
PICMG 1.3(PCI-E+PCI).rPGA988A package. Intel® QM57 w/ PGA type Core i7/i5 processors. SHB.w/VGA/Dual GbE/Audio
Optional
- PA-M1AU: Multimedia kit with audio and USB ports
- PS/2 Keyboard/Mouse Cable with Bracket: PS/2 keyboard/mouse connectors on bracket
- Low Profile LGA775 Cooler: High efficiency slim cooler that increases reliability of system
|
| |
|
|
|
