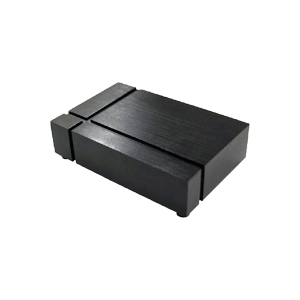

Ant Fanless System

Customs Tariff Code: 84715000

put in clip photo for enlarged image



Ant System Dimension Drawing
Front Panel :

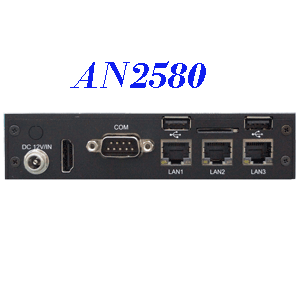

Back Panel:
( referebce config. )

DC 12V-in Power Jack x 1
DVI x 1
USB x 2
GbE LAN Port x 1
Line out x1

Power :
External Power Supply Adapter
Safety:

 FCC,TUV,CE,PSE,UL,CUL,CB, CNS,CCIB,CCEE,NEMKO..

Storage:

mSATA Half Size

Dimension:

 135 x 85 x 30 mm

Weight:

 400 gram

Data Sheet
PDF Download
Optional acc.:
  1. 380-000800:Wall Mount kit for ANT (per set of 2 pcs)
  2. 600-400021:Wireless Mini Card
  3. 640-400030:3G modem, mini-card, with Antenna
Ordering Information:
Product Code M/B Type Intel CPU onboard Memory Support LAN Feature Storage Availability
AN2570 2I260A-CH26 N2600 1.6GHz 2GB onboard 1 x Realtek GbE 4xUSB, com, HDMI m SATA (Half) Y
AN2571 2I260A-DH26 N2600 1.6GHz 2GB onboard 1 x Realtek GbE 2xUSB, HDMI, DVI m SATA (Half) Y
AN2580 2I260D-H26 N2600 1.6GHz 2GB onboard 3 x Realtek GbE 2xUSB, HDMI m SATA (Half) Y
