Blade Fanless System

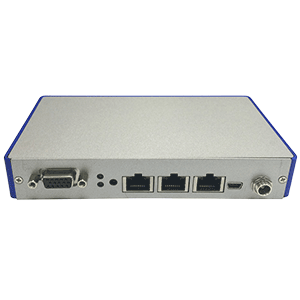

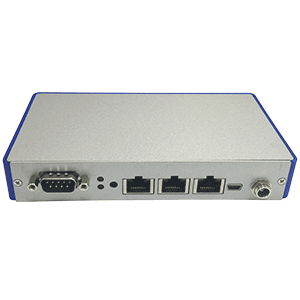

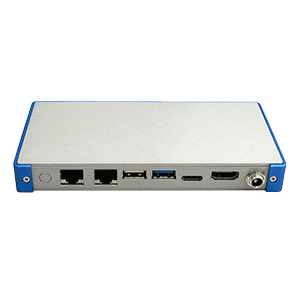

put in clip photo for enlarged image

Application: Thin Client / Digital Signage / Networking

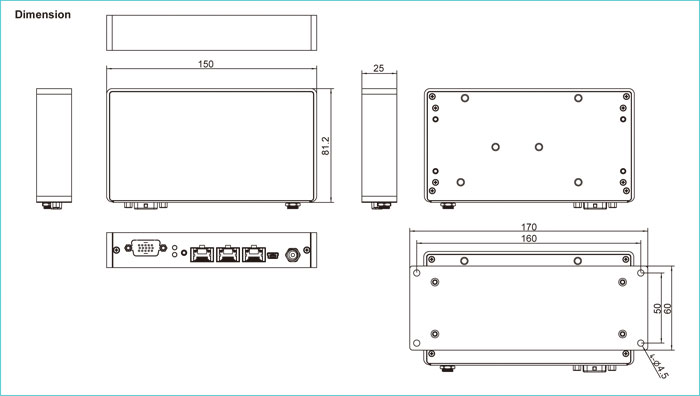

Blade Dimension Drawing
Data Sheet PDF download
Technical data:
MODEL BLADE System
Dimension 25H x 150W x 81.2D mm
Material Aluminum
Color Blue & Silver
Weight 0.26 Kg (Incl. M/B)
Storage Space mSATA
Optional Accessory Wall Mount kit
M/B information :
CPU Type M/B Model VGA HDMI LAN USB Audio Operation Temp
mSATA
Intel Bay Trail - I
2I385D
1 - 3 1 x mini USB - 50°C
Intel Bay Trail - D
2I385S
- 2 2 3 Line out / Mic-in 50°C

Optional acc.:
  1. SATA cable HDD kit for BLADE HDD
  2. 380-001000: Wall Mount kit for BLADE
  3. VESA Mount kit
  4. Wireless Realtek RTL8188EE mini card, PCIe interface, half size
  5. 570-CN0300: CN030, Mini-Card to mini-card + SIM slot
  6. 640-600010: 4G LTE EC20, mini card, USB interface, full size
Ordering Information:
Part No. Model Code M/B Type CPU onboard Memory LAN USB Serial Display Antenna DC A
BD1-BDS050 BLD3235S 2I385S-D92 J1900 2.0GHz 2GB on board 2 x Intel AT Giga LAN 2+1 - mini HDMI + HDMI 1 12V Y
