BRIK fanless barebone |
|
BRIK (for 2.5” HDD version)
BRIK (for 3.5” HDD version)
|
|

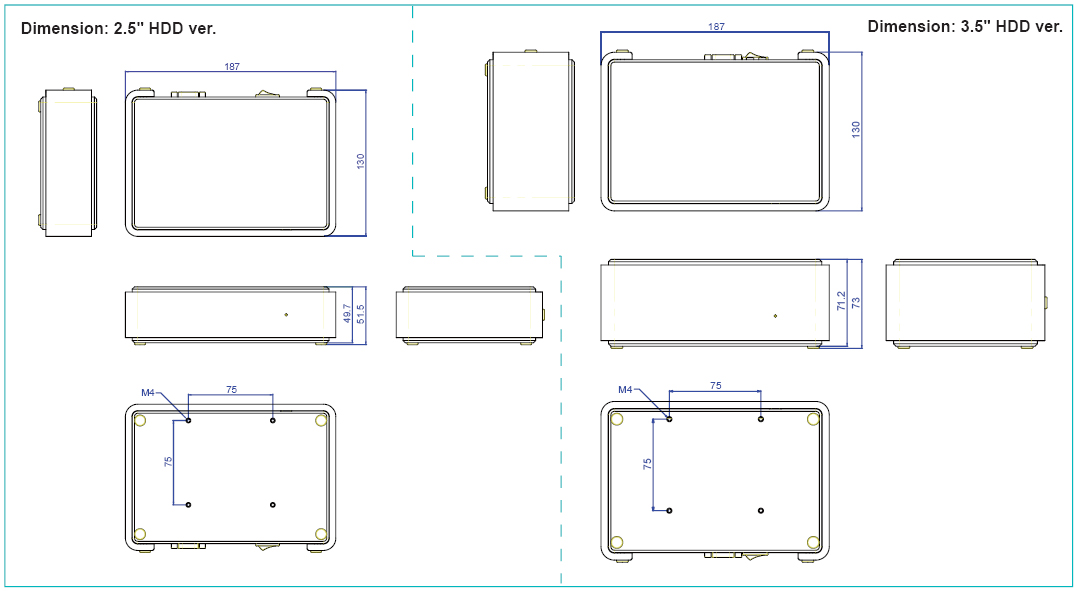

Brik Dimension Drawing(for 2.5”/3.5” HDD version) |
|
|
|
Versions: |
BRIK (for 2.5” HDD version)
BRIK (for 3.5” HDD version) |
Colour (Body/Cover) / Material:
|
Blue / Silver Aluminium (for 2.5” HDD version)
Silver / Blue Aluminium (for 3.5” HDD version) |
Front Panel : |
LED Power |
Back Panel 3V700A:
|
|
I/O Port |
3V700A-1R15C |
3V700D-VR15C |
3V700D-CR15C |
| Power Switch | 1x | 1x | 1x |
| DC 12V-in Power Jack | 1x | 1x | 1x |
| VGA | 1x | 1x | n/a |
| Mouse | 1x | n/a | n/a |
| Keyboard | 1x | n/a | n/a |
| RJ 45 – LAN | 1x | 3x | 3x |
| RS232 – Serial | 1x | n/a | 1x |
| MIC-in | 1x | n/a | n/a |
| LINE-out | 1x | n/a | n/a |
| USB 2.0 | 2x | 2x | 2x |
|
Power : |
30 Watt external Power Supply Adapter |
Safety: |
FCC, TÜV, CE, PSE, UL, CUL, CB, CNS, CCIB, CCEE, NEMKO |
Operating Temperature:
|
0 ~ 45°C with HDD
0 ~ 65°C with CF card |
Storage: |
2.5” SATA HDD / 3.5” SATA HDD |
Dimension: |
2.5” HDD Version: 187 mm
(W) x 49,7 mm (H) x 130 mm (D)
3.5” HDD Version: 187 mm (W) x 71,2 mm (H) x 130 mm (D) |
Weight: |
1 St / Karton
1,0 kg gross / 1,3 kg net (2.5” HDD Version)
1,3 kg gross / 1,6 kg net (3.5” HDD Version) |
|
|
|
Ordering Information: |
|
| |
|
| Product Code |
M/B Type |
VIA CPU onboard |
Mem. support |
LAN |
Serial |
USB |
VGA |
Storage Support |
| BK3393S-00A |
3V700A-1R15C |
VIA C7 1.5 GHz |
1 x SODIMM up to 1GB |
1 x Realtek 10/100 |
0 |
2 |
Yes |
CF / optional 2.5" HDD |
| BK3606S-00A |
3V700D-VR15C |
VIA C7 1.5 GHz |
1 x SODIMM up to 1GB |
3 x Realtek 10/100 |
0 |
2 |
Yes |
CF / optional 2.5" HDD |
| BK3605S-00A |
3V700D-CR15C |
VIA C7 1.5GHz |
1 x SODIMM up to 1GB |
3 x Realtek 10/100 |
1 |
2 |
No |
CF / optional 2.5" HDD |
| Product Code |
M/B Type |
Intel CPU onboard |
Mem. support |
LAN |
Serial |
USB |
VGA |
Storage Support |
| BK3701S-00A |
3I270A-H16-00 |
Atom N270 1.6 GHz |
1GB DDR2 onboard |
1 x Realtek GbE |
1 |
2 |
Yes |
CF / optional 2.5" HDD |
| BK3702S-00A |
3I270A-000 |
Atom N270 1.6 GHz |
1 x SODIMM up to 2GB |
1 x Realtek GbE |
1 |
2 |
Yes |
CF / optional 2.5" HDD |
| BK3741S-00A |
3I270D-V4G-H16-00 |
Atom N270 1.6 GHz |
1GB DDR2 onboard |
4 x Realtek GbE |
0 |
2 |
Yes |
CF / optional 2.5" HDD |
| BK3743S-00A |
3I270D-V4G-000 |
Atom N270 1.6 GHz |
1 x SODIMM up to 2GB |
4 x Realtek GbE |
0 |
2 |
Yes |
CF / optional 2.5" HDD |
| BK3742S-00A |
3I270D-V4U-H16-00 |
Atom N270 1.6 GHz |
1GB DDR2 onboard |
4 x Intel GbE |
0 |
2 |
Yes |
CF / optional 2.5" HDD |
| Product Code |
M/B Type |
VIA CPU onboard |
Mem. support |
LAN |
Serial |
USB |
VGA |
Storage Support |
| BK8393H-00C |
3V700A-1R15C |
VIA C7 1.5 GHz |
1 x SODIMM up to 1GB |
1 x Realtek 10/100 |
0 |
2 |
Yes |
3.5" HDD |
| BK8606H-00C |
3V700D-VR15C |
VIA C7 1.5 GHz |
1 x SODIMM up to 1GB |
3 x Realtek 10/100 |
0 |
2 |
Yes |
3.5" HDD |
| BK8605H-00C |
3V700D-CR15C |
VIA C7 1.5 GHz |
1 x SODIMM up to 1GB |
3 x Realtek 10/100 |
1 |
2 |
No |
3.5" HDD |
| Product Code |
M/B Type |
Intel CPU onboard |
Mem. support |
LAN |
Serial |
USB |
VGA |
Storage Support |
| BK8701H-00C |
3I270A-H16-00 |
Atom N270 1.6 GHz |
1GB DDR2 onboard |
1 x Realtek GbE |
1 |
2 |
Yes |
3.5" HDD |
| BK8702H-00C |
3I270A-000 |
Atom N270 1.6 GHz |
1 x SODIMM up to 2GB |
1 x Realtek GbE |
1 |
2 |
Yes |
3.5" HDD |
| BK8741H-00C |
3I270D-V4G-H16 |
Atom N270 1.6 GHz |
1GB DDR2 onboard |
4 x Realtek GbE |
0 |
2 |
Yes |
3.5" HDD |
| BK8743H-00C |
3I270D-V4G-000 |
Atom N270 1.6 GHz |
1 x SODIMM up to 2GB |
4 x Realtek GbE |
0 |
2 |
Yes |
3.5" HDD |
| |
|
|
|
|
|
|
|
|
| BK8701S-39C |
3I270A-H16-00 |
Atom N270 1.6 GHz |
1GB DDR2 onboard |
1 x Realtek GbE |
4 |
6 |
Yes |
2.5" HDD |
| BL2701S-39C |
3I270A-H16-00 |
Atom N270 1.6 GHz |
1GB DDR2 onboard |
1 x Realtek GbE |
4 |
6 |
Yes |
2.5" HDD |
|
|
|
