Mitex Fanless

put in clip photo for enlarged image

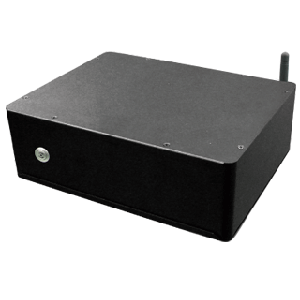

MiTex; MiTex-N/E; MiTex-P

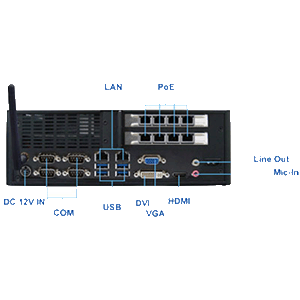

MiTex 4~8 Port PoE System
Intel® Celeron 847E ULV 1.1GHz CPU ; Intel® Ivy Bridge 1047UE, i3, i7 CPU
DDR3 SO-DIMM x 2 up to 16GB, VGA, DVI, HDMI, LVDS
2 x Gb Intel Ethernet, 2 x Mini PCIe,1 x SIM Card Socket, 9 x USB, 6 x COM
with 4-port 10/100/1000 BaseT(X) 802.3af Compliant Ethernet Ports PoE PCIe Card

Features

  1. Embedded Intel® Celeron 847E ULV 1.1Ghz CPU +Intel Cougar Point (PCH) HM65
  2. Embedded Intel® Ivy Bridge 1047 UE 1.4GHz, i3, i7 CPU +Intel Pather Point (PCH) HM76
  3. DDR3 SO-DIMM Socket x 2
  4. Multi Independent display: VGA, DVI & HDMI
  5. 2 x Intel GbE LAN, 9 x USB, Line-out, Mic-in , 4~6 x COM
  6. 2 x Mini PCIe ; 1 x SIM card socket
E-617A: 4 Port PoE PCI Express Communication Card
  1. PCI Express® x 1 Compliant
  2. Intel® Gbe Mac Controller
  3. 4 x Gigabit Ethernet MAC Controller & PHY ports
  4. Supports PoE(Power over Ethernet),IEEE 802.3af compliant
  5. Powered Device (PD) auto detection and classification
  6. Supports IEEE 802.3u Auto – Negotiation
  7. Supports 12V DC input power boost up to
    IEEE 802.3af standard 44V ~ 57V,15.4 W, typical 50V

Specifications:

MODEL CI847A CI770A
System Dimension
(W x Dx H)
266W x 216.3D x 86.5H mm
Weight (Incl.M/B) 2.6KG
CPU Intel Celeron 847E ULV 1.1GHz;
Intel® Ivy Bridge 1047 UE 1.4GHz , i3,i7 CPU
Intel® Mobile Ivy Bridge processor
Chipset Intel Cougar Point Platform Controller Hub (PCH) HM65;
Intel Pather Point Platform Controller Hub (PCH) HM76
Intel Cougar Point Platform Controller Hub (PCH) QM77
System Memory Support DDR3 1066/1333 MT/s SO-DIMM x 2 ;
Max up to 16 GB
Support DDR3 1066/1333 MT/s SO-DIMM x 2 ;
Max up to 16 GB
SSD Storage CF (CFast) CFast
mSATA Optional
On Board SSD Optional
HDD Space 2.5" HDD (2 x SATA ports 3.0 + 2 x SATA ports 2.0)
VGA Yes
DVI / HDMI Yes
USB 2 x USB 3.0 & USB 2.0 + 2 x USB 2.0 4 x USB 3.0 & USB 2.0
PS2/ KB/MS Optional
COM 4, Expand to 6
PCI 1
Mini PCIe 2
SIM Card Holder 1, ( 2nd optional) 2
Ethernet 2 x Intel GbE + 4~8 x PoE port
Min-in/Line-out Yes
GPIO 8 DI/DO (Optional)
Power input DC+12V ;
Wide Range DC in+6~36V (Option)
DC+12V
Expansion 3G, GPS, IEEE1394, Bluetooth, WI-FI, I/O
Operation Temperature 0 ~ 45 °C for HDD, 0 ~ 50 °C for CFast
Operation Humidity 5 ~ 95%@ 60 °C, non-condensing

Ordering Information:

Part Nr Product Code M/B Type Intel CPU onboard Mem. LAN Display USB Serial Mic in / Line out Storage Availability
ME2-HA2609 MX2291 CI847A-3C4A 1047UE 1.4GHz 2 x SODIMM up to 16G 2 x Intel GbE HDMI / DVI / VGA 4 4 1 mSATA / 2.5" HDD 4 W
