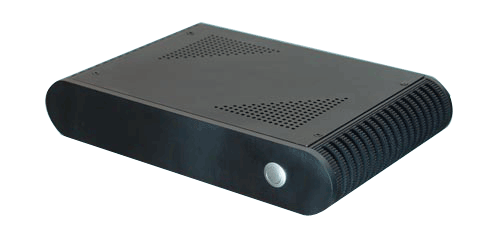

NEO FANLESS System |
|
|
|
|
Front Panel : |
LED Power Switch
|
Back Panel:
( referebce config. )
|
DC 12V-in Power Jack x 1
DB 15-Pin VGA Port x 1
DB 9-Pin COM 1/2 Port x 2
S-Video Outx1 RCA Jack for TV-out x 1
USB x 2
RJ 45 LAN Port x 1
S-Video in x 1
RCA jack for analog Video in port x 1 IEEE 1394A Type A
port x2
SPDIF-OUT x1 Audio Line in x1) |
Power : |
External Power Supply Adapter
|
Safety: |
FCC,TUV,CE,PSE,UL,CUL,CB, CNS,CCIB,CCEE,NEMKO..
|
Storage: |
1 x Compact Flash Socket
1 x DOC Disk on Chip
1 x 40 pin DOM
1 x 44 pin DOM
1 x 2.5" HDD
|

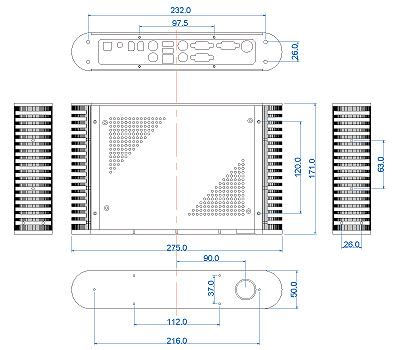

Dimension: |
5.0cm (H) x 27.5cm (W) x 17.2cm (D) |
Weight: |
2 St/Karton
3,5Kg/St |
Ordering Information: |
| Product Code |
M/B Type |
CPU |
LAN |
Serial |
USB |
Main Features |
Storage Support |
| NE2782-00A* |
CI270C-2G-H16 |
Intel Atom N270 1.6 GHz |
2 x Realtek Giga LAN |
4 |
4 |
4 x COM, WDT/DIO |
CF / optional 2.5" HDD |
NE2781-00A |
CI270C-2G-000 |
Atom N270 1.6 GHz |
2 x Realtek Giga LAN |
4 |
4 |
4 x COM, WDT/DIO |
CF / optional 2.5" HDD |
| NE2821-00A |
MI270A-2G-000 |
Atom N270 1.6 GHz |
2 x Realtek Giga LAN |
2 |
4 |
TV out, DVI, Video in |
CF / optional 2.5" HDD |
| NE2208 |
CI852A-4RN10 |
Intel Celeron M 1 GHz |
4 x Realtek 10/100 |
1 |
4 |
1 x COM |
CF / optional 2.5" HDD |
| NE2212 |
CI852A-4UN10 |
Intel Celeron M 1 GHz |
4 x Intel Giga Lan |
1 |
4 |
1 x COM |
CF / optional 2.5" HDD |
| NE2227 |
CI852C-2RN10 |
Intel Celeron M 1 GHz |
2 x Realtek 10/100 |
4 |
2 |
4 x COM, WDT/DIO |
CF / optional 2.5" HDD |
| NE2231 |
CI852C-2UN10 |
Intel Celeron M 1 GHz |
2 x Intel Giga Lan |
4 |
2 |
4 x COM, WDT/DIO |
CF / optional 2.5" HDD |
| NE2422 |
MI853A-1R10 |
Intel Celeron M 1 GHz |
1 x Realtek 10/100 |
0 |
2 |
TV out, DVI, Video in, Firewire |
CF / optional 2.5" HDD |
| Product Code |
M/B Type |
CPU |
LAN |
Serial |
USB |
Main Features |
Storage Support |
| NE2310-00A |
CV700A-3R10U |
Eden ULV 1 GHz |
3 x Realtek 10/100 |
2 |
2 |
2 x COM, 1 x Parallel |
CF / optional 2.5" HDD |
| NE2309-00A |
CV700A-3U10U |
Eden ULV 1 GHz |
3 x Intel Giga Lan |
2 |
2 |
2 x COM, 1 x Parallel |
CF / optional 2.5" HDD |
| NE2346-00A |
CV763A-4R10U |
Eden ULV 1 GHz |
4 x Realtek 10/100 |
2 |
2 |
2 x PCMCIA, 1 x COM |
CF / optional 2.5" HDD |
| NE2327-00A |
CV700C-1R10U |
Eden ULV 1 GHz |
1 x Realtek 10/100 |
4 |
2 |
4 x COM, 1 x Parallel |
CF / optional 2.5" HDD |
| NE2367-00A |
MV700A-1R10U |
Eden ULV 1 GHz |
1 x Realtek 10/100 |
1 |
2 |
TV out, DVI, Video in, 1 x COM |
CF / optional 2.5" HDD |
|
| * 1GB RAM on Board |
**1 SO bis 2GB DDR2
|
|
|
|
|
