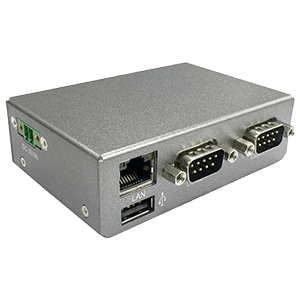

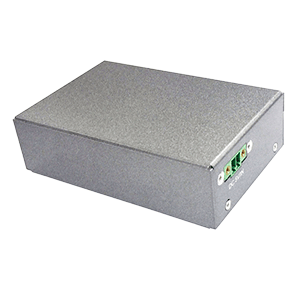

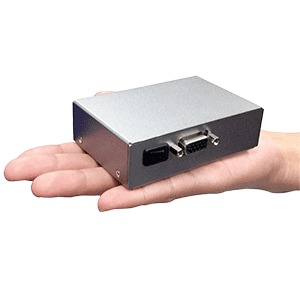

Palm-I Fanless System

put in clip photo for enlarged image

Application: Portable PC / Automation Control / Transportation

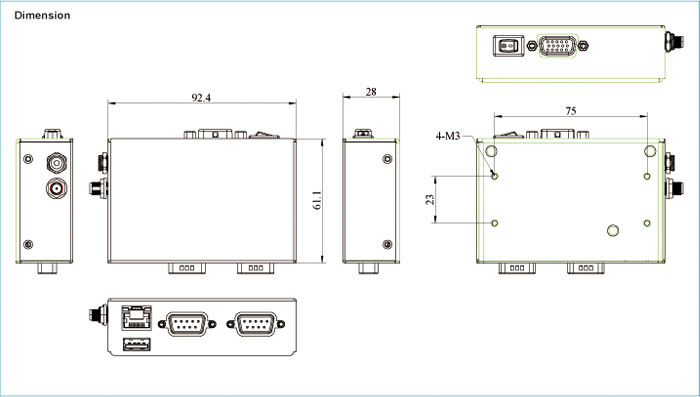

Palm-I System Dimension Drawing
Data sheet PDF download
Technical Data :
MODEL PALM-I System
Dimension 28H x 92.4W x 61.1D mm
Material Aluminum
Color Iron gray
Weight 155 g (Incl. M/B)
Storage Space mSATA



MB Information:
CPU Type M/B Model VGA LAN COM USB More Functions Operation Temp
mSATA
Intel Bay Trail - I
1I385A
1 1 2 1 x USB 2.0 DC-IN +5V 50°C



Optional acc.:
  1. 570-CN0300: CN030, Mini-Card to mini-card + SIM slot
  2. Wireless Realtek RTL8188EE mini card, PCIe interface, half size
  3. 640-600010: 4G LTE EC20, mini card, USB interface, full size
Ordering Information:
Part No. Model Code M/B Type CPU onboard Memory LAN USB Serial Display SIM / Antenna DC A
PM1-BTL027 PM3385 1I385A-I22 E3825 1,33 GHz 2GB on board 1 x Intel IT Giga LAN 1 2 VGA - / 1 5V Y
