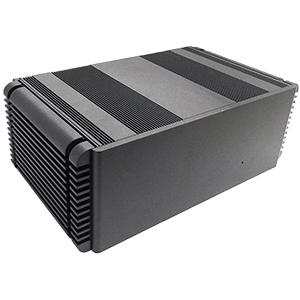

Task Fanless System

Customs Tariff Code: 84715000

put in clip photo for enlarged image

Application: Automation / Surveillance / POS, Kiosk / Digital Signage / Networking

Task Dimension Drawing
Data Sheet PDF download
Technical data:
MODEL TASK System
Dimension 77H x 210W x 125D mm
Material Aluminum
Color Black
VESA Mounting (option) 75 x 75 mm
Weight 1.9 Kg (Incl. M/B)
Storage Space mSATA / 2.5" HDD
M/B information :
CPU Type M/B Model VGA COM LAN USB Audio More Functions Operation Temp
mSATA HDD
Intel Apoolo Lake
3I390NX
1 2 5
(4 x POE)
Built-in 2 x USB,
expand up to
4 x USB
Option DP, HDMI, DIO 70°C 50°C

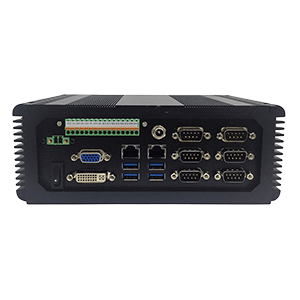

3I390AW
1 6 2 4 Option DVI, DIO 70°C 50°C
Intel Ivy Bridge 1047UE

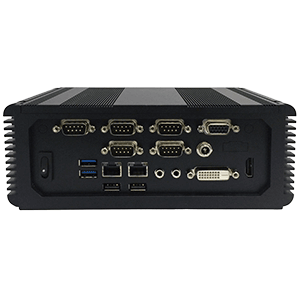

3I847A
1
(Option)
6 2 4 Line-out
Mic-in
DVI 70°C 50°C
Intel Broadwell - U
3I860A/CW
N/A 4 4 4 Option DP, HDMI, DIO 70°C 50°C
Intel Bay Trail
3I380A/CW
1 6 2 4 Line-out
Mic-in
HDMI 70°C 50°C


Optional acc.:
  1. 581-ST0028 : SATA cable set, TASK-3I380
  2. VESA Mount kit
  3. Wireless Realtek RTL8188EE mini card, PCIe interface, half size
  4. 640-600010: 4G LTE EC20, mini card, USB interface, full size
Ordering Information:
Part Number Product Code M/B CPU Memory Support LAN USB Serial Display Antenna A
TK1-ALA027 TK2A70-00F 3I390AW-N40 N4200 up to 2.50 GHz DDR3L SODIMM up to 8GB 2 x Intel AT GigaLAN 4 6 DVI+VGA int. / 1 Y
Call TK2A71-00F 3I390AW-N30 N3350 up to 2.40 GHz DDR3L SODIMM up to 8GB 2 x Intel AT GigaLAN 4 6 DVI+VGA int. / 1 5W
TK1-ALN032 TK2A80-00F 3I390NX-N44 N4200 up to 2.50 GHz DDR3L 4GB on board 5 x Intel GigaLAN
( 4 x PoE )
4 2 HDMI+DP or VGA int. / 2 5W
TK1-BT6027 TK2536-00F 3I380CW-I44 E3845 1,91 GHz DDR3L 4GB onboard 2 x Intel AT GigaLAN 4 6 HDMI+VGA int. / 1 Y
Call TK2B21-00F 3I847CW-3C4 Celeron 1047UE 1.4 GHz SODIMM up to DDR3 8GB 2 x Intel GigaLAN 4 6 HDMI+DVI int. / 2 5W
  1. DC: 9~36V input
  2. 2.5" HDD kit optional
