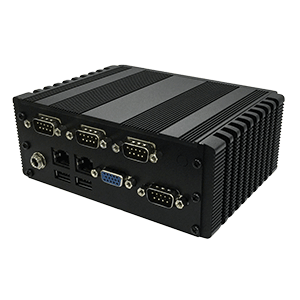

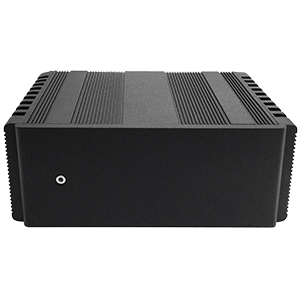

Tera Fanless System

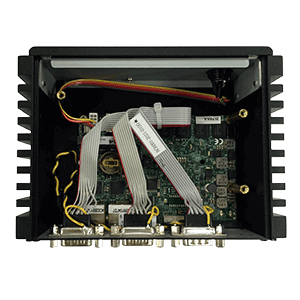

put in clip photo for enlarged image

Application: Thin Client / Digital Signage / Networking

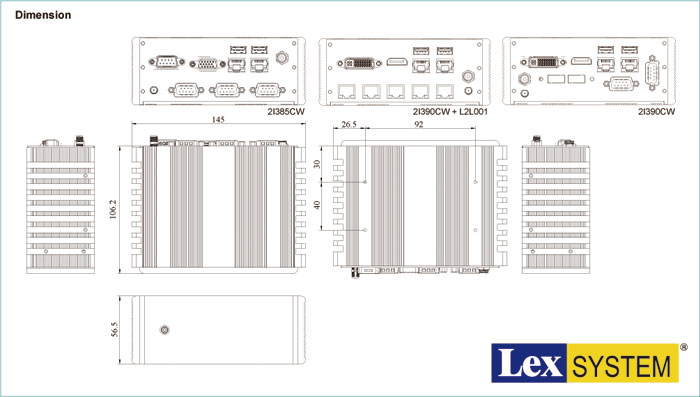

Tera Dimension Drawing
Data Sheet PDF download
Technical data:
Model TERA System
Dimension 56.5H x 145W x 106.2D mm
Material Aluminum
Color Black
Weight 0.9 Kg (Incl. M/B)
Storage Space mSATA / 2.5" HDD
M/B information :
CPU Type M/B Model VGA COM LAN USB More Functions Operation Temp.
mSATA SSD HDD
Intel Bay Trail E3845

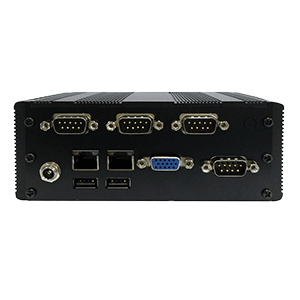

2I385CW
1 4 2 2 2 x mini Card,
DC IN +9~36V
70°C 70°C
Intel Apollo Lake
N4200 / N3350 / E3950

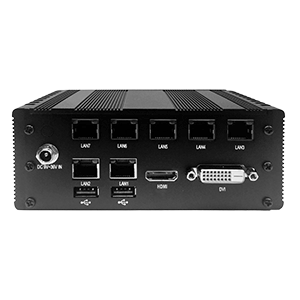

2I390CW + L2L001
N/A N/A 7 2 DVI, HDMI, SIM,
3 x mini Card,
DC IN +9~36V
70°C
2I390CW
N/A 2 2 4 DVI, HDMI,
2 x mini Card,
DC IN +9~36V
70°C 70°C


Optional acc.:
  1. 380-000900: Wall Mount Kit [by set] for TWIN
  2. Wireless Realtek RTL8188EE mini card, PCIe interface, half size
  3. 660-CC0040: CC104, RS232 to RS422/RS485 (isolation)
  4. 640-600010: 4G LTE EC20, mini card, USB interface, full size
  5. 581-ST0027: SATA cable set, TERA-2I385A/CW
Ordering Information:
Part Number Product Code M/B CPU Memory LAN Display USB COM SIM / Antenna DC A
TA1-BTB027 TA2276-00F 2I385A-I44 E3845 1.91 GHz 4GB on board 2 x Intel AT Giga LAN 2 4 VGA - / 1 12V Y
TA1-ALC027 TA2457-00F 2I390CW-N44 N4200 up to 2.5GHz 4GB on board 2 x Intel AT Giga LAN 4 2 HDMI+DVI - / 1 9~36V 2~3W
call TA2456-00F 2I390CW-N34 N3350 up to 2.4GHz 4GB on board 2 x Intel AT Giga LAN 4 2 HDMI+DVI - / 1 9~36V 5W
call ? 2I390CW-N44
(L2L001)
N4200 up to 2.5GHz 4GB on board 7 x Intel AT Giga LAN 2 - HDMI+DVI - / 1 9~36V 2~3W
TERA IO Barebone Systems
call ? 2I385A-I44 E3845 1.91 GHz 4GB on board 2 x Intel AT Giga LAN 4 4 VGA - / 1 12V Project
