Barebone System -Tino FANLESS System |
|
|
|
|
Features : |
With an excellent fanless support up to Pentium M 2.13Ghz
CPU, TINO Case brings you a whole new experience with heat.
Major Material is Aluminum for heat dissipation. Its unique
design makes the system completely silent, compact, and
industrial applicable. It can be applied as Network Device,
Set-Top Box, VPN, VOIP, DVR and POS system.
TINO System Case provides space for 1 x 2.5" Slim HDD
with PCI 104 card or 2 x 2.5" HDD.
|
Technical Data: |

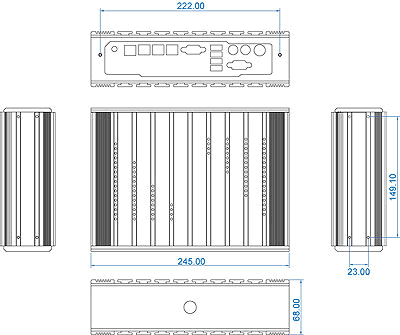

Dimension |
68 H x 245 W x 177 D mm |
Dimension (FI855A) |
68 H x 245 W x 234 D mm |
Material |
Aluminum |
Color |
Black |
Weight |
2.9 Kgs ( Include M/B ) |
Storage Space |
2.5" HDD + PCI 104 card or 2 * 2.5" HDD |
Ordering Information: |
| Product Code |
MB Type |
Intel CPU |
LAN |
Serial |
USB |
Main Features |
Storage Support |
| TN2782-00C |
CI270C |
Atom N270 1.6 GHz |
2 x Realtek 10/100 |
4 |
4 |
4 x COM, WDT/DIO |
2.5" SATA HDD |
| TN2208-32 |
MI270A |
Atom N270 1.6 GHz |
2 x Realtek 10/100 |
2 |
4 |
TV out, DVI, Video in |
2.5" SATA HDD |
| TN2208-32 |
CI852A-4RN10 |
Celeron M 1 GHz |
4 x Realtek 10/100 |
1 |
4 |
VGA, PS/2, Line-out |
2.5" IDE HDD |
| TN2203-32 |
CI852A-4RNXX |
socket 478 |
4 x Realtek 10/100 |
1 |
4 |
VGA, PS/2, Line-out |
2.5" IDE HDD |
| TN2210-32 |
CI852A-4UNXX |
socket 478 |
4 x Intel Giga LAN |
1 |
4 |
VGA, PS/2, Line-out |
2.5" IDE HDD |
| TN2227-32 |
CI852C-2RN10 |
Celeron M 1 GHz |
2 x Realtek 10/100 |
4 |
2 |
WDT/DIO, VGA, PS/2 |
2.5" IDE HDD |
| TN2223-32 |
CI852C-2RNXX |
socket 478 |
2 x Realtek 10/100 |
4 |
2 |
WDT/DIO, VGA, PS/2 |
2.5" IDE HDD |
| TN2229-32 |
CI852C-2UNXX |
socket 478 |
2 x Intel Giga LAN |
4 |
2 |
WDT/DIO, VGA, PS/2 |
2.5" IDE HDD |
| TN2242 |
FI852A-RNXX |
socket 478 |
1 x Realtek 10/100 |
0 |
2 |
TV out, DVI, SPDIF-out |
2.5" IDE HDD |
| TN2422-35 |
MI853A-1R10 |
Celeron M 1 GHz |
1 x Realtek 10/100 |
1 |
2 |
TV out, DVI, Video in, Firewire |
2.5" IDE HDD |
| TN2423-35 |
MI853A-1RXX |
socket 478 |
1 x Realtek 10/100 |
1 |
2 |
TV out, DVI, Video in, Firewire |
2.5" IDE HDD |
| TN2481 |
CI945A-4RXX |
socket |
4 x Realtek 10/100 |
1 |
2 |
VGA |
2.5" IDE HDD |
| TN2491 |
CI963A-4RXX |
socket |
4 x Realtek 10/100 |
1 |
2 |
2 x PCMCIA, VGA |
2.5" IDE HDD |
| TN2503 |
CI945C-2GXX |
socket |
2 x Realtek Giga LAN |
4 |
4 |
WDT/DIO, DVI, Minc-in, Line-out |
2.5" IDE HDD |
| TN2511 |
MI945A-2GXX |
socket |
2 x Realtek Giga LAN |
2 |
4 |
TV out, Video-in, DVI, Mic-in, Line-out |
2.5" IDE HDD |
|
|
|
|
|
