Barebone System - Twister FANLESS System |
|
|
|
|
Feature |
High Level System Case, Fan Less up to 1Ghz
CPU Model Main Board |
Description |

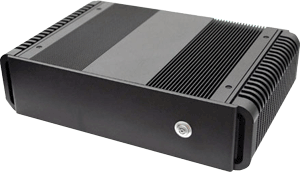

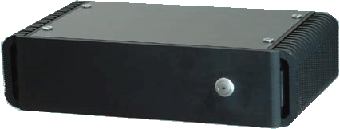

Twister Case was featured with Fan-Less
system, Simple, Compact, Stylish. It can be applied as Thin
Client, NetWork Device, Set-Top Box, VPN, VOIP DVR and POS
system. Major Material is Aluminum for good heat solution,
Twister System can operate very well with out CPU Cooler
Fan for VIA C3 1G CPU and it can reduce the risk of Fan
System Fail possibility.
Twister System Case provides 1 x 2.5" Slim HDD or 1
x 3.5" Standard HDD Space. Twister also provides 1
x PCI Slot space (with 2.5" HDD) for any function extension
requirement . |
Technical Data |
|
Dimension1 |
75 H x 300 W x 200 D mm |
|
Dimension2 |
75 H x 300 W x 263 D mm (FI855A) |
|
Material |
Aluminum |
|
Color |
Black |
|
Weight |
2.9 Kgs ( Include M/B ) |
|
Storage Space |
2.5" HDD (available with 1
PCI Card)
3.5" HDD
|
|

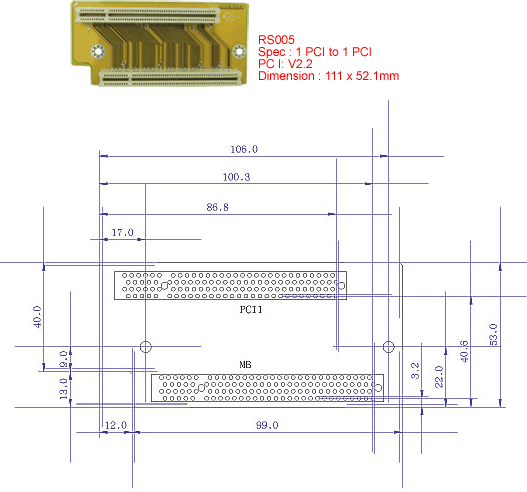

PCI Slot ( RS0005
) |
1 (PCI riser card option) |
|
Option ( Function inside the case ) |
Wireless Lan |
Chip : ATMEL , USB Interface , 802.11b Standard ,
Driver :Win98,ME,2K,XP,Linux, 128bit WEP Encryption
Support |
56K Modem(ST) |
Chip : ST , USB Interface , Driver : Win98,ME,2K,XP,Linux |
56K Modem(CX) |
Chip : Conexant , USB Interface , Driver : Win98,ME,2K,XP. |
ISDN |
Chip : Cologne, ISDN Standard ETSI Euro ISDN,
Driver : Win98,ME,2K,XP,Linux |
ADSL |
Chip : Conexant , ANSI T1.413 Issue 2, ITU-T G.992(
G.dmt ) and G.992.2(G.lite) Annex A,B . Driver : Win98,ME,2K,XP,Linux
( No WinCE) |
|
Front Panel : |
LED Power Switch
|
Back Panel
( Reference Config. ) |
S/2 for Keyboard/Mouse2x USB ports Audio
Speaker/ Microphone-in 1x S-Video 1x RCA Jack for TV-out4x
BNC ports for Video in 2~4x Serial ports1x Parallel1~3x
RJ-45VGA ConnectorPCMCIA |
Power : |
External Power Supply Adapter |
Safety: |
FCC,TUV,CE,PSE,UL,CUL,CB, CNS,CCIB,CCEE,NEMKO. |
Storage: |
1x 2.5" HDD + PCI slot 1x
3.5" HDD |
Weight: |
2.9KG( Including case and M/B) |
Ordering Information: |
| Product Code |
MB Type |
CPU onboard |
LAN |
Serial |
USB |
Main Features |
Storage Support |
| TW2301H |
CV700A-3R10C |
C7 V4 1GHz |
3 x Realtek 10/100 |
2 |
2 |
2 x COM, 1 x Parallel |
3.5" HDD |
| TW2346H |
CV763A-4R10U |
VIA ULV 1 GHz |
4 x Realtek 10/100 |
1 |
2 |
2 x PCMCIA, 1 x COM |
3.5" HDD |
| TW2346S |
CV763A-4R10U |
VIA ULV 1 GHz |
4 x Realtek 10/100 |
1 |
2 |
2 x PCMCIA, 1 x COM |
2.5" HDD |
| TW2361H |
MV700A-1R10C |
C7 V4 1GHz |
1 x Realtek 10/100 |
1 |
2 |
TV out, DVI, Video in, 1 x COM |
3.5" HDD |
| TW2361S |
MV700A-1R10C |
C7 V4 1GHz |
1 x Realtek 10/100 |
1 |
2 |
TV out, DVI, Video in, 1 x COM |
2.5" HDD |
| TW2208H |
CI852A-4RN10 |
Celeron M 1 GHz |
4 x Realtek 10/100 |
1 |
4 |
1 x COM |
3.5" HDD |
| TW2203S |
CI852A-4RNXX |
socket 478 |
4 x Realtek 10/100 |
1 |
4 |
1 x COM |
3.5" HDD |
| TW2227H |
CI852C-2RN10 |
Celeron M 1 GHz |
2 x Realtek 10/100 |
4 |
2 |
4 x COM, WDT/DIO |
3.5" HDD |
| TW2223S |
CI852C-2RNXX |
socket 478 |
2 x Realtek 10/100 |
4 |
2 |
4 x COM, WDT/DIO |
3.5" HDD |
| TW2402S |
CI853C-2RN10 |
Celeron M 1 GHz |
2 x Realtek 10/100 |
4 |
2 |
4 x COM, WDT/DIO, 1 x PCI Slot |
2.5" HDD |
| TW2401S |
CI853C-2RNXX |
socket 478 |
2 x Realtek 10/100 |
4 |
2 |
4 x COM, WDT/DIO, 1 x PCI Slot |
2.5" HDD |
| TW2242H |
FI852A-RNXX |
socket 478 |
1 x Realtek 10/100 |
0 |
2 |
TV out, DVI |
3.5" HDD |
| TW2242S |
FI852A-RNXX |
socket 478 |
1 x Realtek 10/100 |
0 |
2 |
TV out, DVI |
2.5" HDD |
| TW2422H |
MI853A-1R10 |
Celeron M 1 GHz |
1 x Realtek 10/100 |
1 |
2 |
TV out, DVI, Video in, Firewire |
3.5" HDD |
| TW2422S |
MI853A-1R10 |
Celeron M 1 GHz |
1 x Realtek 10/100 |
1 |
2 |
TV out, DVI, Video in, Firewire |
2.5" HDD |
| TW2423S |
MI853A-1RXX |
socket 478 |
1 x Realtek 10/100 |
1 |
2 |
TV out, DVI, Video in, Firewire |
2.5" HDD |
| TW2481S |
CI945A-4RXX |
socket |
4 x Realtek 10/100 |
1 |
2 |
VGA |
2.5" HDD |
| TW2491S |
CI963A-4RXX |
socket |
4 x Realtek 10/100 |
1 |
2 |
2 x PCMCIA, VGA |
2.5" HDD |
| TW2503S |
CI945C-2GXX |
socket |
2 x Giga LAN Realtek |
4 |
4 |
WDT/DIO, DVI, Minc-in, Line-out |
2.5" HDD |
| TW2511S |
MI945A-2GXX |
socket |
2 x Giga LAN Realtek |
2 |
4 |
TV out, Video-in, DVI, Mic-in, Line-out |
2.5" HDD |
|
|
|
|
|
