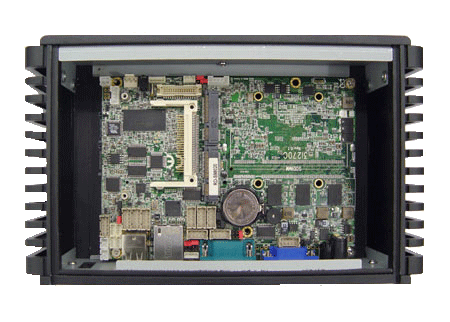

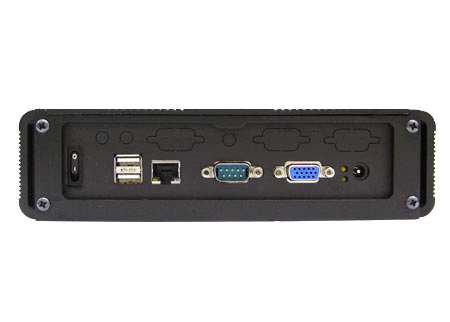

Twitter barebone system |
|
|
|
Specifications |
|
50 H x 210 W x 125.5 D mm |
Material |
Aluminum |
Color |
Black |
|
75 x 75 mm |
|
2.2 Kgs ( Incl. M/B ) |
|
2.5" HDD |
|
0 ~ 45 °C ( 2.5" HDD / CF Card ) |
|
Ordering Information |
| Product Code |
Part No. |
M/B Type |
Intel CPU onboard |
Mem. |
LAN |
USB |
Serial |
Display |
Mic in / Line out |
Storage |
Wide DC In onboard |
| TT2528-00F |
TT1-BTV022 |
3I380A-I22 |
E3825 1,33 GHz |
DDR3L 2GB onboard |
2 x GbE Intel |
4 |
4 |
HDMI+ VGA |
1 |
2.5" HDD / mSATA |
12V |
| TT2531-00F |
TT1-BT4022 |
3I380A-I44 |
E3845 1,91 GHz |
DDR3L 4GB onboard |
2 x GbE Intel |
4 |
4 |
HDMI+ VGA |
1 |
2.5" HDD / mSATA |
12V |
| TT2536-00F |
TT1-BT6022 |
3I380CW-I44 |
E3845 1,91 GHz |
DDR3L 4GB onboard |
2 x GbE Intel |
4 |
4 |
HDMI+ VGA |
1 |
2.5" HDD / mSATA |
+9V ~ +36V |
| TT2516-00F |
TT1-BTJ022 |
3I380D-D90 |
J1900 2,00 GHz |
DDR3L SO Dimm |
4 x GbE Intel |
3 |
2 |
HDMI+ VGA |
-- |
2.5" HDD / mSATA |
12V |
| TT2640-00F |
TT1-HAB022*1 |
3I847A-3C4 |
Celeron 1047UE 1.4 GHz |
SODIMM up to 8GB |
2x GbE Intel |
4 |
3 |
HDMI + DVI+ VGA |
1 |
2.5" HDD / mSATA |
12V |
| TT2B21-00F |
TT1-HAC022 |
3I847CW-3C4 |
Celeron 1047UE 1.4 GHz |
SODIMM up to 8GB |
2x GbE Intel |
4 |
3 |
HDMI + DVI+ VGA |
1 |
2.5" HDD / mSATA |
+9V ~ +36V |
| TT2B23-00F*1 |
TT1-HAG022 |
3I847CW-3I7 |
i7-3517UE |
1 x SODIMM up to 8GB |
2 x Gbps Intel |
4 |
3 |
HDMI + DVI+ VGA |
1 |
2.5" HDD / mSATA |
+9V ~ +36V |
| TT2B07-00F*1 |
TT1-HAD022 |
3I847D-3C4-H4 |
Celeron 1047UE 1.4 GHz |
DDR3 4GB onboard |
5 x Intel GbE LAN |
3 |
2 |
HDMI +VGA |
1 |
2.5" HDD / mSATA |
12V |
| TT2B03-00F*1 |
TT1-HAX022*1 |
3I847NX-3C4-H4 |
Celeron 1047UE 1.4 GHz |
DDR3 4GB onboard |
5x Intel GbE LAN
(4x PoE) |
3 |
2 |
HDMI +VGA |
1 |
2.5" HDD / mSATA |
+9V ~ +36V |
| TT2B01-00F*1 |
TT1-HAN022*1 |
3I847NM-3C4-H4 |
Celeron 1047UE 1.4 GHz |
DDR3 4GB onboard |
5x Intel GbE LAN
(4x PoE) |
3 |
2 |
HDMI +VGA |
1 |
2.5" HDD / mSATA |
+9V ~ +36V & Car power control |
| |
|
|
|
|
|
|
|
|
|
|
|
Storage Support:CF / optional 2.5" HDD
- availability: 4 weeks
- 3I847x boards are possible to affix
core i3 (MOQ 100, + call for price) or core i7 (MOQ 50, + call for price) ; With 30% down payment.
|
| Twitter IO embeded systems |
| Part Number |
Product Code |
M/B Type |
Intel CPU onboard |
Memory Support |
LAN |
USB |
Serial |
VGA |
Storage Support |
| |
|
|
|
|
|
|
|
|
|
|
|
| Optional acc.: |
| Part No. |
Item Name |
| 581-ST0012 |
SATA cable set, TT-3I serie, CU-3I serie |
| 600-500040 |
Wireless 802.11n, mini-card, with Antenna (Windows & Linux) |
| Vesa75100 |
Vesa 75 / 100 Mounting Kit |
| 381-LT0010 |
Anti-Vibration kit for LEO / TWITTER |
| 350-TT1000 |
TWITTER bottom cover for Anti-Vibration |
|
|
|
|
|
|
|
|
|
