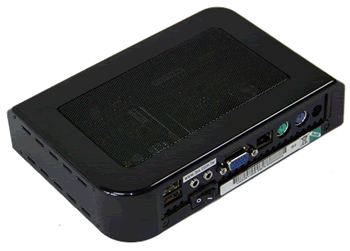

UNO fanless barebone |
|
|
|
UNO

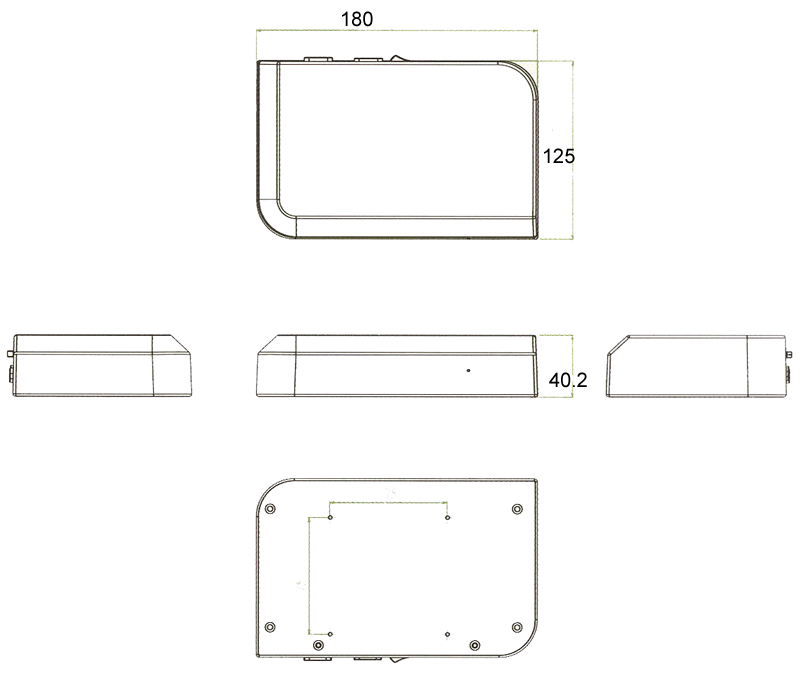

System Dimension Drawing |
Front Panel : |
LED Power Switch |
Back Panel:
( reference config. ) |
1x DC 12V-in Power Jack
1x Power Switch
1x VGA
1x Mouse
1x Keyboard
1x RJ 45 LAN Port
2x USB 2.0
|
Power : |
30 Watt external Power Supply Adapter |
Safety: |
FCC,TÜV,CE,PSE,UL,CUL,CB, CNS,CCIB,CCEE,NEMKO |
Storage: |
1 x Compact Flash Socket
1 x SATA (optional HDD kit) |
Dimension: |
40,2 mm (H) x 180,0 mm (W) x 125,0 mm (D) |
Weight: |
1 St/Karton
1,0 kg/St gross / 1,3 kg /Stnet |
Ordering Information: |
|
| |
|
| Product Code |
M/B Type |
VIA CPU onboard |
Mem. support |
LAN |
HDMI |
USB |
VGA |
Storage Support |
Power Supply |
| UN2621-00E |
3V900A-1G10S |
VIA U3500 1GHz |
1 x SODIMM up to 4GB |
1 x Realtek GbE |
Yes |
2 |
1 |
CF/ optional 2.5" HDD |
Ext. 30W |
| Product Code |
M/B Type |
VIA CPU onboard |
Mem. support |
LAN |
Serial |
USB |
VGA |
Storage Support |
Power Supply |
| UN2392-00A |
3V700A-1R10U |
C7 EDEN ULV 1GHz |
1 x SODIMM up to 1GB |
1 x Realtek 10/100 |
0 |
2 |
1 |
CF / optional 2.5" HDD |
Ext. 30W |
| UN2603-00A |
3V700D-VR50E |
C7 EDEN 500 MHz |
1 x SODIMM up to 1GB |
3 x Realtek 10/100 |
0 |
2 |
1 |
CF / optional 2.5" HDD |
Ext. 30W |
| UN2604-00A |
3V700D-VR10U |
C7 EDEN ULV 1GHz |
1 x SODIMM up to 1GB |
3 x Realtek 10/100 |
0 |
2 |
1 |
CF / optional 2.5" HDD |
Ext. 30W |
| UN2601-00A |
3V700D-CR50E |
C7 EDEN 500 MHz |
1 x SODIMM up to 1GB |
3 x Realtek 10/100 |
1 |
2 |
0 |
CF / optional 2.5" HDD |
Ext. 30W |
| UN2602-00A |
3V700D-CR10U |
C7 EDEN ULV 1GHz |
1 x SODIMM up to 1GB |
3 x Realtek 10/100 |
1 |
2 |
0 |
CF / optional 2.5" HDD |
Ext. 30W |
| Product Code |
M/B Type |
Intel CPU onboard |
Mem. support |
LAN |
Serial |
USB |
VGA |
Storage Support |
Power Supply |
| UN2701-00A |
3I270A-H16-00 |
Atom N270 1.6 GHz |
1GB DDR2 onboard |
1 x Realtek GbE LAN |
1 |
2 |
1 |
CF / optional 2.5" HDD |
Ext. 30W |
| UN2702-00A |
3I270A-000 |
Atom N270 1.6 GHz |
1 x SODIMM up to 2GB |
1 x Realtek GbE LAN |
1 |
2 |
1 |
CF / optional 2.5" HDD |
Ext. 30W |
| UN2741-00A |
3I270D-V4G-H16-00 |
Atom N270 1.6 GHz |
1GB DDR2 onboard |
4 x Realtek GbE LAN |
0 |
2 |
1 |
CF / optional 2.5" HDD |
Ext. 30W |
| UN2743-00A |
3I270D-V4G-000 |
Atom N270 1.6 GHz |
1 x SODIMM up to 2GB |
4 x Realtek GbE LAN |
0 |
2 |
1 |
CF / optional 2.5" HDD |
Ext. 30W |
| Optional Items : |
Item Name |
| SATA Set (HDD bracket + data cable + power cable) |
| Mounting Bracket |
|
|
|
|
|
