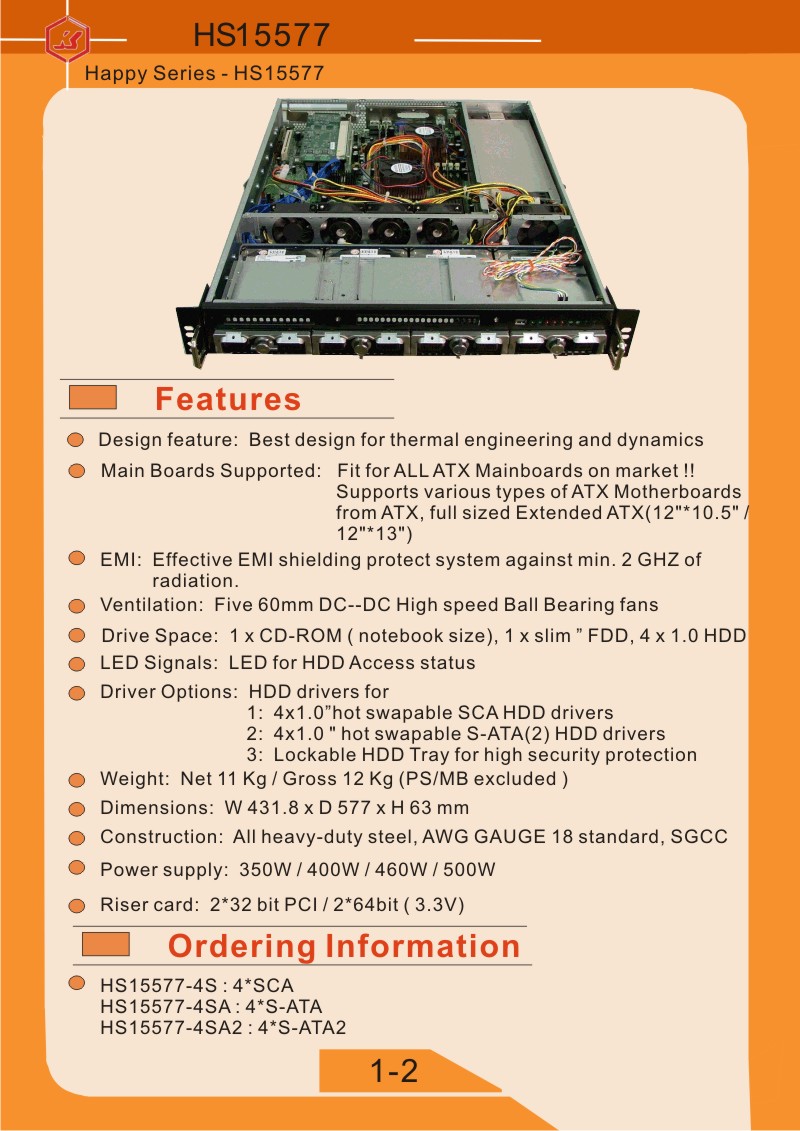

Happy Series - HS15577

put in clip photo for enlarged image

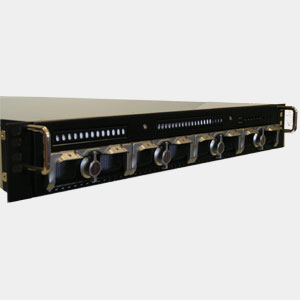

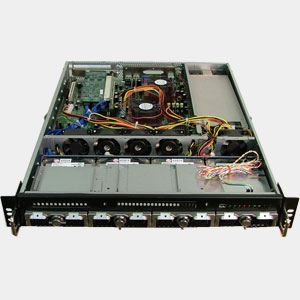

19 1.5U High Density Storage RackServer With 4x hot -Swapable HDD Trays

Design feature:

Best design for thermal engineering and dynamics

Main Boards Supported:

Fit for ALL ATX Mainboards on market !!
Supports various types of ATX Motherboards from ATX, full sized Extended ATX(12"*10.5" / 12"*13")


Effective EMI shielding protect system against min. 2 GHZ of radiation.


Five 60mm DC--DC High speed Ball Bearing fans

Drive Space:

1 x CD-ROM ( notebook size), 1 x slim FDD, 4 x 1.0 HDD

LED Signals:

LED for HDD Access status

Driver Options:

HDD drivers for

  • 4x1.0hot swapable SCA HDD drivers
  • 4x1.0 " hot swapable S-ATA(2) HDD drivers
  • Lockable HDD Tray for high security protection

Net 11 Kg / Gross 12 Kg (PS/MB excluded )


W 431.8 x D 577 x H 63 mm

Optional accessories:

TS-22-3S (Screws : 10 ø 32T)


All heavy-duty steel, AWG GAUGE 18 standard, SGCC

Power supply:

300W / 350W / 460W / 500W

Optional Riser card:   see accessories.htm

R10 : 2*32 bit PCI /  R11: 2*64bit ( 3.3V)  / R19: PCIe x 16 cable extension card

Ordering Information:
  • HS15577-4S : 4*SCA
  • HS15577-4SA : 4*S-ATA
  • HS15577-4SA2 : 4*S-ATA2
