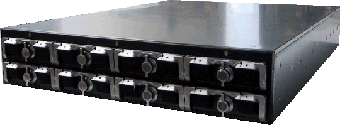

Happy Series - HS2577

put in clip photo for enlarged image

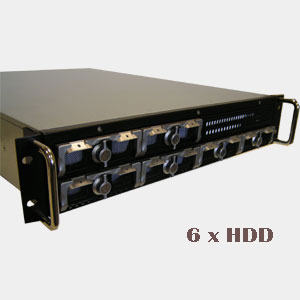

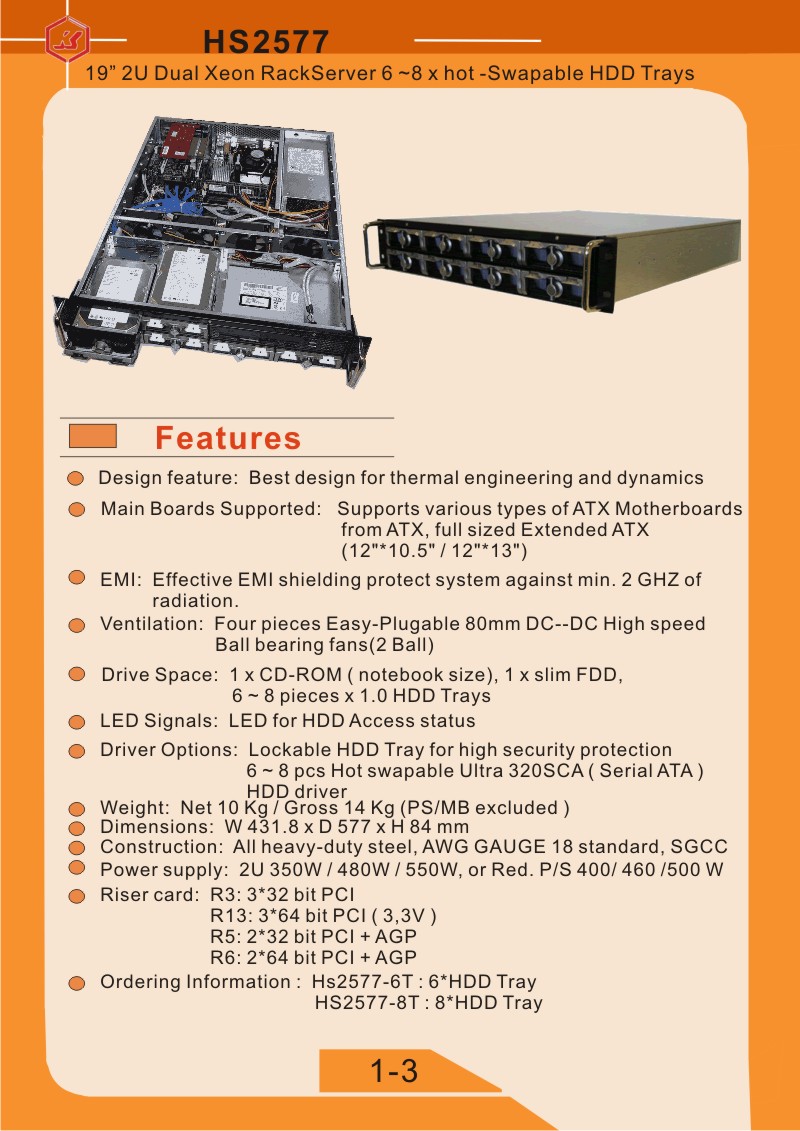

19" 2U High Density Storage RackServe rWith hot -Swapable HDD Tray

Design feature:

Best design for thermal engineering and dynamics

Main Boards Supported:

Supports various types of ATX Motherboards from ATX, full sized Extended ATX(12"*10.5" / 12"*13")


Effective EMI shielding protect system against min. 2 GHZ of radiation.


Four pieces Easy-Plugable 80mm DC--DC High speed Ball bearing fans(2 Ball)

Drive Space:

1 x CD-ROM ( notebook size), 1 x slim FDD, 6 ~ 8 pieces x 1.0 HDD Trays

LED Signals:

LED for HDD Access status

Driver Options:
  • Lockable HDD Tray for high security protection
  • 6 ~ 8 pcs Hot swapable Ultra 320SCA ( Serial ATA ) HDD driver

Net 10 Kg / Gross 14 Kg (PS/MB excluded )


W 431.8 x D 577 x H 84 mm

Optional accessories:

TS-22-3S (Screws : 10 ø 32T)


All heavy-duty steel, AWG GAUGE 18 standard, SGCC

Power supply:

300W / 550W, or Red. P/S 500 W

Riser card: (optional)


R3: 3*32 bit PCI
R13: 3*64 bit PCI ( 3,3V )

Low Profile rear window

Ordering Information:

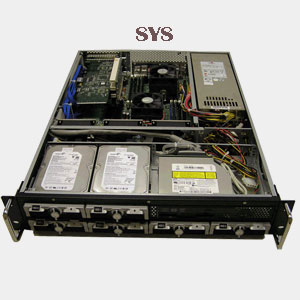

  • HS2577-6SA: 6*Serial ATA + Slim CD Rom+ Slim FDD
  • HS2577-6SA2: 6*Serial ATA + Slim CD Rom+ Slim FDD
  • HS2577-6S: 6*SCA + Slim CD Rom+ Slim FDD
  • HS2577-8SA: 8*S-ATA
  • HS2577-8SA2: 8*S-ATA
  • HS2577-8S: 8*SCA

Low Profile rear window

  • HS2577L-6SA: 6*Serial ATA + Slim CD Rom+ Slim FDD
  • HS2577L-6SA2: 6*Serial ATA + Slim CD Rom+ Slim FDD
  • HS2577L-6S: 6*SCA + Slim CD Rom+ Slim FDD
  • HS2577L-8SA: 8*S-ATA
  • HS2577L-8SA2: 8*S-ATA
