Kis Series - KIS120

put in clip photo for enlarged image

19" 1U Rack Serverwith swapable HDD Tray



Download Manual(V3.1) for KIS120/130 HERE (PDF format)

Design feature:

Best design for thermal engineering and dynamics

Adjustable Fan holder designed for 100% System cooling

1 Extra slots available for Interface card
Enviroment control card detecting up to 6 fans with alarm feature (Optional)

Main Boards Supported:

Supports various types of ATX Motherboards from flex ATX, Micro-ATX, ATX, full sized Extended ATX(12"*10.5" / 12"*13")

Supports full sized CPU Card


Effective EMI shielding protect system against min. 2 GHZ of radiation.

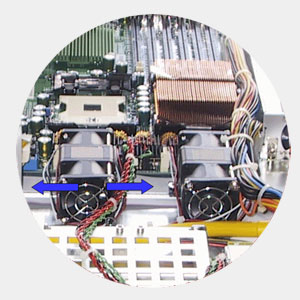

4 * 40mm DC--DC High speed Turbofans

Drive Space:

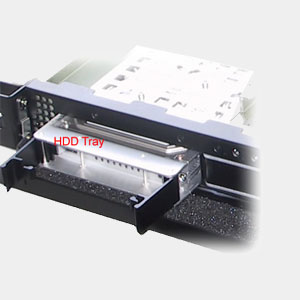

1 x slim CD-ROM , 1 x FDD, 2 x 1.0" hot swap HDD Trays

LED Signals:

5 LED for system status display or fan failure detection

Driver Options:

2 x swapable IDE (SCA) HDD drive support ATA 133

or 2 x SCA (KIS120) 2 hot swapable Ultra 320 SCA HDD driver ( OEM Model only )

or 2 x Serial- ATA hot swapable HDD Trays


Net 8 Kg / Gross 12 Kg (PS/MB excluded )

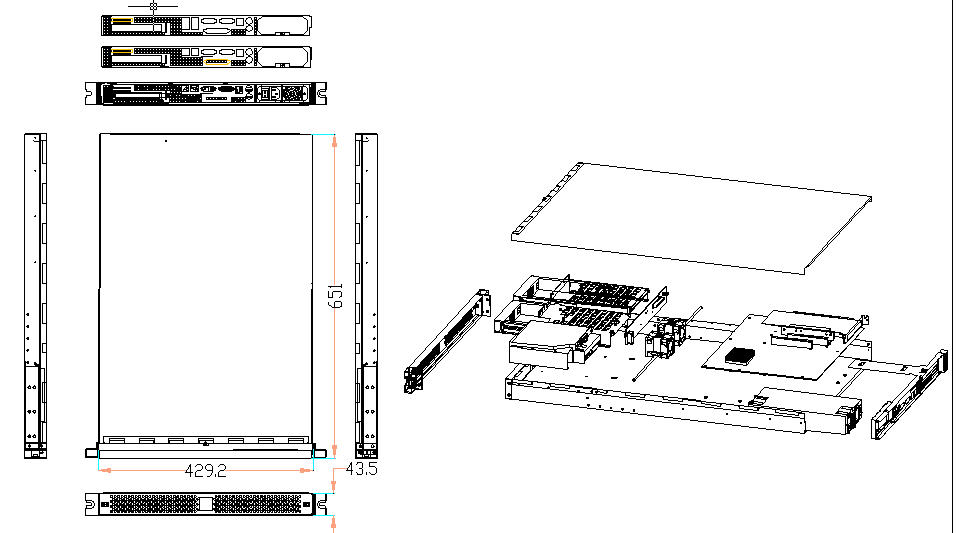

W 431.8 x D 640 x H 42 mm


Standard: JMRER1

optional :
TS-22 , 2 Section Telescope slide
TS-22-3S (Screws : M4)


All heavy-duty steel, AWG GAUGE 18 standard, SGCC

Power supply:

250w / 300w/350W/500W

Riser card: optional

R1, R12

Ordering Information:

KIS120SA :2 bays Serial-ATA
KIS120SAS :2 bay SAS HDD backplane
