Kis Series - KIS130

put in clip photo for enlarged image

19" 1U Low Profile Dual Xeon Rack Server
With front door fiter and hot swapable HDD Tray



Download Manual(V3.1) for KIS120/130 HERE (PDF format)
Download datasheet (Catalog)

Design feature:

Best design for thermal engineering and dynamics

Main Boards Supported:

Supports various types of ATX Motherboards from flex ATX to ATX full sized (12"*13") M/B

Moveable Fan holder designed to fit either small size M/B or full size M/B


Effective EMI shielding protect system against min. 2 GHZ of radiation.


Six 40mm DC--DC High speed blowerfans

Drive Space:

1 x slim CD-ROM , 1 x FDD(3.5" or slim), 2 x 1.0" HDD drivers

LED Signals:

6 green LED for system status display or fan failure detection

Driver Options:

3 x swapable HDD Trays or
3 x hot swapable Ultra 320 SCA/ SATA 2 / SAS HDD driver support(KISC130)

Enviroment control card:

detecting up to 6 fans with alarm feature


Net 8 Kg / Gross 12 Kg (PS/MB excluded )

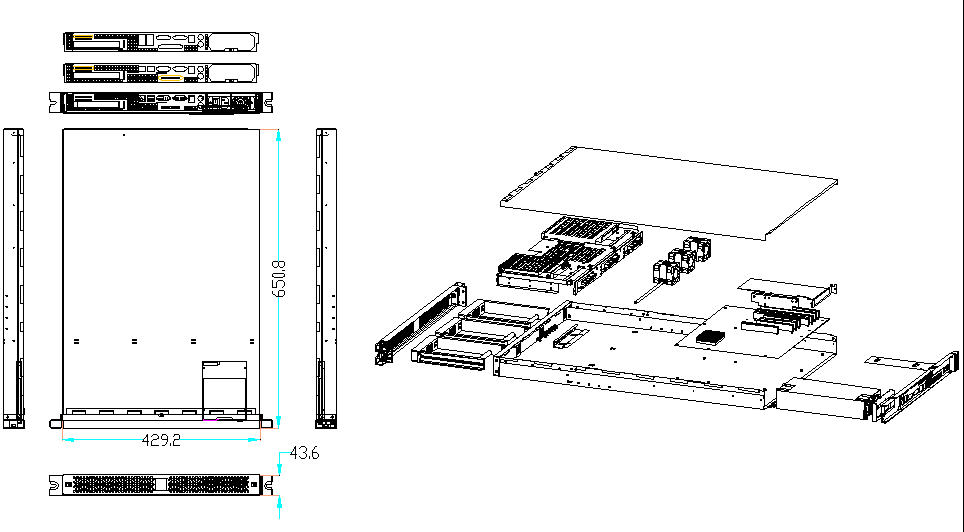

W 431.8 x D 640 x H 42 mm


standard: JM215 , JMRER1

TS-22-2S , 2 Section Telescope slide
TS-22-3S (Screws : M4)


All heavy-duty steel, AWG GAUGE 18 standard, SGCC

Power supply:

250w / 300W / 350W / 460W/ 500W

Riser card: optional

R1 , R2 , R12

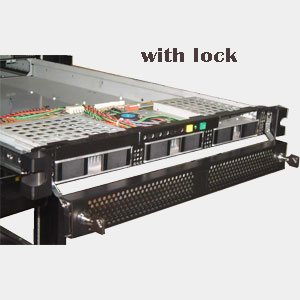

Special OEM for COM 1 with 2 * front lock click HERE for picture!

Ordering Information:

KISC130-1: 3 bays SATA / SAS, SuperMicro M/B
KISC130-2: 3 bays SATA / SAS, Tyan M/B
KISC130-3: 3 bays SATA / SAS, Gigabyte M/B
