Kis Series - KIS260 / KIS261

put in clip photo for enlarged image

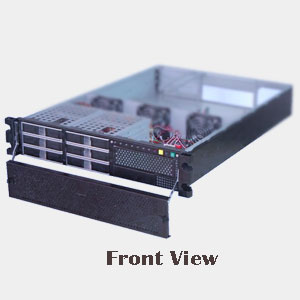

19" 2U Rack Server
with swapable HDD Tray




Download Manual(V2.1) for KIS260/261 HERE (PDF format)
Download Datasheet (Catalog) For KIS260

Download installation guide for KIS261 HERE (RMVB format)
Download Real-player HERE

Design feature:

Best design for thermal engineering and dynamics

Main Boards Supported:

Supports various types of ATX Motherboards from flex ATXto full sized ATX(12"*13") M/B


Effective EMI shielding protect system against min. 2 GHZ of radiation.


3 x 80*80 mm DC fans

Drive Space:

1 x CD-ROM, 1 x FDD, 6 x 1.0" hot swapable HDD drivers

LED Signals:

6 LED for system status display or fan failure detection

Driver Options:

6 hot swapable Ultra 320 SCA HDD drive support ( one channel )
6 IDE easy swappable HDD
6 Serial-ATA Hotswappable HDD or
6* SAS HDD driver support

Enviroment control card:

detecting up to 6 fans with alarm feature (Optional )


Net 8 Kg / Gross 12 Kg (PS/MB excluded )

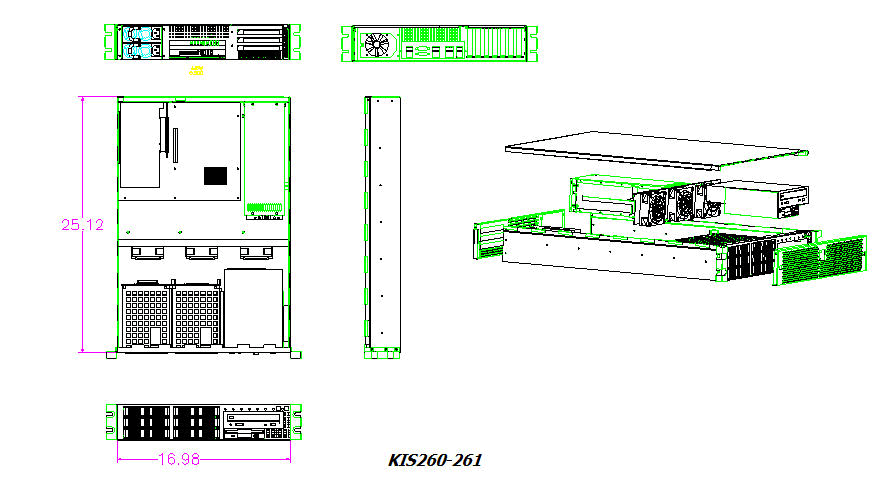

W 431.8 x D 640 x H 84mm

Optional accessories:

TS-22-2S , 2 section Telescope slide
TS-22-3S (Screws : M4)


All heavy-duty steel, AWG GAUGE 18 standard, SGCC

Power supply:

300W, 550W, redundant 500W

Riser card: ( 260 only )

R3, R13.optional

Low profile ( 261 only)

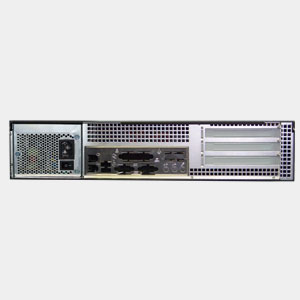

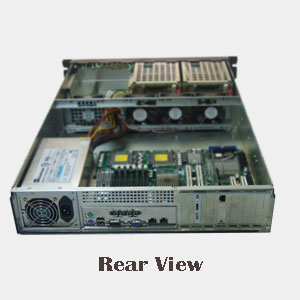

rear view picture, 7-low profile add in slot

Ordering Information:

KIS260X: Riser card rear window
KIS261X: Low Profile rear window, no HDD backplane
KIS260SA: Serial-ATA version
KIS260S:SCA Version
X Could be 1 or 2 Channel SCSI
