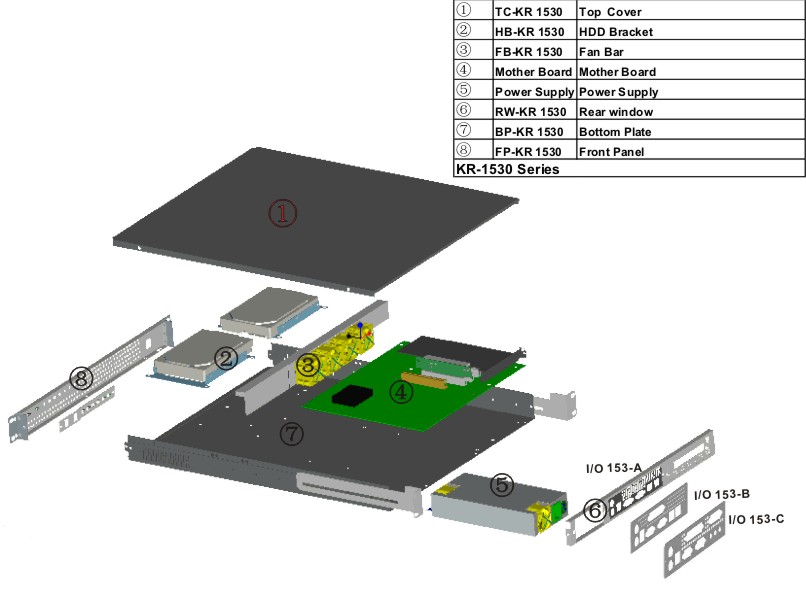

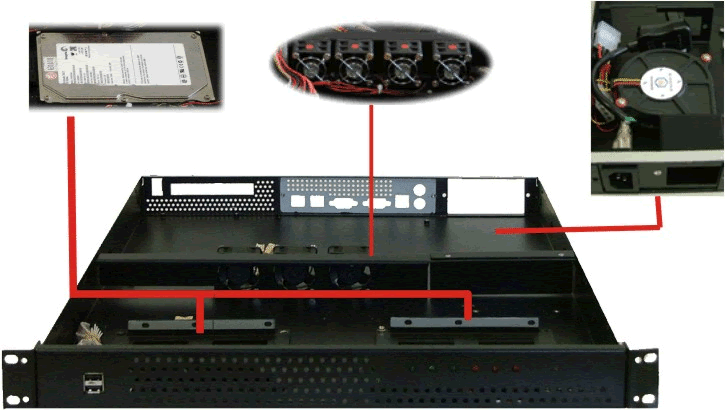

KR-1530

Industrial 19 inch 1U Rack Server chassis

Download:



Download Manual(V1.1) for KR-1530/1531/1532 HERE (PDF format)

Download installation guide for KR-1530/1531/1532 HERE (RMVB format)

Download Real-player HERE

Specifications:

Model

KR-1530

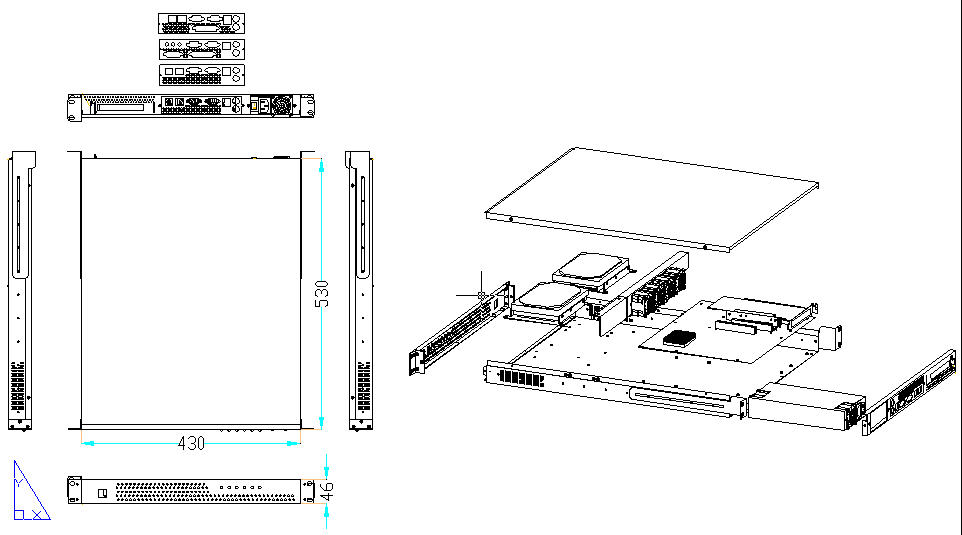

case Dimension(W*H*D)

430 x 44 x 530 mm

Main Board
12" x 10.25"(<12") / 305 x 260 mm
Driver configuration
Effective EMI shielding protect system against min. 2 GHZ of radiation.
5.25" exposed
0
3.5" hidden
2*HDD
Slim cd Rom
0
Built in System cooling fan
3
Optional Brower Fan Module
1*BFM153
Riser card
1*32 or 64 bit PCI
Rack Mounting bracket
1 Pair(rear mounting)
Controls
Power switch
1
Reset switch
1
Green LED
3
Red LED
3
Front USB
2
Available M/B I/O
SuperMicro / Tyan /Gigabyte / MSI (I/O Layout)
Power Supplies
200/250/300/350 W P/S
Construction Materials
SECC 1.0 mm Heavy duty Steel
EMI
Meets FCC / VDE Class B
Operation Temperature
0°C-50°C(32°F-122°F)
Emissions
CE/UL Compliant
Net Weight
7K Gs
Gross Weight
9 K Gs
Packing Dimesion (W*H*D)
565*175*725*mm/2.6 CBF
Packing Materials
5 ply Double export carton & PE Foam
Color
Black
Optional
Telescope slide TS-22-3S (Screws : 6 ø 32T)
