KR-1531 |
|
Industrial 19 inch 1U low cost Rack Server chassis |
|
Download Manual(V1.1) for KR-1530/1531/1532 HERE (PDF format)
Download installation guide for KR-1530/1531/1532 HERE (RMVB format)
Download Real-player HERE |
Specifications:
|
Model |
KR-1531 |

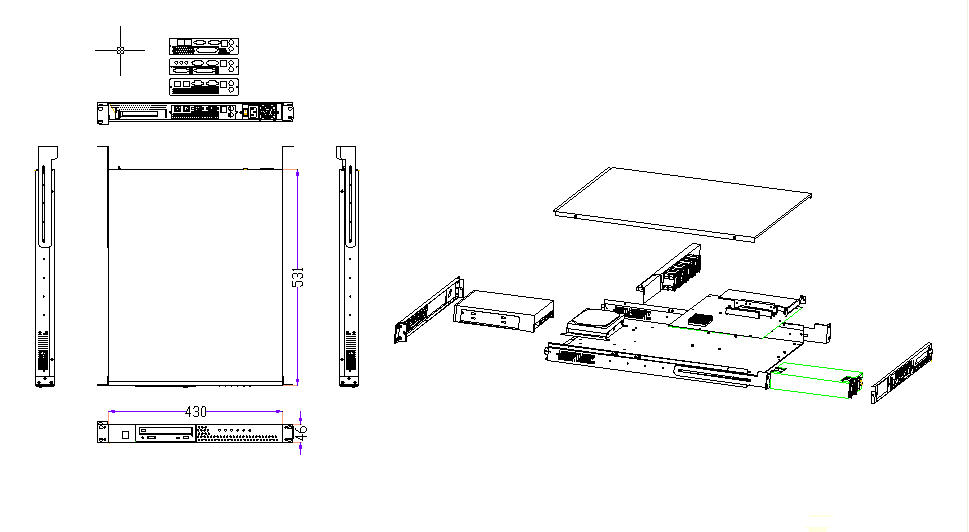

case Dimension(W*H*D)
|
430*44*530 mm
|
Main Board |
12"x10.25"(<12") / 305 x 260 mm
|
Driver configuration |
Effective EMI shielding protect system against min. 2
GHZ of radiation.
|
5.25" exposed |
1
|
3.5" hidden |
1*HDD
|
CD Rom |
1 x 5,25" CD ROM
|
Built in System cooling fan |
3
|
Optional Brower Fan Module |
1*BFM153
|
Riser card |
1*32 or 64 bit PCI
|
Rack Mounting bracket |
1 Pair(rear mounting)
|
Controls |
Power switch |
1
|
Reset switch |
1
|
Green LED |
3
|
Red LED |
3
|
Front USB |
2
|

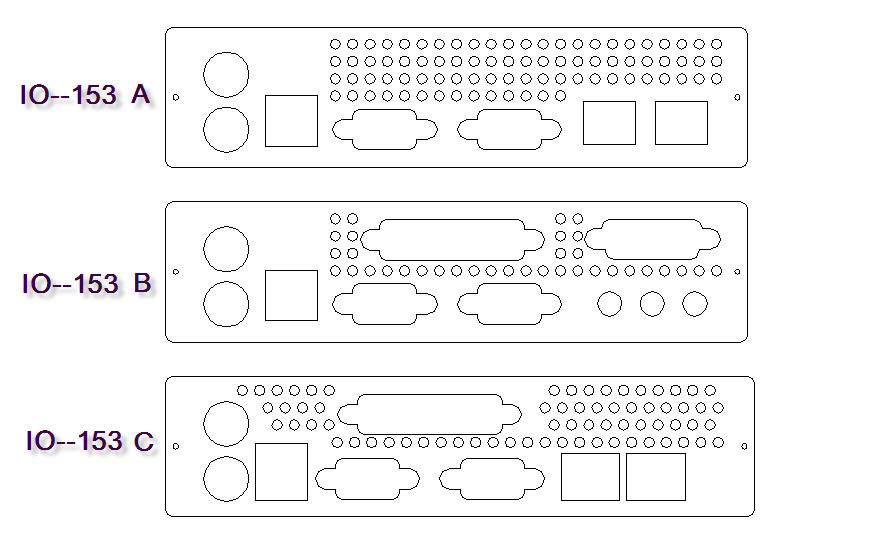

Available M/B I/O |
|
Power Supplies |
200/250/300/350 W P/S
|
Construction Materials |
SECC 1.0 mm Heavy duty Steel
|
EMI |
Meets FCC / VDE Class B
|
Operation Temperature |
0°C-50°C(32°F-122°F)
|
Emissions |
CE/UL Compliant
|
Net Weight |
7K Gs
|
Gross Weight |
9 K Gs
|
Packing Dimesion (W*H*D) |
565*175*725*mm/2.6 CBF
|
Packing Materials |
5 ply Double export carton & EP Foam
|
Color |
Black
|
Optional |
Telescope slide TS-22-3S (Screws : 6 ø 32T)
|
