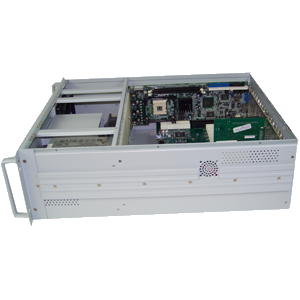

19" 4U 20-slot FA Chassis

put in clip photo for enlarged image
Design feature:
  • Best design for thermal engineering and dynamics
  • 20-slot backplane application
  • Quick and easier replacement air filter.
  • Front installed PS2 Power supply
  • All heavy-dutyCold rolled Electroplated steel, AWG GAUGE 18 standard, SECC
  • PS2 power supply supported

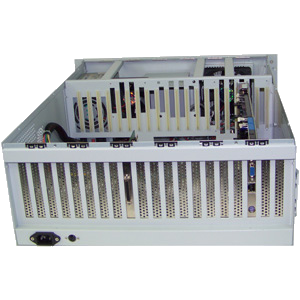

  • AC inlet rear connection

Effective EMI shielding protect system against min. 3 GHZ of radiation.


1 x 120mm DC--DC High speed Ball bearing  fan in Front plus 1 x 80mm DC-DC High speed ball bearing fan in middle

Drive Space:

1 x 3.5" Floppy , 3 x 3.5" HDD driver spaces

Control & LED Signals:

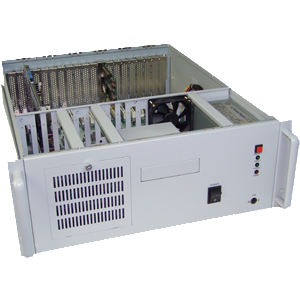

Power & reset switch, HDD , Power LED

Backplanes Supported:

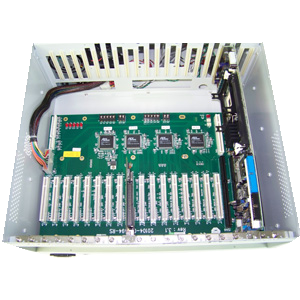

Supports 20-slot backplane


Net 12.5 Kg / Gross 16.5 Kg ( PS / backplane excluded )

  • W431 x D 557 x H 175 mm ( Chassis )
  • W575 x D735 x H 310 mm ( Carton Packing ) , i.e.4.63 cubic feet
Optional accessories:
Power supply:

550W( 550P-AD, 550EAJ ) ./ 620W . PS2 size P/S

Chassis Ordering Information:
  1. KR420
  2. TS-22-3S
  3. Power supply
