KR Series - WMF810 Wall Mount Chassis

Datasheet and Mechanic Drawing

WMF810 Manual V2.2

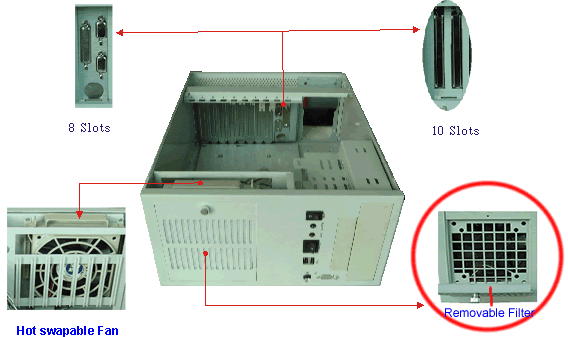

Slots:

8 slots or 10 Slots full size wall mount chassis

Backplane supported:

BP8S, IP8S,PCI-8S , BP10S, IP10S,PCI-10S , PCI-10S2

Filter:

easy removable and washable filter

Ventilation:

one 12 cm Hot swapable cooling fan with air filter

Drive Space:

1x5.25", 1 X3.5" & 1x3.5" HDD (Internal)

Dimensions:

330(H)x 175(W)x 412(D) mm

Power supply:

Standard PS2 ATX power supply, or PS2 redundant power supply

Construction:

All heavy-duty steel, AWG GAUGE 18 standard, SECC

Option:

Standard built in ATX power switch, option AT power switch ( order product code SW-R-810-001 )

OEM reference color

Pic download

order information

WMF810
