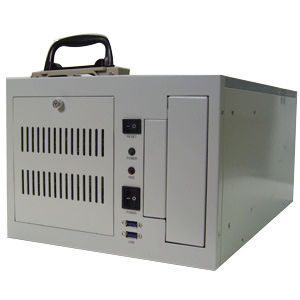

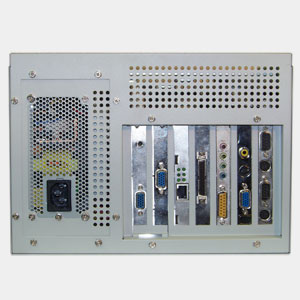

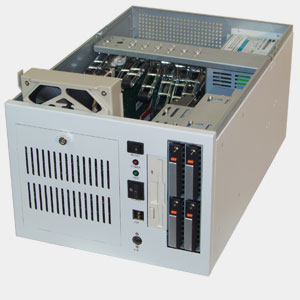

WMF567 (V3.1) Wall Mount Chassis

put in clip photo for enlarged image
Customs Tariff code

84733080

Construction

Heavy duty steel, SECC

Color

RAL7035 light gray

Driver Bays

  1. External: 1 x 5.25" + 1 x 3.5"
  2. Internal: 1 x 3.5"

Slots

Add in slots 5~7 slots

Air filter

Replaceable air filter in front

Indicatiors

Power, Lan , HDD

Switch

Power on/off x 1 , system reset x1

Connector

Two USB 3.0 ports & one keyboard conn. on Front

Ventilation

1 x 120mm DC--DC High speed Ball bearing 4 Pin PWM(MTBF> 60,000 hours)., Hot swappable fan(2 Ball) in Front( see picture ) with air filter ; Hot swappable fan video demo

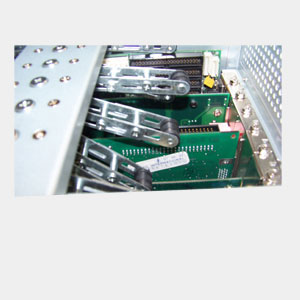

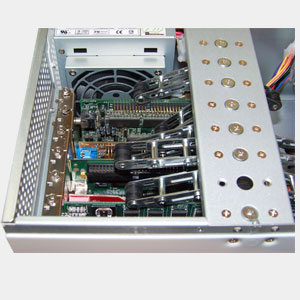

Card retainer

PCI & ISA add-in-card applicable, anti-vibration with Flexiable sliding holding & Zero difference card holding device, standard built in 3 pcs card holding Clamps (CHC4450)

Backplane

IEI PICMG 1.3 / 1.0 ,  5~7 Slots backplane supported. IMPORTANT:depending on Revision of Chassis and Backplane Mechanical reworks needed to reach 100% Compatibility. Pls contact Sales representive for details.

IEI reference backplane:

  1. PICMG1.3 : PE-5S, PE-5S2, PE-6S, PE-6S2, PE-6S3, PE-7S, PE-7S2
  2. PICMG 1.0  : PCI-5S, PCI-5S2, , PCI-6S, PCI-7S, , IP-5S2, IP-5SA, IP-5SA2, IP-6S, IP-6SA, IP-7S, IP-7SA ,  BP--5S, BP-6S, BP-7S,  HPE-5S1, HPE-5S2, HPE-5S3, HPE-6S1, HPE-6S2, HPXE-6S1, HPE-7S1

Power supply

  1. SFX P/S :
  2. Standard PS 2 P/S( 150x86x140mm)300W/ 460W / 500W PS2 size P/S
  3. PS2 size redundant Power supply : MRT-6320P , MRP-6420P, MRW-6420P, MRG-6500P, R3G-6650P

Weight

Net 7.15 kgs, Gross9.5 kgs

Dimension

W270 x D420 x H 195 mm

Carton & packing

5 ply export carton ( W420 x D581 x H355 mm, 3.06 CBF), PE Foam system packing

Accessories

WMF-FT01(wall mount kits)

Optional :

  1. CDFD-combo-V4
  2. M14T
  3. AVK428:  Anti-shock / vibration kits

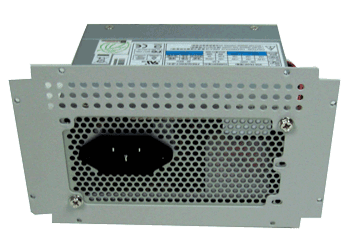

  4. MPA04: SFX Power supply Mounting plate
  5. anti-vibration add-in card holding clamp(CHC4450)
  6. backplane

Order information

  1. WMF567( version 3 ) Wall mount chassis
  2. MPA04 SFX Power supply Metal plate
  3. Power supply Chose one from SFX , PS2 or mini redundant PS
  4. CDFD-combo-V4
  5. M14T
  6. AVK428
  7. CHC4450: anti-vibration add-in card holding clamp

Download

Datasheet[Format:PNG]
Mechanic drawing[Format:JPG]
Manual [Format:PDF]
