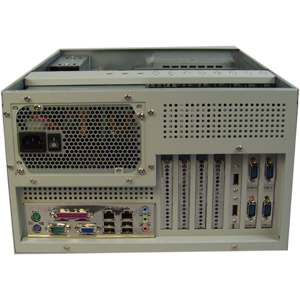

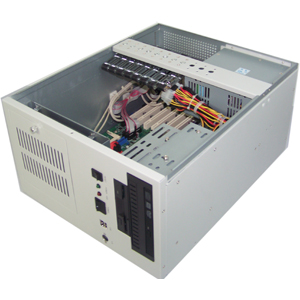

WMF810ATX Wall Mount Chassis

put in clip photo for enlarged image

What's new in WMF810ATX




Construction

Heavy duty steel, SGCC

Color

RAL7035 light gray

Driver Bays

  1. External: 1 x 5.25" + 1 x 3.5"
  2. Internal: 1 x 3.5"

Slots

7 x add in slots

Air filter

Replaceable air filter in front

Indicatiors

Power, Lan , HDD

Switch

Power on/off x 1 , system reset x1

Connector

Two USB ports & one keyboard conn. on Front

Ventilation

1 x 120mm DC--DC High speed Ball bearing 4 Pin PWM(MTBF> 60,000 hours)., Hot swappable fan(2 Ball) in Front( see picture ) with air filter ; Hot swappable fan video demo

Card retainer

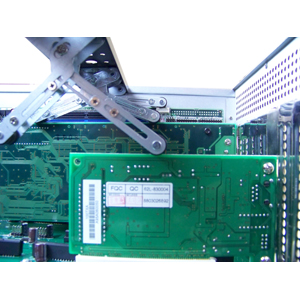

PCI & ISA add-in-card applicable, anti-vibration with Flexiable sliding holding device, standard built in 3 pcs card holding Clamps (CHC4450)

Main board

ATX format, 12" x 9.6" MB

Power supply

  1. SFX P/S :
  2. Standard PS 2 P/S( 150x86x140mm)300W/ 460W / 500W PS2 size P/S
  3. PS2 size redundant Power supply : MRT-6320P , MRP-6420P, MRW-6420P

Weight

Net 7.75 kgs, Gross 9.35 kgs

Dimension

  • W331 x D418 x H 200 mm
  • carton packing : 530 x 440 x 310 mm, 2.56 CBF

Carton & packing

5 ply export carton ( W440 x D530 x H310 mm, 2.56 CBF), PE Foam system packing

Accessories

WMF-FT01(wall mount kits)

Option:
  1. tandard built in ATX power switch, option AT power switch ( order product code SW-R-810-001 )
  2. MPA04: SFX Power supply Mounting plate
  3. DFD-combo-V4
  4. M14T
  5. AVK428: Anti-shock / Vibration kits
  6. anti-vibration add-in card holding clamp(CHC4450)

Order information

  1. WMF810ATX wall mount chassis
  2. SFX MPA04 SFX Power supply Metal plate
  3. Power supply Chose one from SFX, PS2 or mini redundant PS
  4. CDFD-combo-V4
  5. M14T
  6. AVK428
  7. CHC4450: anti-vibration add-in card holding clamp
