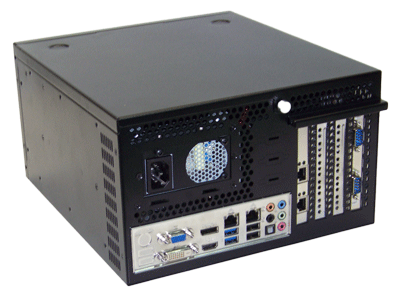

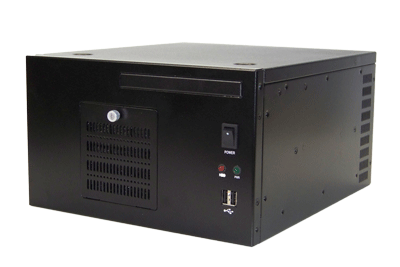

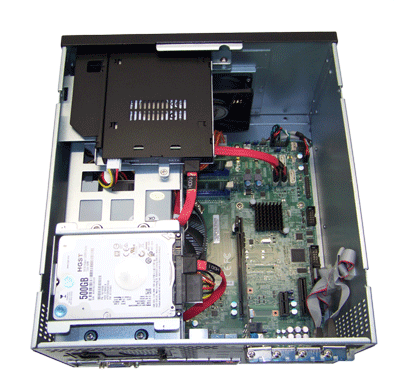

WMS293_V1 Wall Mount Chassis
Industrial Tower chassis
put in clip photo for enlarged image
Download
Datasheet[Format:PNG]
Mechanical drawing[Format:JPG]
Maunual [Format:PDF]
Slots:

4 slots full size Wall mount chassis

Main board:

Micro ATX format, 9.6 x 9.6 MB

Filter:

easy removable and washable filter

Ventilation:
1 x 80 mm DC--DC High speed Ball bearing 3 Pin
Drive Space:

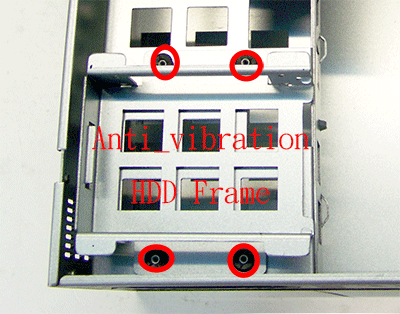

1x slim DVD , 2 x 3.5" HDD (Internal, anti-vibration Franme)

Dimensions:

155(H) x 262(W) x 293 (D) mm

Weight:

Net weight: 4,5 kg / Gross weight:6 kg

Carton & packing

5 ply export carton ( W395 x D423 x H295 mm, 1,72 CBF), PE Foam system packing

Power supply:
1U Flex P/S
Construction:

All heavy-duty steel, AWG GAUGE 18 standard, SGCC

Option:
  Standard built in ATX power switch, option AT power switch ( order product code SW-R-810-001 )
Accessories:

WMS-FT01(wall mount kits)

Order information
1.  WMS293
Micro ATX short form wall mount chassis
3.  Power supply
1U flex power supply
