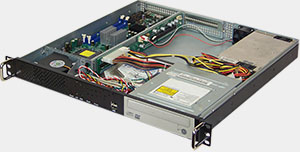

IPC1440MB

19" 1U PICMG 1.3 CPU card backplane FA Chassis

1440MB

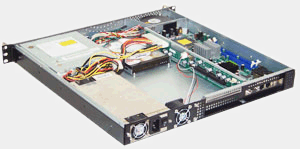

Backplane installed

1440MB



Design feature:
  • Best design for thermal engineering and dynamics
  • easy installation
Construction:
  • All heavy-dutyCold rolled Electroplated steel, AWG GAUGE 18 standard, SGCC
  • 1U or power supply supported
EMI:

Effective EMI shielding protect system against min. 3 GHZ of radiation.

Ventilation:

one 75*75*28 mm DC--DC High speed Ball bearing 3 Pin blower fan ( Ball bearing ) in Front , and one 40*40*28 mm ball bearing fan in rear

Drive Space:

1 x 5.25", 1 x 3.5" HDD driver spaces

LED Signals:

HDD , Lan , Power picture

Backplane Supported:

PICMG 1.3 ( PE-2SD1, PE-2SD2 ) butterfly backplane ( Standard IEI backplane) ;

Weight:

Net 4.3 Kg / Gross 5.9 Kg (PS/MB excluded )

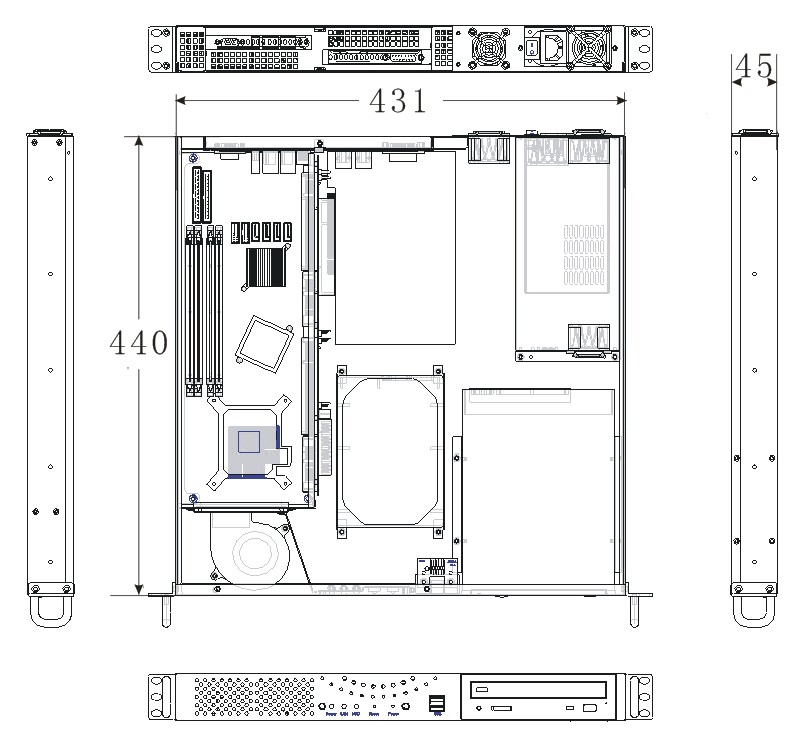

Dimensions:
  • W431 x D 440 x H45 mm ( Chassis )
  • W 570 x D 555 x H 146 mm ( Carton Packing ) , i.e.1.63 cubic feet
Optional accessories:
Power supply:

250W / 300W one U size PS

Chassis Ordering Information:
  1. IPC1440MB
  2. TS-22-3S
  3. Power supply
  4. CDFD-combo
  5. backplane: PE-2SD1 or PE-2SD2
Download

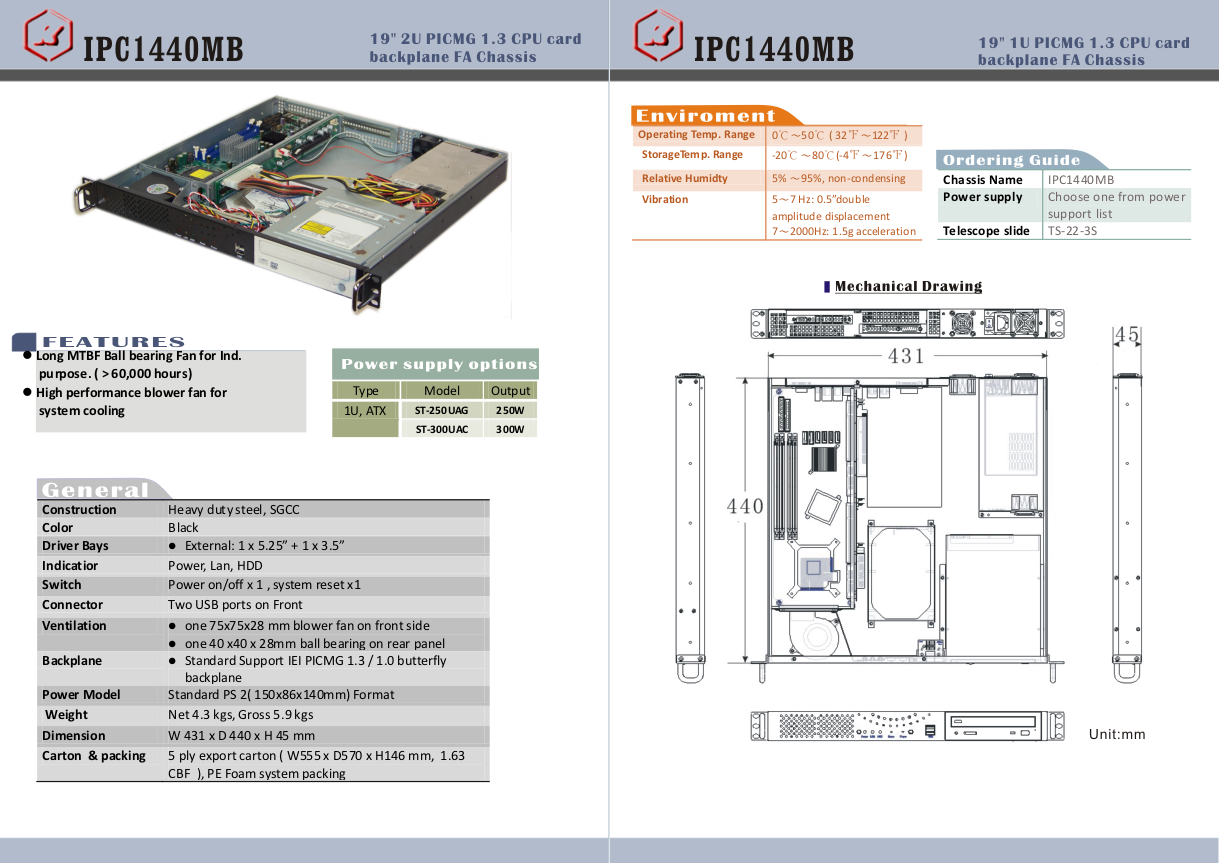

  1. Datasheet
  2. Mechanic Drawing
  3. IPC1440MB Manual
