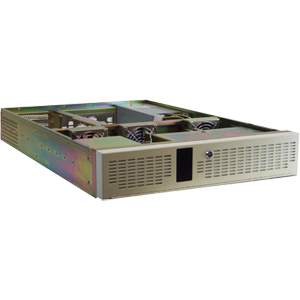

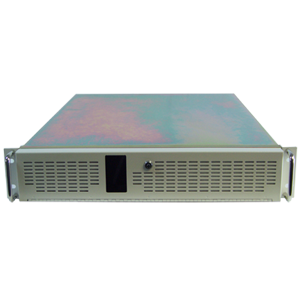

Heros Series - IPC 202

19" 2U Chassis for 12" x 13" ATX MB

With easy replacment HDD Tray

put in clip photo for enlarged image
Design feature:

Positive air design to regulate the ventilation direction
Distributed fan locations to minimize the dead air areas
Pre-arranged cable routines to smooth ventilation directions
Provides the maximum number of drive bays without blocking the inhale flow paths
Easy mounting of PCI riser set and card cramping mechanics

Main Boards Supported:

Support ATX, Micro-ATX, 12" x 13"full size MBs


Effective EMI protecting system against 2 GHz radiation and above radiation.


Three 8cm DC fans as standard

Drive Space:

1 x 5.25" half height bays, 1 x 3.5" FDD, 4 x 1.0" easy replacement HDD trays

LED Signals:

4 green LED for system status display or fan detection


10 Kg Net / 11Kg Gross (PS/MB excluded )


W 431.8 x D 644 x H 84 mm

Optional accessories:



All heavy-duty steel, AWG GAUGE 18 standard, SGCC

Power supply:


riser card

R10 , R11, R19 ( see accessories )
