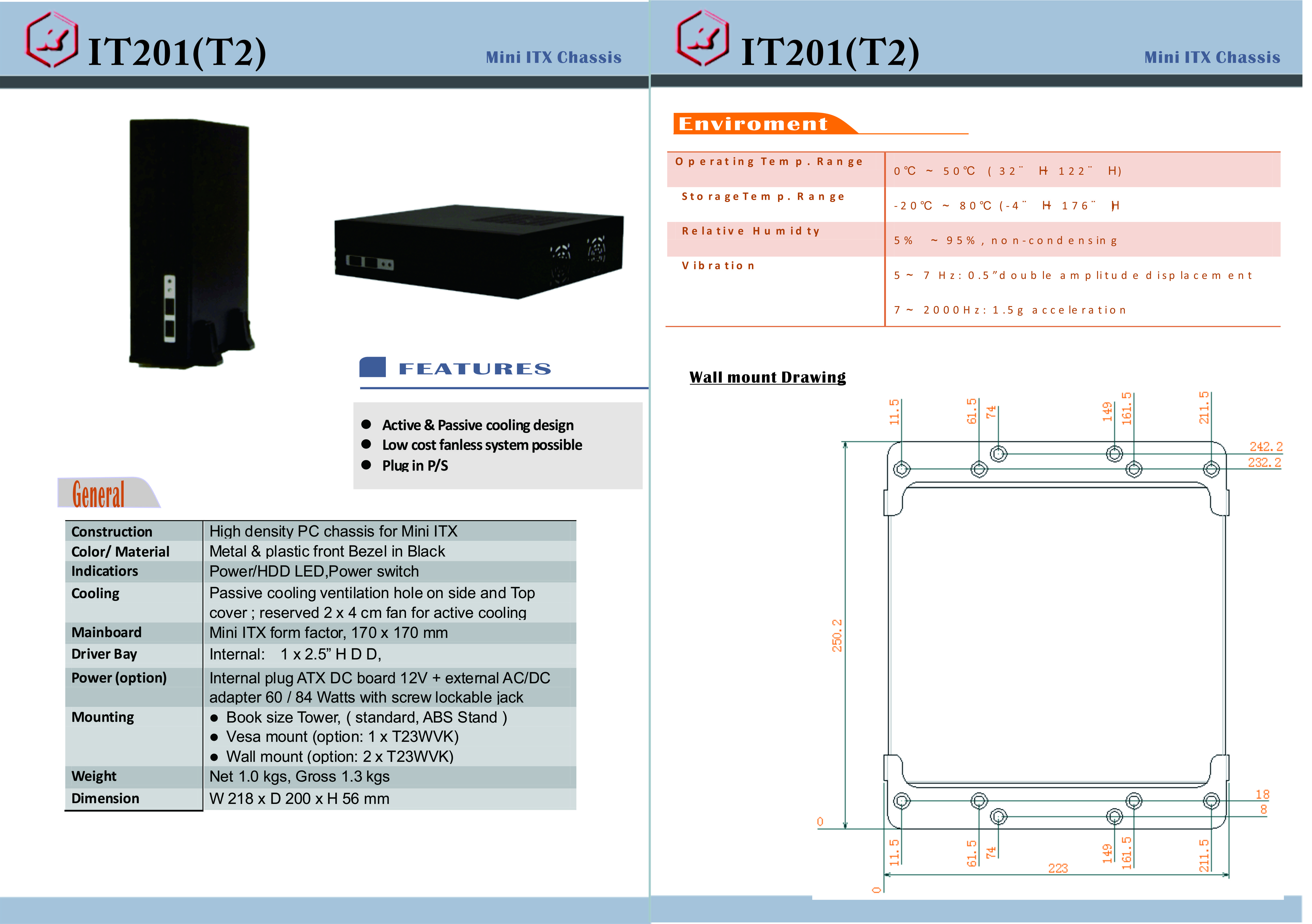

  1. Datasheet

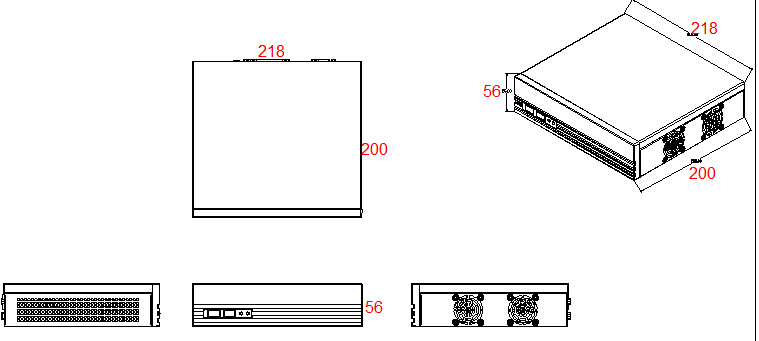

  2. Mechanic Drawing
  3. Wall Mount drawing
Safety Certificates
Safety report
Design feature:
  • Low cost Mini-ITX solution
  • High efficency > 85%
Construction:
  • All heavy-dutyCold rolled Electroplated steel, AWG GAUGE 18 standard,
Material
  • Front Bezel: ABS
  • Stand: ABS
  • Metal ; SECC , thickness 0.8 mm
Cooling
2x 40 mm fan ( optional )
Drive Space:
1 x 2.5" HDD driver space
LED Signals:

HDD , Power

Cable set
Screw lockable cable: Female screw connector with lockable function for 12 V DC input to main board. ( Scrlc-01 ) If DD84LF is in use, then no need for this cable.
Mainboard Supported:

Standard 170 x 170 mm Mini ITX mainboard

Mounting
  • Desktop ( standard acc. -- ABS stand )
  • Wall Mount kits(optional acc.-T23WVK x 2)
  • Vesa Mount Kits (T23WVK x 1 ) ( optional acc. ) picture
Weight:
  • Net 1.0 Kg / Gross 1.3 Kg (PS/MB excluded )
  • Net 5 kgs / Gross7.2 kgs ( 5 pcs )
Dimensions:
  • W218 x D 200 x H 56 mm ( Chassis )

Box packing

  • W290 x D 270 x H 120 mm ( inner boxPacking ) , i.e.0.332 cubic feet

Carton packing ( 5 pcs / carton )

  • W 610 x D 290 x H 310 mm i.e.1.94 cubic feet
Power supply: ( optional )
  • AD board: 1. AD84LM - 84W input AC -DC converter adapter with screw lockable power jack( Ø 5.5 / Ø 2.5 ) ; 2. AD84M4PP24: 84 Watts 4 pin AC adapter , 12V input in Pin 2 & pin 4,for IEI Kino mini ITX Main board
  • DD board : DD84LF- Plug-in PS, 24-pin plug-in ATX connector size power supply
Chassis Ordering Information:

T2 : Chassis

Accessories order information
  1. AC power cord
  2. AD84LM: 84 Watts AC adapter( Lockable ) ( I3 / I5 / I7 CPU )with screw locka,ble power jack( Ø 5.5 / Ø 2.5 )
  3. AD84M4PP24: 84 Watts 12V input 4 pin AC adapter , for IEI Kino Mini ITX Main board
  4. DD84LF: 84 Watts DC adpter
  5. F2X410 : ball bearing fan fan set with screw
  6. T23WVK: Wall mount need 2 pcs / half Vesa monut only 1 pcs
  7. Scrlc-01 : Screw lockable cable
  8. 155A915ZRPW: CPU cooler for T2 /T3
