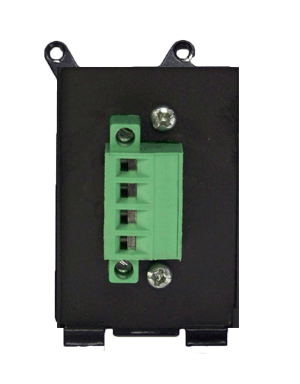

Screw lockable power Jack

100DOF
Download

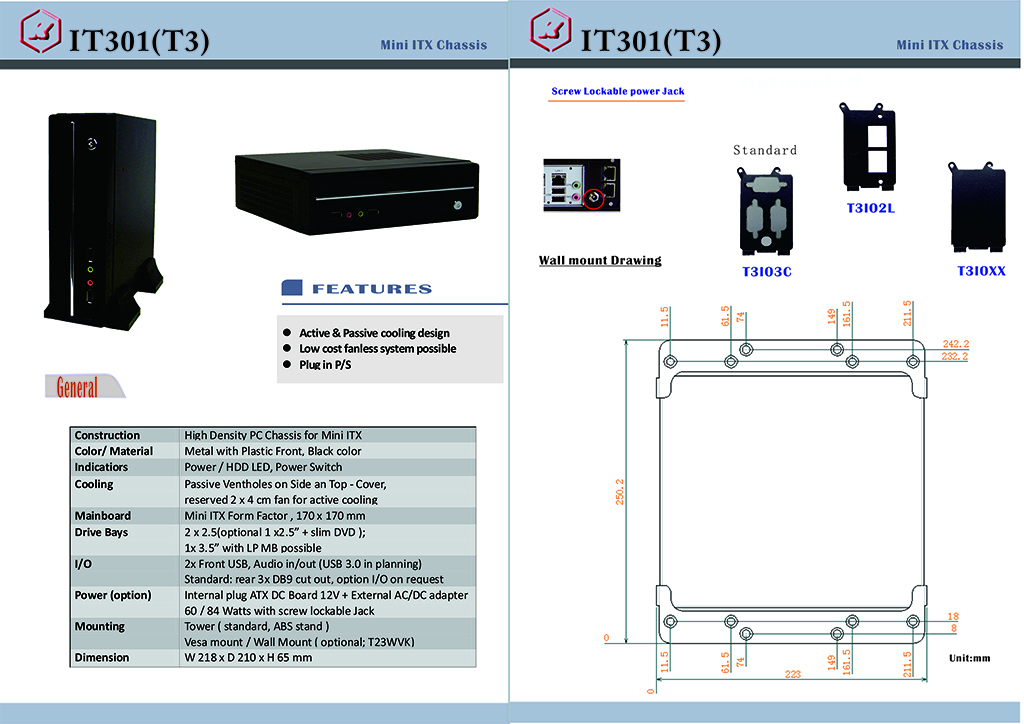

  1. Datasheet

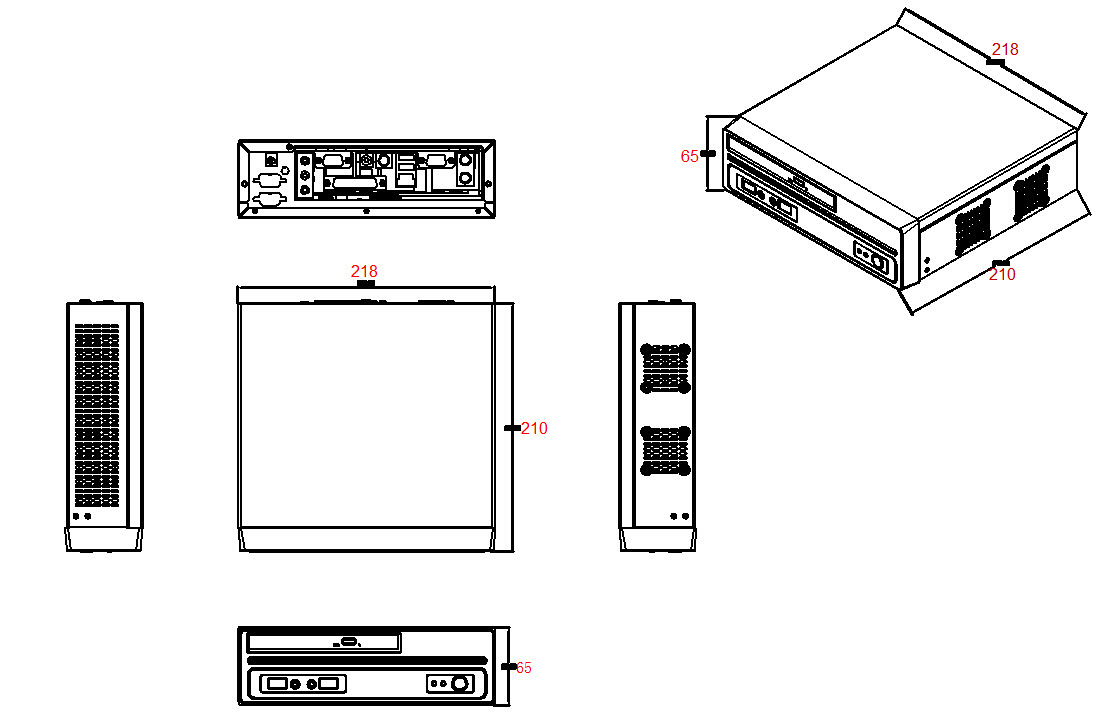

  2. Mechanic Drawing

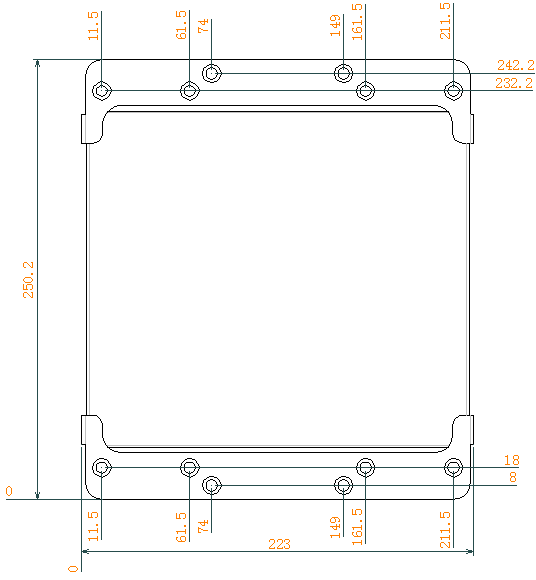

  3. Wall Mount drawing
Safety Certificates
Safety report
Design feature:
  • enable a low cost fanless Mini-ITX solution possibilities
  • cable friendly , easy installation
  • High efficency > 85%
Construction:
  • All heavy-duty Cold rolled Electroplated steel, AWG GAUGE 18 standard
Material
  • Front Bezel: ABS
  • Stand: ABS
  • Metal ; SECC , thickness 0.8 mm
USB

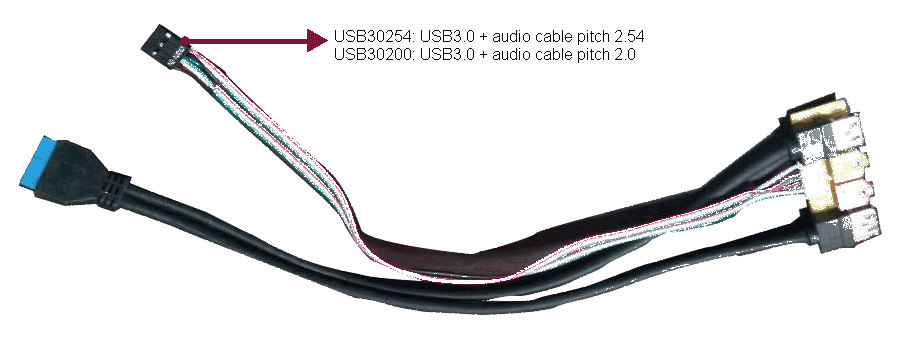

Standard USB 2.0; Optional USB 3.0( order 1. USB30254 -- USB 3.0 plus picth 2.54 HD audio cable 2. USB30200-- USB3.0 plus picth 2.0 HD Audio cable) ( Pitch 2.54 -- 2.0 Photo )
Audio port
HD audio
Cooling

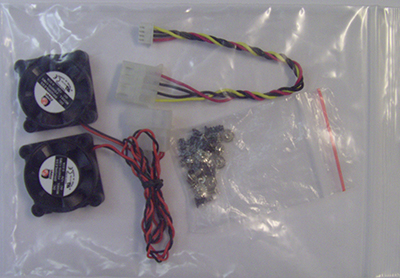

2x 40 mm ball bearing fan fan set with screw , F2X410 ( optional )
Drive Space:
1x slim DVD, 1 x 2.5" HDD driver spaces
LED Signals:

HDD , Power

Cable set
  1. Audio & USB cable set standard pitch 2.54 option pitch 2.0 ( AUSB200 )( Pitch 2.54 -- 2.0 Photo )
  2. Option: Screw lockable cable: Female screw connector with lockable function for 12 V DC input to main board ( Scrlc-01 ) Whenever the following application, then no need for this cable:
  • If DD84LF is in use
  • User taking directly DC on board



Mainboard Supported:

Standard 170 x 170 mm Mini ITX mainboard

Mounting
  • Desktop ( standard acc. -- ABS stand )
  • Wall Mount kits(optional acc.-T23WVK)

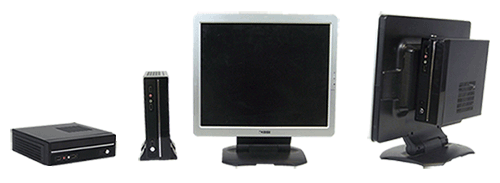

  • Vesa Mount Kits (T23WVK ) ( optional acc. ) picture
Weight:
  • Net 1.3 Kg / Gross 1.6 Kg (PS/MB excluded )
  • Net 6.5 kgs / Gross 8.8 kgs ( 5 pcs )
Dimensions:
  • W218 x D 210 x H 65 mm ( Chassis )
  • W280 x D 270 x H 170 mm ( inner boxPacking ) , i.e.0.454 cubic feet
  • W 890 x D 290 x H 310 mm (outside packing 5 boxes in one carton ) i.e.2.83 cubic feet
Power supply: ( optional )
  • AD board(AD84LM): 84W input AC -DC converter adapter with screw lockable power jack ( Ø 5.5 / Ø 2.5 )
  • AD84M4PP24: 84 Watts 4 pin AC adapter , 12V input in Pin 2 & pin 4,for IEI Kino mini ITX Main board
  • DD board(DD84LF) : Plug-in PS, 24-pin plug-in ATX connector size power supply

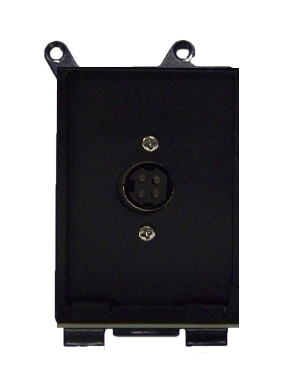

IO plate( optional )

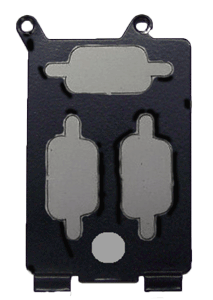

  1. T3IO3C : 3 x com ( Standard delivery)

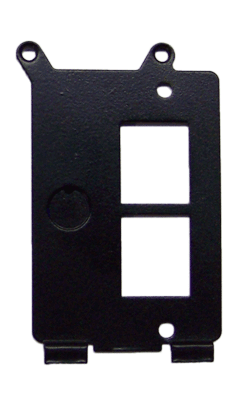

  2. T3IO2L : 2 x Lan port ( design for MEC-Lan-M002)
  3. VGA ( available soon )
  4. DVI ( available soon )
  5. HDMI ( available soon )
Chassis Ordering Information:

T3 : Chassis

Accessories order information
  1. AC power cord

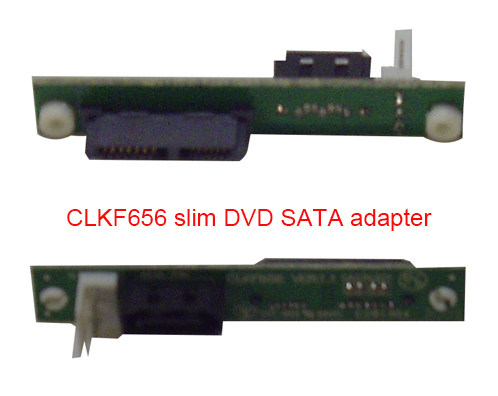

  2. CLKF656 : slim DVD adapter
  3. AD84LM: 84 Watts AC adapter( Lockable ) ( I3 / I5 / I7 CPU )with screw lockable power jack( Ø 5.5 / Ø 2.5 )
  4. AD84M4PP24: 84 Watts 12V input 4 pin AC adapter , for IEI Kino Mini ITX Main board
  5. DD84LF: 84 Watts 24-pin ATX Plug-in PS DC adpter
  6. USB 3.0 cable set ( USB30254 or USB30200 )
  7. F2X410 : ball bearing fan fan set with screw
  8. T3IO2L : 2 x Lan port IO plate for MEC-Lan-M002
  9. T23WVK : Wall mount need 2 pcs / half Vesa monut only 1 pcs
  10. AUSB200: Audio & USB 2.0 cable set ( pitch 2.54--> pitch 2.0 )
  11. Scrlc-01 : Screw lockable cable
  12. 155A915ZRPW: CPU cooler for T2 /T3
