DM-F19A

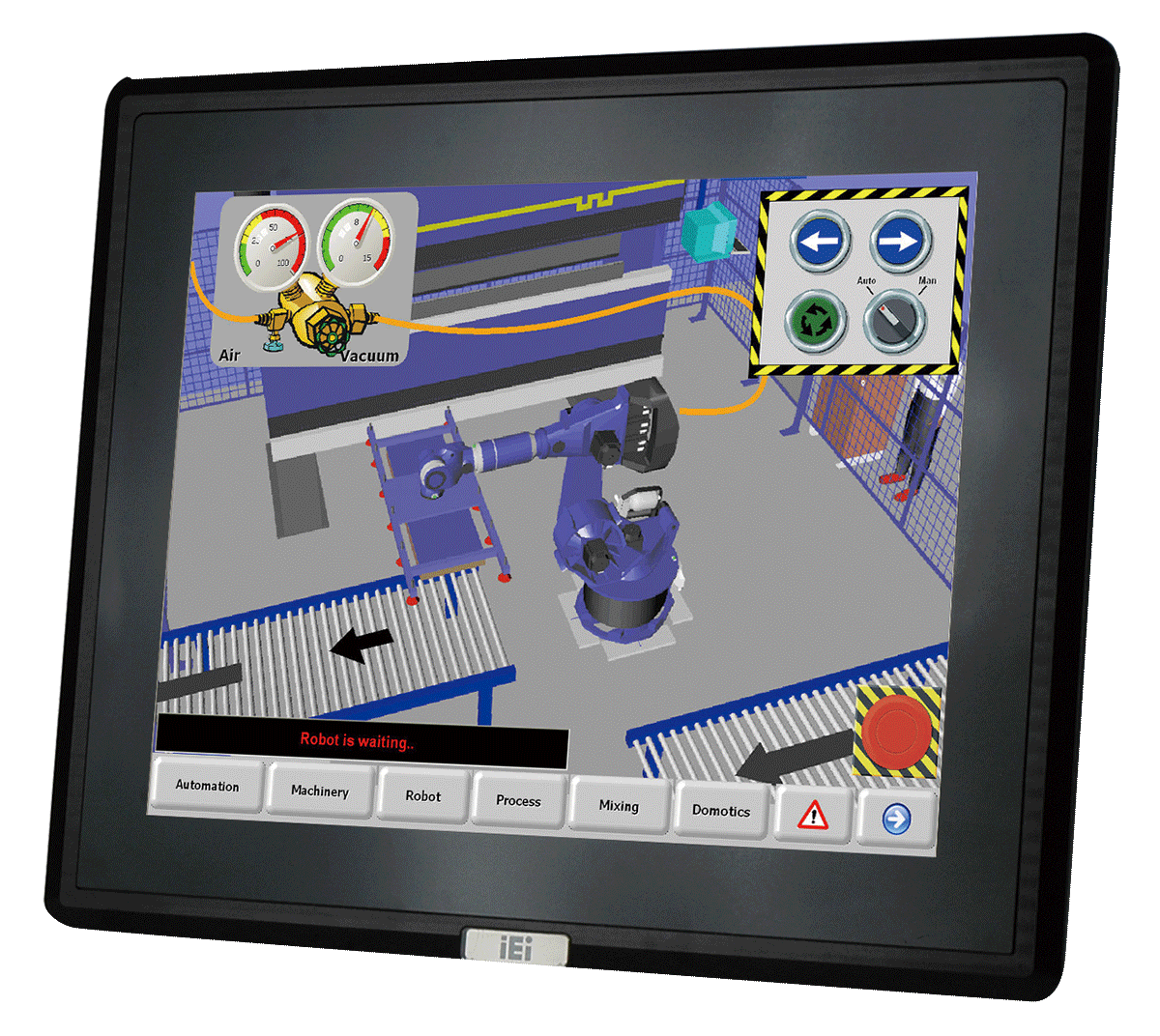

19”DM-F IP65 Industrial Monitor

DM-F12A

Large Pic | Catalog

Features

● Robust IP65 aluminum front bezel
● Aesthetic ultra-thin bezel for seamless panel mount installation
● Wide range 9V~36V DC input
● DVI / DisplayPort / VGA flexible video input solution
● Projected capacitive multi-touch and resistive single touch options
● Wide temperature support

Specifications

Spec Item Description
Display LCD Size 19”(4:3)
Brightness(cd/m2) 350
Max Resolution 1280 (W) x 1024 (H)
Contrast Ratio 1000:1
Backlight MTBF(hrs) 50000
I/O Interface I/O Ports and Switches 1 x VGA (DB-15)
1 x DVI
(F19A only)
1 x HDMI(F17A only)
1 x DisplayPort1.1
1 x USB 2.0 (touch)
1 x RS-232 (reserved for resistive touch ATO)
1 x Lockable 12V DC jack
1 x 9V-36V terminal block
Power Power adapter 9V~36V DC
Environment Operating Temperature -20°C ~ 60°C
Humidity 10% to 95% (non-condensing)
Storage Temperature -20°C ~ 70°C
IP Level IP 65 compliant front panel
Physical Characteristics Dimensions (LxWxH) (mm) 372.4 x 447.4 x 49.57
Cutout Dimensions 430 x 355
Weight Weight 5.4 /8.4
LCD LCD Color 16.7M
Pixel Pitch (mm) 0.294 x 0.294
Viewing Angle (H-V) 170° / 160°
Touch Touch Screen 2-point projected capacitive touch window/ EETI EXC7200
Touch Controller 5-wire resistive single touch window/ Penmount 6000

Ordering Information

Item No. Description
DM-F19A/R-R10 19" 350 cd/m² SXGA LCD monitor, Aluminum die casting front panel, Black color, W/ USB resistive touch screen, 9 ~36V DC input, R10
DM-F19A/PC-R10 19" 350 cd/m² SXGA LCD monitor, Aluminum die casting front panel, Black color, W/ USB projected capacitive touch screen, 9 ~36V DC input, R10

Packing List

  1. 1 x Utility CD
  2. 1 x Touch Pen
  3. 1 x USB Cable
  4. 1 x VGA Cable
