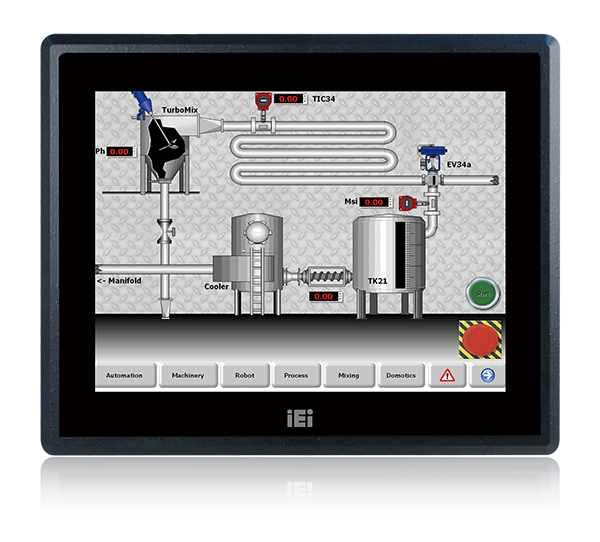

PPC-F12B-BT

12” Fanless Intel® Bay Trail Solution

PPC-F12B-BT

Catalog youtube

Features

● Support IEI iRIS-2400 remote intelligent solution
● Intel® Celeron® J1900 quad-core SoC
● Robust IP65 aluminum front bezel
● Aesthetic ultra-thin bezel for seamless panel mount installation
● Projected capacitive multi-touch and resistive single touch options
● Dual full-size PCIe Mini card expansion
● 9V~36V DC wide range DC input

Specifications

Spec Item Description
Display LCD Size 12.1""(4:3)
Brightness(cd/m2) 600
Max Resolution 1024 (W) x 768 (H)
Contrast Ratio 700:1
Backlight MTBF(hrs) 50000
I/O Interface I/O Ports and Switches 2 x RJ-45 LAN Port
2 x USB 3.0
2 x USB 2.0
1 x HDMI output
2 x RS-232
1 x RS-232/RS-422/485
1 x VGA
1 x 9 V~36 V DC jack (4-pin)
1 x 9 V~36 V DC terminal block
1 x Line-out (PPC-F15B and PPC-17B only)
1 x Power switch
Power Power adapter 9V~36V DC
Environment Operating Temperature -10°C~50°C (14°F~122°F)
Humidity 10% to 95% (non-condensing)
Storage Temperature -20°C~60°C (-4°F~140°F)
IP Level IP 65 compliant front panel
Physical Characteristics Dimensions (LxWxH) (mm) 262.2 x 322.2 x 47.2
Cutout Dimensions 244.8 x 304.8
Weight Weight 3.2 kg
LCD LCD Color 16.2M
Pixel Pitch (mm) 0.24 x 0.24
Viewing Angle (H-V) 160° / 140°
Touch Touch Screen 2-point projected capacitive type touchscreen 6H
Touch Controller 5-wire resistive single-touch type flat touchscreen 3H

Ordering Information

Item No. Description
PPC-F12B-BTi-J1/2G/R-R10 12 inch 600 cd/m2 XGA Panel PC with IntelR CeleronR Processor J1900, TDP 10W, 2GB RAM*1, support iRIS-2400, black color, 9-36V DC input, resistive touch window, R10
PPC-F12B-BTi-J1/2G/PC-R10 12 inch 600 cd/m2 XGA Panel PC with IntelR CeleronR Processor J1900, TDP 10W, 2GB RAM*1, support iRIS-2400, black color, 9-36V DC input, projected capacitive touch window, R10

Packing List

  1. 1 x PPC-FxxB-BTi Panel PC
  2. 1 x User Manual & Driver CD
  3. 1 x One Key Recovery CD
  4. 1 x Touch Pen
  5. 1 x Power Cord
  6. 1 x Screw Pack
  7. 1 x Power Adapter
