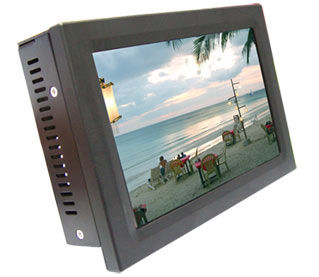

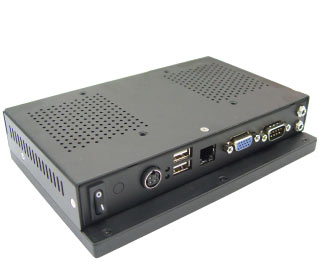

7 " Fanless Panel PC

7

Information Kiosk, POS, Mobile solution, Automation control



View



Feature
Panel PC provides water proof / touch screen / fanless function. With the VESA75 mounting spec and the small size panel, it is ideal for car PC application. Open-frame mechanical design is available upon customer’s request.
Fanless Panel PC
Dimensions
7" panel : 10 H x 189 W x 128 D mm
Case : 48 H x 189 W x 115 D mm
Weight
1.2Kgs ( lncl. M/B )
Material
Material:Plastics front frame + Aluminum
Storage
CF Card / 2.5" HDD
Operation Temp.
0 ~ 40 °C ( CF Card / 2.5" HDD )
Operation Humidity
5 ~ 90% @ 39 °C, non-condensing
System Information (Please refer to M/B specification)
Main board
3V700C-1R10U
Max Memory
DDR II Ram 1GB
CPU
VIA Eden ULV 1GHz
Intel Atom N270 1.6GHz
LCD Panel
CPT
Resolution
800x480
Brightness ( cd/m2 )
250
Contrast Radio
400 : 01
Number of Colors
262144
Touch Screen
4 wires / Resistance type
Mounting Spec.
VESA75
Panel frame water proof
IP65
Expansion slot
Mini PCI
Mini PCI / Mini PCIe
Ordering Information
Part Nr. Product Code TFT Panel Resolution MB Type CPU onboard Memory Support USB     Serial LAN GbE Expansion Storage Support Availability
PA3-MA7208 SPPC 7" + 2I268C-DH2600 7" 1024 x 600 2I268C N2600 1.6GHz Integrated with 2GB 2 1 1 Mini Card mSATA / 2.5" HDD A.

Optional Acc.:

  1. Wall Mount kit (for VESA 75, back side of system)
  2. Wireless 802.11n mini-PCI module
  3. Wireless 802.11n mini-card module
  4. PoE (Power Device by PW301), for 7" + 2I268C
  5. Webcam 2.0 Mega pixel
