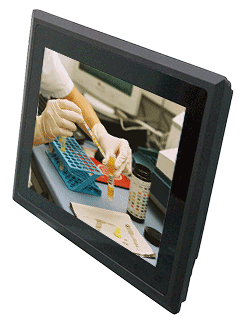

Bezel-free flat Panel PC 10.4"

BFF104PPC

BFF121PPC



LexMB

star-IP67
download
Datasheet Standard
Datasheet IP67 waterproof

Specifications

Model Name 10.4" + 2I385C
Dimension (mm) 279.5W x 54H x 231D mm
Weight 2.5 Kg
Hard drive 2.5" HDD
LCD brand AUO
LCD size 10.4 inch, 4:3
Max Resolution 1024 x 768
Luminance (cd/m2) 350
Contrast Ratio 1200:1
Viewing Angle (H-V) 60(U), 80(D), 80(R), 80(L)
Backlight LED
Touch Screen Resistive touch screen
MB 2I385CW
CPU Intel Bay Trail-I E3815 1.46 GHz ( Single Core )
Intel Bay Trail-I E3845 1.91 GHz ( Quad Core )
Chipset
Memory Type / Capacity E3815 DDR3L 1066MT/s
E3845 DDR3L 1333MT/s
SO-DIMM N/A
On board memory 2/4 GB
SSD Storage CF (CFast) N/A
mSATA Yes
On Board SSD N/A
VGA Yes
DVI / HDMI N/A
USB 4
COM 4 x COM for 2I385C / 2 x COM for 2I268HB
MiniPCIe 2
SIM Card Holder N/A
GPIO 4DI/4DO (Optional)
Ethernet 2 x Intel GbE
Audio Line-out / Mic-in
Power Input DC IN +9V~36V
Battery option (3500~10500 mAh)
Mounting VESA 75
Panel frame water proof IP65 (Front ) / 67
Optional MB 2I268HB
Expansion GPS, 3G/4G, Bluetooth, WI-FI, I/O, Video Card, PoE
Operating Temp. 0~50°C for HDD; - 20°C ~60°C for mSATA / SSD HDD
Operating Humidity 5~90% @ 39°C, non-condensing
Order Information ( 4:3 )
Part No. Model Code MB CPU onboard Memory support USB Serial Lan Resolution
P17-BTD200 STR12253 2I385CW-I44 E3845 1.91GHz 4 GB onboard 4 4 2 GbE 1024 x 768
IP66/67 Water proof PPC**by request
P17-BTH200 STR12260-00F 2I385CW-I44 E3845 1.91GHz 4 GB onboard TBD TBD TBD 1024 x 768
  • power supply:Ext. 60W
  • Storage support: mSATA / 2 x 2.5" HDD
  • Exp.:2 mini-card

Optional Acc.:

  1. Wireless 802.11n, mini-card, with Antenna
  2. Capacitive Touch by request
  3. Wall Mount kit (for VESA, back side of system)
  4. with Battery (MB change to 2I268HB)
  5. Stand for Panel PC, by VESA
