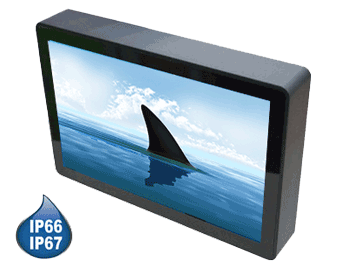

waterproof Bezel-free flat Panel PC 10.1"; 16:9

shark101wp

LexMB

Rear IORear IO ( back panel I/O is flexible forcustomized configuration)

LexMB

download
Datasheet

Specifications

MODEL 10.1" + 2I385HW
Dimension (mm) 250W x 40H x 168D
Weight 2 Kg
Hard drive mSATA, 2.5" HDD
LCD brand CPT
LCD size 10.1 inch, 16:9
Max Resolution 1280 x 800
Luminance (cd/m2) 500
Contrast Ratio 500:1
Viewing Angle (H-V) 140(H)-120(V)
Backlight LED
Touch Screen Resistive touch screen
MB 2I385HW
CPU Intel Bay Trail-I E3815 1.46 GHz (Single Core)
Intel Bay Trail-I E3845 1.91 GHz (Quad Core)
Chipset
Memory Type / Capacity E3815 DDR3L 1066MT/s
E3845 DDR3L 1333MT/s
SO-DIMM N/A
On board memory 2 / 4 GB
SSD Storage CF (CFast) N/A
mSATA Yes
On Board SSD N/A
VGA Yes
DVI / HDMI N/A
USB 5
COM 4
MiniPCIe 2
SIM Card Holder N/A
GPIO 4DI/4DO (Optional)
Ethernet Intel GbE x 2
Audio Line-out / Mic-in (Optional)
Power Input Wide Range +9~36V
Battery option (3500~10500mAh)
Mounting VESA 75 & Panel Mount
Panel frame water proof IP65 / IP66
Optional MB 2I268H
Expansion GPS, 3G/4G, Bluetooth, WI-FI, I/O, Video Card
Operating Temp. -20°C~60°C for mSATA / SSD HDD
Operating Humidity 5~90% @ 39°C, non-condensing
Order Information
16:9
Part Nr Model Code MB CPU onboard Memory support USB Serial Lan Resolution
call SH13260-00F 2I385HW-I44 E3845 1.91GHz 4 GB onboard TBD TBD TBD 1024 x 600
  • power supply:Ext. 30W
  • Storage support: mSATA / 2.5" HDD
  • Exp.:2 mini-card

Optional Acc.:

  1. Wireless 802.11n, mini-card, with Antenna
  2. Capacitive Touch by request
  3. Wall Mount kit (for VESA, back side of system)
  4. Stand for Panel PC, by VESA
