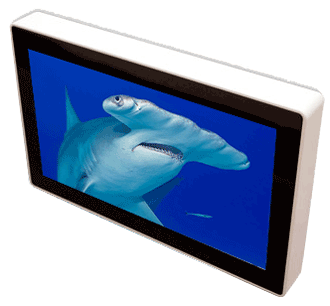

  Bezel-free flat Panel PC 13.3"

shark133s

LexMB

Rear IO ( back panel I/O is flexible forcustomized configuration)

LexMB

download
Datasheet

Specifications

Model Name 13.3" + 2I268C
Dimension (mm) 349.2W x 40H x 220.8D
Weight 2.7 Kg
Hard drive mSATA, 2.5" HDD
LCD brand CHIMEI
LCD size 13.3 inch, 16:9
Max Resolution WSVGA 1366 × 768
Luminance (cd/m2) 200
Contrast Ratio 500:1
Viewing Angle (H-V) 45/45/20/45 CR≥10 (L/R/U/D)
Backlight LED
Touch Screen Resistive touch screen
MB 2I268C-DVI
CPU Intel Cedarview-M N2600/N2800 1.6/1.86 GHz
Chipset Intel Cedarview-M + NM 10
Memory Type / Capacity DDR3 800 MT/s for N2600, Max up to 2GB
DDR3 1066 MT/s for N2800, Max up to 4GB
SO-DIMM N/A
On board memory 2GB
SSD Storage CF (CFast) N/A
mSATA Yes (Half Size)
On Board SSD Optional
VGA Optional
DVI / HDMI DVI
USB 2, Expend to 5
COM 1, Expend to 2
MiniPCIe 2
SIM Card Holder 2
GPIO 4DI/4DO (Optional)
Ethernet Realtek GbE x 1
Audio Line-out
Power Input DC IN +12V
Battery N/A
Mounting VESA 75/100
Panel frame water proof IP65
Expansion GPS, 3G/4G , Bluetooth, WI-FI, I/O
Operating Temp. -20°C~60°C for mSATA
Operating Humidity 5~90% @ 39°C, non-condensing
Order Information( 16:9 )
Part Nr Model Code MB CPU onboard Memory support USB Serial Lan Resolution
P31-MA7208 SH33552 2I268C-DH26 N2600 1.6GHz 2 GB onboard 2 1 1 GbE 1366 x 768
P31-BTD200 SH33253 2I385CW-I44 E3845 1.91GHz 4 GB onboard 2 1 2 Gbe 1366 x 768
  • MB: 2I268C-DH26
  • power supply:Ext. 30W
  • Storage support: mSATA / 2.5" HDD
  • Exp.:2 mini-card

Optional Acc.:

  1. Wireless 802.11n, mini-card, with Antenna
  2. Capacitive Touch by request
  3. Wall Mount kit (for VESA, back side of system)
  4. Stand for Panel PC, by VESA
