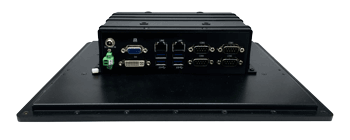

rear IO

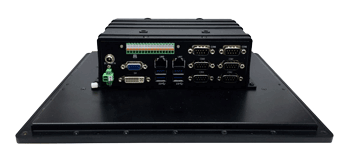

rear IO option

Application Information Kiosk, POS, Mobile solution, Automation Control


Fanless, Touch Screen, IP65 Front Panel Water Proof, LED Backlight panel

Technical Data

Bezel Free Panel PC
MODEL 10.1" SUPER Fanless Bezel-free Panel PC
Dimension 293.4W x 66.79H x 210.4D mm
293.4W x 80.8H x 210.4D mm (Optional)
Chassis Material Plastic
Weight 1.6kg (Incl. M/B)
Storage Space mSATA / 1 x 2.5" HDD
Operation Hymidity 5 ~ 90% @ 39 °C, non-condensing
Panel PC Information
Resolution 1280 x 800
Brightness (cd/m2) 300
Contrast Ratio 1300:1
Backlight LED
Viewing Angle (H-V) 85 / 85 / 85 / 85 CR≥10 (L / R / U / D)
Touch Screen Resistive Touch screen
(Capacitive touch screen-option)
Mounting Spec VESA 75
Panel frame water proof IP65
Accessory (Option) Wall Mount Kit / Stand

MB Information

CPU Type M/B Model VGA COM LAN USB Other Function Operation Temp.
Intel® Bay-Trail
E3845 / J1900
3I385CW 1 4 2 4 2 x mini Card,
DC IN +9~36V
60°C 50°C
Intel® Skylake-U /
Kaby Lake-U Core i
3I610CW 1 4 2 4 2 x mini Card,
DC IN +9~36V
60°C 50°C
Optional Functions
3G / 4G Wi-Fi Bluetooth High Brightness Panel GPS Rechargeable Battery
The above available functions outline the possibility with system, please contact us for more information.
