10.2 " Slim Fanless Panel PC

S10_2

Information Kiosk, POS, Mobile solution, Automation control



View


Feature
Intel Atom / VIA solution, Fanless, Touch screen, Water Proof, Open-frame design
Fanless Panel PC
Case Dimensions

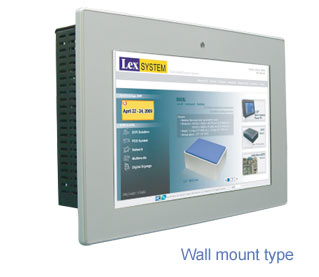

45.5 H x 265.4 W x 167.7 D mm ( Wall mount type )
52.5 H x 286 W x 177.9 D mm ( All in one type )
Front Panel Dimension
7.5 H x 286 W x 190 D mm
Material
Plastics front frame + Aluminum
Weight
1.3Kgs
Storage Space
2.5" HDD
Operation Temp.
0 ~ 45 °C ( 2.5" HDD ) / 0 ~ 50 °C ( CF Card )
Operation Humidity
5 ~ 90% @ 39 °C, non-condensing
System Information (Please refer to M/B specification)
Main board
Max Memory
DDRII SODIMM 4GB
on board DDRII SODIMM 1GB
CPU
Nano 1GHz
Intel Atom N270 1.6Ghz
COM port
3
USB
2
LCD Panel
CPT
Resolution
WSVGA 1024 x 600
Brightness ( cd/m2 )
220
Contrast Ratio
400:1
Number of Colors
262144
Touch Screen
TTI 4 wires / Resistance type
Mounting Spec.
VESA 75 / 100
Panel frame water proof
IP65
Webcam (Option)
2.0Mega pixel - auto focus
Accessory (Option)
Wall Mount Kit / Stand
Ordering Information
Part Nr. Product Code MB Type CPU on board Mem. Support USB Serial LAN GbE availbilities Storage Support Power Supply
P13-9C1208 STC3631W 3V900C VIA Nano 1 GHz SODIMM DDR3 up to 4GB 2 3 1 by request CF Card/ 2.5" HDD Ext. 30W
call STC3253W 2I385CW

E3845, 1.91GHz

Integrated with 2GB 4 2 2 by request mSATA / 2.5" HDD Ext. 60W
call STC3536W 3I380CW

E3845, 1.91GHz

Integrated with 4GB 4 2 2 by request mSATA / 2.5" HDD Ext. 60W
P13-DC5200 STC3862W 3I525C Intel  Atom D525 1.8GHz SODIMM DDR3 up to 4GB 2 3 2 by request CF Card/ 2.5" HDD Ext. 60W
P13-DC2200 STC3870W
3I525C
Intel  Atom D525 1.8GHz 2GB onboard + SODIMM 2 3 2 A. CF Card/ 2.5" HDD Ext. 60W

Optional Acc.:

  1. Wall Mount kit (for VESA 75, back side of system)
  2. Wireless 802.11n mini-PCI module
  3. Wireless 802.11n mini-card module
  4. PoE (Power Device by PW301), for 7" + 2I268C
  5. Webcam 2.0 Mega pixel
