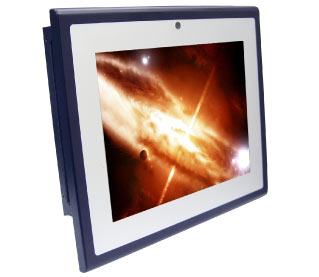

10.4 " Slim Fanless Panel PC

S10_4

Information Kiosk, POS, Mobile solution, Automation control



View

Feature
Intel Atom / VIA solution, Fanless, Touch screen, Water Proof, Open-frame design
Fanless Panel PC
Case Dimension
48.1 H x 255.6 W x 218 D mm
Front Panel Dimension
12 H x 287.6 W x 245 D mm
Material
Plastics front frame + Aluminum
Weight
2.2Kgs
Storage Space
2.5" HDD
Operation Temp.
0 ~ 45 °C ( 2.5" HDD ) / 0 ~ 50 °C ( CF Card )
Operation Humidity
5 ~ 90% @ 39 °C, non-condensing
System Information (Please refer to M/B specification)
Main board
3V900C
Max Memory
DDRII SODIMM 1GB
on board DDRII SODIMM 1GB
CPU
VIA C7 1.5GHz
Intel Atom N270 1.6Ghz
COM port
3
4
USB
2
LCD Panel
AUO
Resolution
SVGA 800x600
Brightness ( cd/m2 )
400
Contrast Ratio
700:1
Number of Colors
262144
Touch Screen
AMT 8 wires / Resistance type
Mounting Spec.
VESA 75/100
Panel frame water proof
IP65
Webcam (Option)
2.0Mega pixel - auto focus
Accessory (Option)
Wall Mount Kit / Stand
Ordering Information
Part Nr. Product Code Res. MB Type CPU on board Mem. Support USB Serial LAN GbE Storage Support Availabilities
call ST12252 SVGA 800x600 2I385CW Atom N270 1.6 GHz DDR2 1GB on board 2 4 1 CF Card/ 2.5" HDD by request
P14-BTD200 ST12253 SVGA 800x600 2I385CW E3815 1.46GHz Integrated with 2GB 4 3 2 mSATA / 2.5" HDD A.
P14-BT6200 ST12536 SVGA 800x600 3I380CW E3845 1.91GHz Integrated with 4GB 4 3 2 mSATA / 2.5" HDD by request
P14-DC2200 ST12870 SVGA 800x600 3I525C-RH23 Intel Atom D525 1.8GHz 2GB DDR3 onboard + 1 x SODIMM up to 2GB 2 4 2 CF Card/ 2.5" HDD A.
call ST12862 SVGA 800x600 3I525C-R000 Intel Atom D525 1.8GHz SODIMM up to 4GB 2 4 2 CF Card/ 2.5" HDD by request

Optional Acc.:

  1. Wireless 802.11n, mini-card, with Antenna
  2. Wall Mount kit (for VESA, back side of system)
  3. Stand for Panel PC, by VESA
  4. High Brightness 1500 nits + Aluminum Frame (15"+3I525C only)
