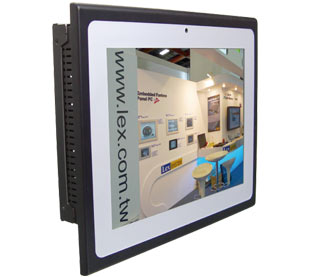

12.1 " Slim Fanless Panel PC

S12_1

Information Kiosk, POS, Mobile solution, Automation control



View


Feature
Intel Atom / VIA solution, Fanless, Touch screen, Water Proof, Open-frame design
Fanless Panel PC
Case Dimension
56.6 H x 288.3 W x 243 D mm
Front Panel Dimension
12 H x 320.3 W x 275 D mm
Material
Plastics front frame + Aluminum
Weight
7.2Kgs
Storage Space
3.5" HDD
Operation Temp.
0 ~ 45 °C ( 2.5" HDD ) / 0 ~ 50 °C ( CF Card )
Operation Humidity
5 ~ 90% @ 39 °C, non-condensing
System Information (Please refer to M/B specification)
Main board
3V700C-1R15C
Max Memory
DDRII SODIMM 1GB
on board DDRII SODIMM 1GB
CPU
VIA C7 1.5GHz
Intel Atom N270 1.6Ghz
COM port
3
4
USB
2
LCD Panel
AUO
Resolution
SVGA 800x600
Brightness ( cd/m2 )
450
Contrast Ratio
700:1
Number of Colors
262144
Touch Screen
AMT 8 wires / Resistance type
Mounting Spec.
VESA 75/100
Panel frame water proof
IP65
Webcam (Option)
2.0Mega pixel - auto focus
Accessory (Option)
Wall Mount Kit / Stand
Ordering Information
Part Nr Product Code Res. MB Type CPU on board Mem. Support USB Serial LAN GbE Storage Support Availabilities
P23-BTD200 ST22252 XGA 1024 x 768 2I385CW E3815 1.46GHz Integrated with 2GB 4 4 2 CF Card/ 2.5" HDD A.
P23-BTK200 ST22253 XGA 1024 x 768 2I385CW E3845 1.91GHz Integrated with 4GB 4 4 2 mSATA / 2.5" HDD by request
call ST22536 XGA 1024 x 768 3I380CW E3845 1.91GHz Integrated with 4GB 4 4 2 mSATA / 2.5" HDD by request
P23-DC2200 ST22870 1024 x 768 3I525C-RH23 Intel Atom D525 1.8GHz 2GB onboard + SODIMM 2 5 2 CF Card/ 2.5" HDD A.
P23-DC5200 ST22862 1024x768 3I525C-R000 Intel Atom D525 1.8GHz 1 x SODIMM up to 4GB 2 5 2 CF Card/ 2.5" HDD A.
P23-HAC200 ST22B21 XVGA 1024 x 768 3I847CW 1047UE 1.4GHz SODIMM up to 8GB 2 5 2 mSATA / 2.5" HDD A.
P25-6CB230 ST22A31 1024x768 CI770C-6CXX 988 G2 3rd GEN SODIMM up to 16GB 4 4 2 Cfast / 2.5" HDD / 3.5" HDD by request.

Optional Acc.:

  1. Wireless 802.11n, mini-card, with Antenna
  2. Wall Mount kit (for VESA, back side of system)
  3. Stand for Panel PC, by VESA
  4. High Brightness 1500 nits + Aluminum Frame (15"+3I525C only)
