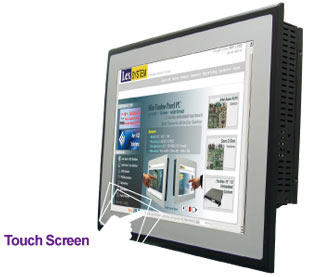

15.1 " Slim Fanless Panel PC |
| Information Kiosk, POS, Mobile solution, Automation control |
View
  |
| |
| Feature |
| Intel Atom / VIA solution, Fanless, Touch screen, Water Proof, Open-frame design |
| Fanless Panel PC |
Case Dimension |
68 H x 354.2 W x 282.6 D mm |
Front Panel Dimension |
10 H x 384 W x 312 D mm |
Material |
Plastics front frame + Aluminum |
|
9.2Kgs |
|
3.5" HDD |
|
0 ~ 45 °C ( 2.5" HDD ) / 0 ~ 50 °C ( CF Card ) |
|
5 ~ 90% @ 39 °C, non-condensing |
|
| System Information (Please refer to M/B specification) |
Main board |
|
|
|
Max Memory |
2 x DDRII SODIMM 3GB |
1 x DDRII SODIMM 1GB |
on board DDRII SODIMM 1GB |
CPU |
Intel Core 2 Duo |
VIA C7 1.5 Ghz |
Intel Atom N270 1.6Ghz |
COM port |
6 |
4 |
6 |
USB |
4 |
2 |
LCD Panel |
AUO |
Resolution |
XGA 1024 x 768 |
Brightness(cd/m2) |
350 |
Contrast Ratio |
700 : 1 |
Number of Colors |
262144 |
Touch Screen |
AMT 8 wires / Resistance type |
Mounting Spec. |
VESA 75 / 100 |
Panel frame water proof |
IP65 |
Webcam (Option) |
2.0 Mega pixel - auto focus |
Accessory (Option) |
Wall Mount Kit / Stand |
|
| Ordering Information |
| Product Code |
Res. |
MB Type |
CPU on board |
Mem. Support |
USB |
Serial |
LAN |
Expansion |
Storage Support |
Availabilities |
| ST52379 |
1024x768 |
3V700C |
VIA C7 1.5 GHz |
1 x SODIMM up to 1GB |
2 |
4 |
1 |
Mini-PCI |
CF Card/ 2.5" HDD/ 3.5" HDD |
A. |
| ST52721 |
1024x768 |
3I270C |
Atom N270 1.6 GHz |
DDR2 1GB on board |
2 |
6 |
1 |
Mini-PCI Mini Card |
CF Card/ 2.5" HDD/ 3.5" HDD |
A. |
| ST52861 |
1024x768 |
3I525C |
Intel D525 1.8GHz |
1GB DDR3 onboard + 1 x SODIMM up to 2GB |
2 |
6 |
2 |
Mini-PCI Mini Card |
CF Card/ 2.5" HDD/ 3.5" HDD |
A. |
| ST52862 |
1024x768 |
3I525C |
Intel D525 1.8GHz |
1xSODimm up to 4GB |
2 |
6 |
2 |
Mini-PCI Mini Card |
CF Card/ 2.5" HDD/ 3.5" HDD |
A. |
| ST52784 |
1024x768 |
CI270C |
Atom N270 1.6GHz |
1GB DDR2 onboard |
4 |
6 |
2 |
Mini-PCI Mini Card |
CF Card/ 2.5" HDD/ 3.5" HDD |
By Request |
| ST52822 |
1024x768 |
MI270A |
Atom N270 1.6GHz |
1 x SODIMM up to 2GB |
4 |
2 |
2 |
Mini-PCI Mini Card |
CF Card/ 2.5" HDD/ 3.5" HDD |
By Request |
| ST52502 |
1024x768 |
CI945C |
Intel Core2Duo socket |
1 x SODIMM up to 3GB |
4 |
6 |
2 |
Mini-PCI Mini Card |
CF Card/ 2.5" HDD/ 3.5" HDD |
By Request System with Fan |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
