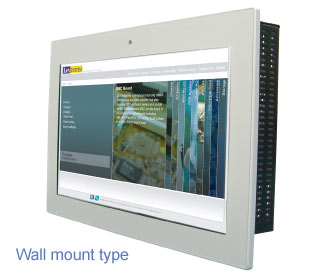

15.6 " Slim Fanless Panel PC

S15_6

Information Kiosk, POS, Mobile solution, Automation control



View

Feature
Information Kiosk, POS, Mobile solution, Automation control
Fanless Panel PC
Material
Plastics front frame + Aluminum
Weight
2Kgs
Storage Space
3.5" HDD
Operation Temp.
0 ~ 45 °C ( 2.5" HDD ) / 0 ~ 50 °C ( CF Card )
Operation Humidity
5 ~ 90% @ 39 °C, non-condensing
System Information (Please refer to M/B specification)
Main board
Max Memory
DDRII SODIMM 1GB
on board DDRII SODIMM 1GB
CPU
Nano 1 GHz
Intel Atom N270 1.6Ghz
COM port
4
5
USB
2
LCD Panel
CPT
Resolution
WSVGA 1366 x768
Brightness ( cd/m2 )
220
Contrast Ratio
500:1
Number of Colors
262144
Touch Screen
TTI 4 wires / Resistance type
Mounting Spec.
VESA 75 / 100
Panel frame water proof
IP65
Webcam (Option)
2.0Mega pixel - auto focus
Accessory (Option)
Wall Mount Kit / Stand
Ordering Information
Part Nr. Product Code MB Type CPU on board Mem. Support USB Serial LAN GbE Availability Storage Support Power Supply
P53-9C1200 STE3631W 3V900C VIA Nano 1 GHz SODIMM DDR3 up to 4GB 2 4 1 by request CF Card/ 2.5" HDD/ 3.5" HDD Ext. 60W
Call STE3253W 2I385CW E3845 1.91GHz Integrated with 4GB 4 4 2 by request mSATA / 2.5" HDD Ext. 60W
P54-BT6200 STE3536W 3I380CW E3845 1.91GHz Integrated with 4GB 2 5 2 by request mSATA / 2.5" HDD Ext. 60W
P53-DC5200 STE3862W 3I525C Intel Atom D525 1.8GHz SODIMM DDR3 up to 4GB 2 5 2 by request CF Card/ 2.5" HDD/ 3.5" HDD Ext. 60W
P53-DC2200 STE3870W 3I525C Intel Atom D525 1.8GHz 2GB onboard + SODIMM 2 5 2 A. CF Card/ 2.5" HDD/ 3.5" HDD Ext. 60W

Optional Acc.:

  1. Wall Mount kit (for VESA 75, back side of system)
  2. Wireless 802.11n mini-PCI module
  3. Wireless 802.11n mini-card module
  4. PoE (Power Device by PW301), for 7" + 2I268C
  5. Webcam 2.0 Mega pixel
