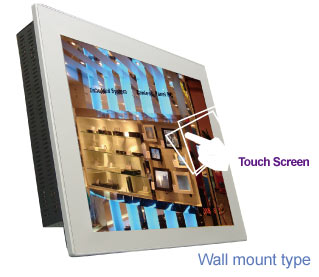

17 " Slim Fanless Panel PC

S17

Information Kiosk, POS, Mobile solution, Automation control



View



Feature
Intel Atom / VIA solution, Fanless, Touch screen, Water Proof, Open-frame design
Fanless Panel PC
Case Dimension
56 H x 386.2 W x 316.4 D mm
Front Panel Dimension
8.5 H x 413 W x 343 D mm
Material
Plastics front frame + Aluminum
Weight
4Kgs
Storage Space
3.5" HDD
Operation Temp.
0 ~ 45 °C ( 2.5" HDD ) / 0 ~ 50 °C ( CF Card )
Operation Humidity
5 ~ 90% @ 39 °C, non-condensing
System Information (Please refer to M/B specification)
Main board
3V700C-1R15C
Max Memory
DDRII SODIMM 1GB
on board DDRII SODIMM 1GB
CPU
VIA C7 1.5GHz
Intel Atom N270 1.6Ghz
COM port
4
6
USB
2
LCD Panel
AUO
Resolution
SXGA + 1280 x 1024
Brightness ( cd/m2 )
350
Contrast Ratio
1000 : 1
Number of Colors
16.7M
Touch Screen (Option)
AMT 8 wires / Resistance type
Mounting Spec.
VESA 75 / 100
Panel frame water proof
IP65
Webcam (Option)
2.0 Mega pixel - auto focus
Accessory (Option)
Wall Mount Kit / Stand
Ordering Information
Part Number Product Code MB Type CPU on board Mem. Support 2nd Display USB Serial LAN GbE Sim / Antenna Storage Support Availabilities
P73-BT6200 STF3536W 3I380CW - I44 E3845 1.91GHz Integrated with 4GB VGA + HDMI 4 5 2 int. / 1 mSATA / 2.5" HDD A.
call call 2I385CW- I22 E3825 1.33GHz 2GB DDR3L onboard VGA 4 4 2 - / 1 mSATA / 2.5" HDD 4W
P73-BTD200 call 2I385CW-I44 E3845 1.91GHz 4GB DDR3L onboard VGA 4 4 2 - / 1 mSATA / 2.5" HDD 4W
P73-HAA200 STF3B21W 3I847CW-3C4 1047UE 1.4GHz SODIMM up to 8GB DVI + HDMI 4 5 2 int. / 1 mSATA / 2.5" HDD 4W
call STF3B23W 3I847CW-3I7 i7-3517UE SODIMM up to 8GB DVI + HDMI 4 5 2 int. / 1 mSATA / 2.5" HDD 4W
  1. Resolution: SXVGA 1280x1024
  2. Mic in / Line out

Optional Acc.:

  1. Wireless 802.11n, mini-card, with Antenna
  2. Wall Mount kit (for VESA, back side of system)
  3. Stand for Panel PC, by VESA
  4. High Brightness 1500 nits + Aluminum Frame (15"+3I525C only)
