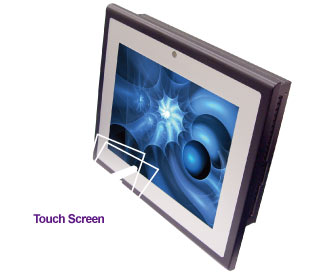

8.4 " Slim Fanless Panel PC

S8_4

Information Kiosk, POS, Mobile solution, Automation control



View


Feature
Intel Atom / VIA solution, Fanless, Touch screen, Water Proof, Open-frame design
Fanless Panel PC
Case Dimension
48 H x 225 W x 162 D mm
Front Panel Dimension
10 H x 254 W x 190 D mm
Material
Plastics front frame + Aluminum
Weight
1.5Kgs
Storage Space
2.5" HDD
Operation Temp.
0 ~ 45 °C ( 2.5" HDD ) / 0 ~ 50 °C ( CF Card )
Operation Humidity
5 ~ 90% @ 39 °C, non-condensing
System Information (Please refer to M/B specification)
Main board
3V900C
Max Memory
DDRII SODIMM 1GB
on board DDRII SODIMM 1GB
CPU
Nano 1 GHz
Intel Atom N270 1.6Ghz
COM port
2
USB
2
LCD Panel
AUO
Resolution
SVGA 800x600
Brightness ( cd/m2 )
450
Contrast Ratio
600:1
Number of Colors
262144
Touch Screen
TTI 4 wires / Resistance type
Mounting Spec.
VESA 75
Panel frame water proof
IP65
Webcam (Option)
2.0Mega pixel - auto focus
Accessory (Option)
Wall Mount Kit / Stand
Ordering Information
Part Nr. Product Code Res. MB Type CPU on board Mem. Support USB Serial LAN GbE Storage Support Availabilities
-- ST82252 800x600 2I385CW E3815 1.46GHz Integrated with 2GB 4 4 2 CF Card/ 2.5" HDD by request
P84-BTD200 ST82253 800x600 2I385CW E3845 1.91GHz Integrated with 4GB 4 4 2 mSATA / 2.5" HDD A.
-- ST82536 800x600 3I380CW E3845 1.91GHz Integrated with 4GB 4 1 2 mSATA / 2.5" HDD by request
P84-DC2200 ST82870 800x600 3I525C-RH23 Intel  Atom D525 1.8GHz 2GB DDR3 onboard + 1 x SODIMM up to 2GB 2 2 2 CF Card/ 2.5" HDD A.

Optional Acc.:

  1. Wireless 802.11n, mini-card, with Antenna
  2. Wall Mount kit (for VESA, back side of system)
  3. Stand for Panel PC, by VESA
  4. High Brightness 1500 nits + Aluminum Frame (15"+3I525C only)
