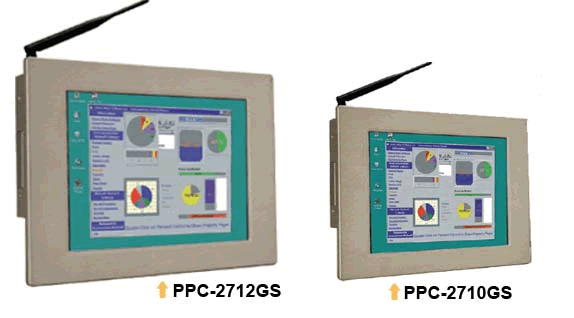

PPC-2710GS/PPC-2712GS |
AMD® Geode LX800 Fanless Panel PC with 10.4" / 12" TFT LCD and Touch Screen |
|
Features:
-
12.1"/10.4TFT LCD
-
AMD Geode LX-800 (500MHz) processor
-
DDR 333/400MHz SO-DIMM memory up to 1GB
-
Dual 10/100Mbps Ethernet
-

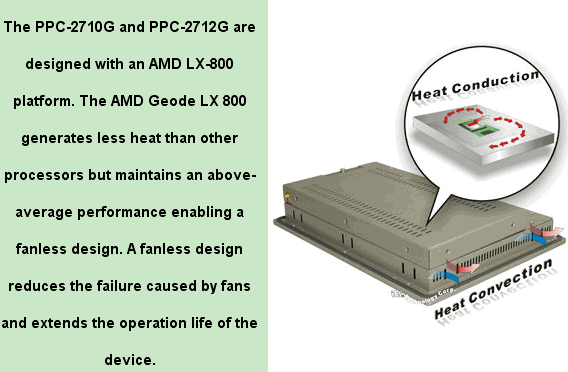

Fanless and ultra-low power consumption
-
Optional 802.11 b/g wireless LAN module
- One Compact Flash Type II socket
- IP 65 compliant aluminum front panel
|
|
Overview |
|

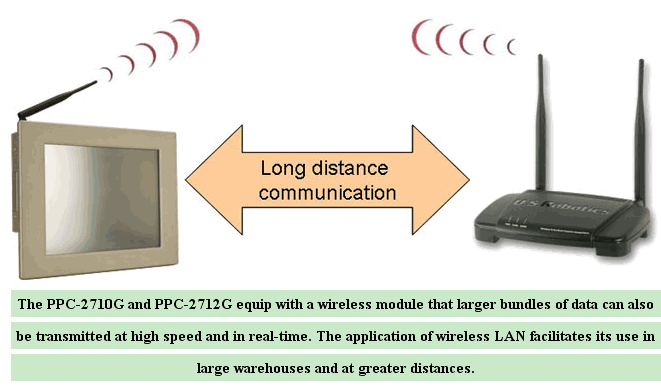

- Optional 802.11 b/g wireless LAN module

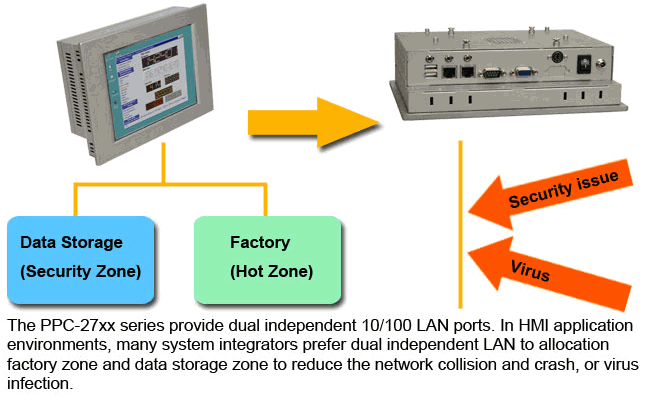

- Dual 10/100 Ethernet support
|
Specification
| |
PPC-2710 |
| CPU Board |

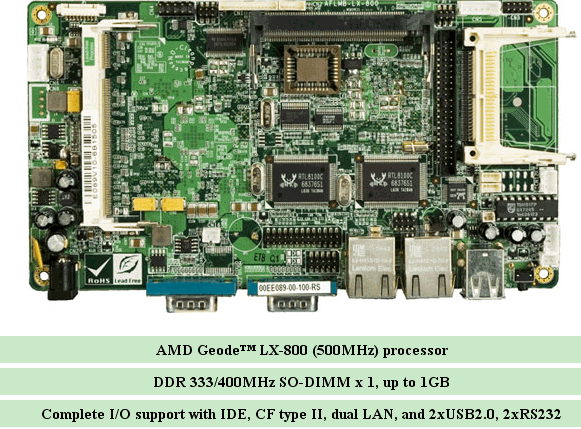

- AFLMB-LX800 |
| CPU |
- AMD® Geode LX800 |
| Chipset |
-
AMD LX 800 + CS5536 |
| Memory |
-
1 x DDR 333/400MHz SO-DIMM socket up to
1GB |
| VGA |
- AMD® Geode LX800 |
| SSD |
- CF Type II |
| Drive Bay |
- 1 x 2.5" IDE HDD bay |
| Ethernet |
- Dual RTL8100C 10/100Mbps |
| Audio |
- AC ¡¦97 2.3 Realtek ALC 203 |

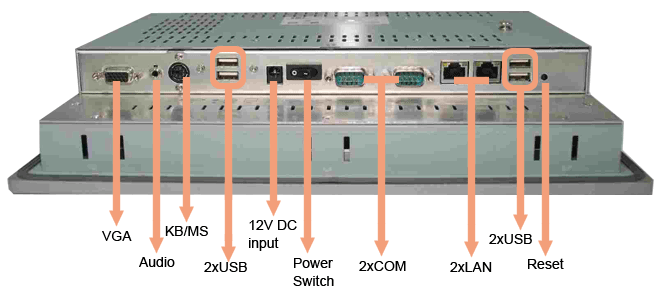

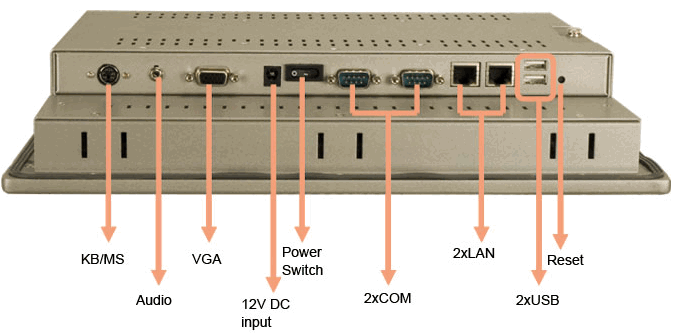

| I/O |
- 2 x RS-232 ports |
| - 2 x USB 2.0 ports |
| - 1 x PS/2 ports (KB/MS) |
| - 1 x VGA out |
| - 2 x LAN |
| - 1 x Audio (Line-out) |
| - 1 x IDE |
| Expansion Slot |
- Mini PCI for 802.11 b/g wireless LAN module
(optional) |
| Touch Screen |
- Optional 4-wire resistive type with RS-232 interface. |
| Power Supply |
- AC adapter - 45W, 63000-UP0451E12P81L-RS |
| - Input: 90 ~ 240VAC @ 50/60Hz, Output: 12VDC |
| Operating Temperature |
- 0 ¢XC~ 50¢XC. |
| Storage Temperature |
- -20¢XC ~ 60¢XC. |
| Vibration |
- 5~17Hz 0.1¡¨ double amplitude displacement |
| - 17~640 Hz 1.5G acceleration peak to peak |
| Shock |
- 10G acceleration peak to peak. (11ms) |
| Relative Humidity |
- 5 ~ 95% @ 60¢XC, non-condensing |
| Net / Gross Weight |
- 2.6 / 5.5 Kg |

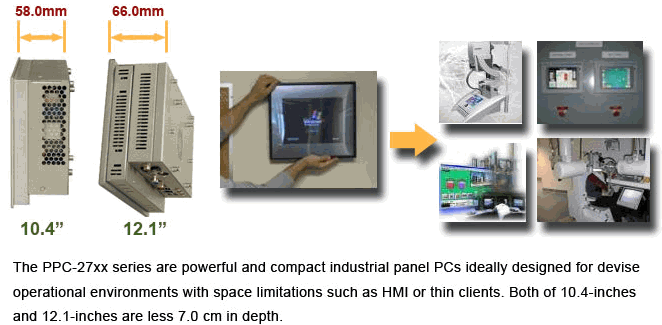

| Dimensions |
- 311.5(w) x 242(H) x 58(D)mm |
| LCD |
- Resolution : 800 x 600 VGA) |
| - Brightness : 230 cd/m2 |
| - Contrast Ratio : 500:1 |
| - Viewing Angle (H-V):140/120 |
| - Backlight MTBF : 30000hrs |
| Front Panel Protection |
- IP 65 Compliant |
| Certificate |
- Meets CE / FCC |
| |
PPC-2712 |
| CPU Board |
- AFLMB-LX800 |
| CPU |
- AMD® Geode LX800 |
| Chipset |
-
AMD LX 800 + CS5536 |
| Memory |
-
1 x DDR 333/400MHz SO-DIMM socket up to
1GB |
| VGA |
- AMD® Geode LX800 |
| SSD |
- CF Type II |
| Drive Bay |
- 1 x 2.5" SATA/IDE HDD bay |
| Ethernet |
- Dual RTL8100C 10/100Mbps |
| Audio |
- AC¡¦97 2.3 Realtek ALC 203 |
| I/O |
- 2 x RS-232 ports |
| - 2 x USB 2.0 ports |
| - 4 x USB 2.0 ports |
| - 1 x PS/2 ports (KB/MS) |
| - 1 x VGA out |
| - 2 x LAN |
| - 1 x Audio (Line-out) |
| - 1 x IDE |
| Expansion Slot |
- Mini PCI for 802.11 b/g wireless LAN module
(optional) |
| Touch Screen |
- Optional 5-wire resistive type with RS-232 interface. |
| Power Supply |
- AC adapter - 45W, 63000-UP0451E12P81L-RS |
| - Input: 90 ~ 240VAC @ 50/60Hz, Output: 12VDC |
| Operating Temperature |
- 0 ¢XC~ 50¢XC. |
| Storage Temperature |
- -20¢XC ~ 60¢XC. |
| Vibration |
- 5~17Hz 0.1¡¨ double amplitude displacement |
| - 17~640 Hz 1.5G acceleration peak to peak |
| Shock |
- 10G acceleration peak to peak. (11ms) |
| Relative Humidity |
- 5 ~ 95% @ 60¢XC, non-condensing |
| Dimensions |
- 2.8 / 5.7 Kg |
| LCD |
- Resolution :1024 x 768 SXGA |
| - Brightness : 450 cd/m2 |
| - Contrast Ratio : 700:1 |
| - Viewing Angle (H-V):160/160 |
| - Backlight MTBF : 30000hrs |
| Front Panel Protection |
- IP 65 Compliant |
| Certificate |
- Meets CE / FCC |
|
Packing / Ordering Inf.
Packing List |
|
Decription |
|
|
|
1 |
|
|
1 |
|
|
1 |
|
|
1 |
|
PS/2 Cable |
1 |
|
User Manual & Driver CD-ROM
|
1 |
|
|
1 |
WK-104MS-R10 |

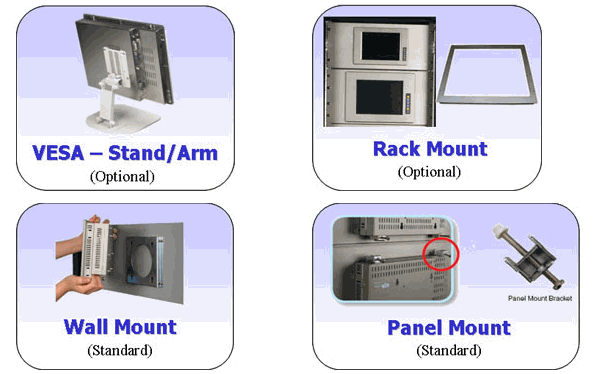

Wall Mounting Kit |
1 |
|
|
|
|
|
|
|
STAND-100-RS/ STAND-A12 |
LCD Monitor Stand |
|
|
|
|
|
|
|
|
|
79300-M512-049-RS |
|
79300-M512-032-RS |
|
Order Information:
|
PPC-2710GS/AFLMB-LX-800 |
10.4" TFT Panel PC with AFLMB-LX-800, Silver Color, RoHS |
| PPC-2710GS/AFLMB-LX-800/T-R |
10.4" TFT Panel PC with AFLMB-LX-800, Silver Color & Touch Screen, RoHS |
PPC-2710GS/AFLMB-LX-800W/T-R |
10.4" TFT Panel PC with AFLMB-LX-800, Silver Color, 802.11b/g Wireless Module & Touch Screen, RoHS |
|
PPC-2712GS/AFLMB-LX-800 |
12.1" TFT Panel PC with AFLMB-LX-800, Silver Color, RoHS |
PPC-2712GS/AFLMB-LX-800/T-R |
12.1" TFT Panel PC with AFLMB-LX-800, Silver Color & Touch Screen, RoHS |
PPC-2712GS/AFLMB-LX-800W/T-R |
12.1" TFT Panel PC with AFLMB-LX-800, Silver Color, 802.11b/g Wireless Module & Touch Screen, RoHS |
|
|
|
