PPC-3712GS

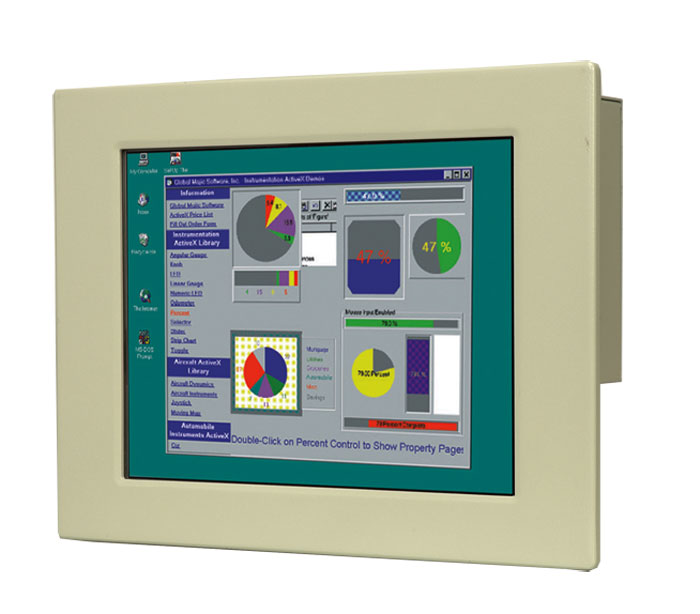

Robust IP65 Shock resistance 12.1" Industrial Panel PC, RoHS Compliance

PPC-3712GS Overview

• 12.1" Slim Design Solution

The PPC-3712GS is only 7.34cm. The special slim design, makes the PPC-3712GS to be easily to be mounted on the wall.

• IP65 Waterproof and Protection

• Simplified CPU thermal controlling

Main board : NANO-8522
High Performance Motherboard!
Your processor intensive applications are all met with the versatile, stable and reliable embedded industrial motherboard that comes with Intel Pentium M /Celeron MCPU and Intel chipsets that have Intel Longlife support.

Compatible CPU options 1. Pentium M / Celeron M with FSB400 MHz 2. On Board Low Voltage / ULV Pentium M / Celeron M BGA type ( customization product) Defult: onboard 1GHzZero cache BGA type

Main Board :

1. CPU : Socket -479 base Intel Pentium M / Celeron M support FSB 400 MHz
2. System Chipset : Intel 852GM + ICH4
3. System Memory : 1 x DDR 266/200 SO-DIMM socket up to 1GB
4. VGA : Chipset integrated, Intel Extreme Graphic , dual display supports
5. Ethernet: Intel 82541 Gigabit Ethernet controller
6. Audio : AC ’97 Codec, 5.1 channels

• Add Touch Screen Functionality to Your Panel PC

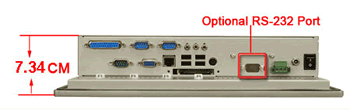

You can add a touch screen function to your PPC industrial panel PC with the reserved RS-232 port. A strong Fiber Glass Touch Screen is available for the PPC-3712GS T-R model.

• M models support 9~36V DC power input in mobile application

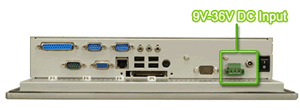

PPC-3712GSM model is for 9~36V DC input. Factories and mobile environment like cars and engineer vehicles usually use 12V and 24V DC as power source, 9~36V power input solution could be adapted to more appliance requirements.

• Flexible Display Functions and Usage!

Your diverse industrial application display needs are all met with the dual display function, the display rotation function and the optional touch screen function on the IEI PPC panel PC.

• Dual display function for multi-monitor application.

You can connect the primary panel PC to a secondary display to monitor the panel PC performance from two locations simultaneously.

• Hard Drive ANTI-SHOCK Protection

The ANTI-SHOCK Protection design of 2.5" HDD to protect your data in the harsh environment.

• High brightness and 50000hrs MTBF long lifetime panel

Industrial and out-door applications are usually set the hole system in high brightness environments. Sometimes luminance be reduced by touch screens or protection lens on the panel.
Different form the commercial type panel lower than 200 nitts, our MPC series chose the panel brightness higher than 300 nitts and longer lifetime for more clear quality in above environment.

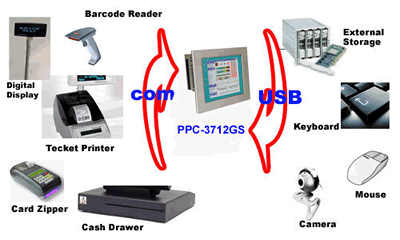

• Complete I/O function Support

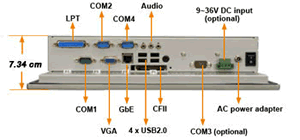

4 x COM (1 inside for Touch Screen), 4 x USB 1 x CFII Socket Audio connectors Printer Port

• Best MES Solution

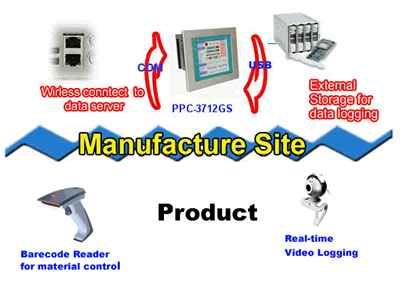

A Manufacturing Execution System (MES) is an integrated hardware and software solution designed to measure and control activities in the production areas of manufacturing organizations to increase productivity and improve quality.

• Various mounting upports

1. Panel Mount
2. Rack Mount
3. Stand Support
4. Wall Mount


Specification

Fully RoHS compliant
12.1" High luminance TFT LCD display
- Resolution :800 x 600
- Brightness : 400 cd/m2
- Contrast Ratio : 500:1
- LCD MTBF : 50000hrs
- Backlight MTBF : 30000hrs
Main board : NANO-8522
- CPU : Socket-479 base Intel Pentium M / Celeron M support FSB 400 MHz
On board Intel Celeron M 1GHz zero cache
- System Chipset :Intel 852GM + ICH4
- System Memory : 1 x DDR 266/200 SO-DIMM socket up to 1GB
- VGA : Chipset integrated, Intel Extreme Graphic , dual display supports
- Ethernet : Intel 82541 Gigabit Ethernet controller
- Audio : AC ’97 Codec, 5.1 channels
I/O

- 4 x RS-232 ports (1 connectors, 3 pin-headers)
- 4 x USB 2.0 ports
- 1 x PS/2 ports (KB/MS)
Expansion Interface :
- 1 x Compact Flash type II socket
Drive Bays :

-1 x slim type CDROM bay
- 1 x 2.5” HDD bay
Aluminum front panel , meets IP65 standard.
Optional resistive type touch screen with RS-232 interface.
Shock : 10G acceleration peak to peak. (11ms)
Relative Humidity : 5 ~ 95%, non-condensing.
Operating Temperature : 0 ~ 50° C.
Power:
-80W power adapter for socket model
-55W power adapter for BGA model
Dimensions :
340(w)*260(H)*73.4(D)mm
Net/Gross Weight : 6/8 Kg

Ordering Information:

Socket Type:

BGA Type:

PPC-3712GS Packing List

PPC-3712GS Optional
