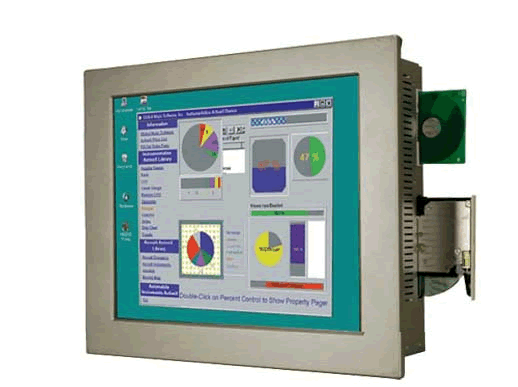

PPC-5190GS

Pentium® 4/ Celeron® D Panel PC with 19" TFT LCD



Features:

  • 19"TFT LCD
  • Intel Pentium® 4/Celeron® D CPU support FSB 533MHz up to 2.8GHz
  • DDR 266/333MHz DIMM memory up to 2 GB
  • Dual Gigabit Ethernet support
  • One Comact Flash Type II socket
  • IP 65 compliant aluminum front panel
PPC-5190GS
 Datasheet Dimension Large photo

Overview
  • Big screen allows multi-display

PPC-5190GS equips with 19¡¨ TFT LCD which is a ideal design for the multi-display requirement such as digital surveillance or multi-operating-system. With multi-display configuration, users can handle more tasks at the same time as well as saving the resource and space.

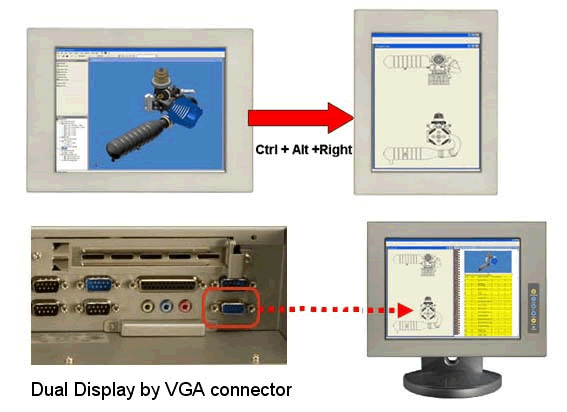

  • Screen rotation for more flexibility usage

POS-8520 supports screen rotation function. It¡¦s integrated in the Intel windows drivers and could be easily adjusted by GUI or hot keys. Collocating with rotational VESA mount arms, user can switch the screen status to feet needed anytime, or even more, combine dual independent display function to get more convenience.

  • Simplified CPU thermal controlling







PPC-5190 equiped with new mobile 852GME chipset and new thermal / cooler solution, and more, the new SATA connection cable also improves air flow turbulence. User can easily upgrade their system up to 2.8GHz Pentium® 4 Prescott / Celeron® D CPU.

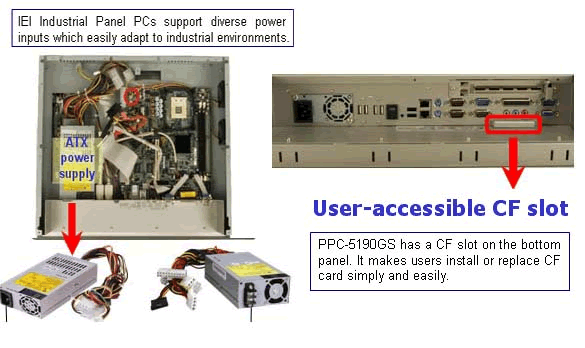

  • Diverse power inputs

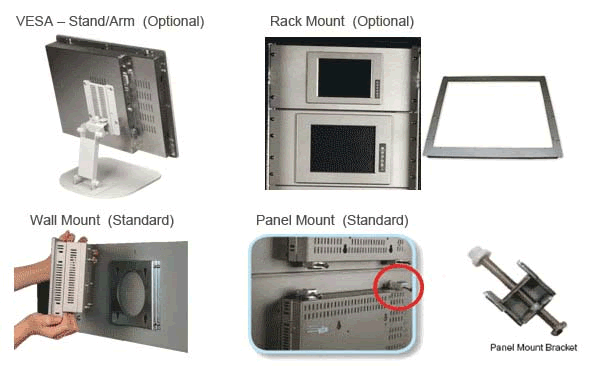

  • IQ mount support



Specification

CPU Board

POS-8520

Touch Screen

- Optional 5-wire resistive type with RS-232 interface

CPU

 - Socket-478 based Intel® Pentium ® 4/Celeron R D support FSB 400MHz up to 2.8GHz

Power Supply

 - ATX Power - 180W, ACE-4518AP-RS
- Input: 90 ~ 240VAC @ 50/60Hz, Output (max) : 3.3V@ 16.8A , 5V@ 12A, 12V@ 10A, -12V@ 0.8A
- ATX Power - 200W, ACE -4520C-RS
- Input: 24VDC @ 50/60Hz, Output (max) : 3.3V@ 12A , 5V@ 12A, 12V@ 15.4A, -12V@ 0.8A

Chipset

- Intel ® 852GME + ICH5

Operating

Temp.

- 0 ~ 50¢XC

Memory

- 2 x DDR 266/333MHz DIMM socket up to 2GB

Storage Temp.

- 20 ~ 60¢XC.

VGA

- Intel® 852GME support dual display

Vibration

- -5~17Hz 0.1¡¨ double amplitude displacement - 17~640 Hz 1.5G acceleration peak to peak

SSD

- CF Type II

Shock

- 10G acceleration peak to peak. (11ms)

Drive Bay

 - 1 x 2.5" SATA/IDE HDD bay with anti-shock or 2 x 2.5¡¨ SATA/ IDE HDD bay

RelativeHumidity

- 5 ~ 95% @ 60¢X C, non-condensing
- 1 x Slim Type CD-ROM bay

Net /GrossWeight

- 12.6/ 18.2 Kg
- 1 x Slim Type FDD bay

Dimension

- 483(w) x399 (H) x116(D)mm

Ethernet

 - 2 x Realtek RTL8110S Gigabit Ethernet controller Audio - AC ¡¦97 2.3 Realtek ALC 655

I/O

 - 1 x RS-232/422/485 ports

LCD

 - Resolution: 1280 x1024 XGA
- 5 x RS-232 ports - Brightness : 300cd/m2
- 6 x USB 2.0 ports - Contrast Ratio : 700:1
- 2 x PS/2 ports (KB/MS) - Viewing Angle (H-V):140/130
- 1 x VGA out - Backlight MTBF : 50000hrs
- 1 x LPT
- 2 x LAN
- 3 x Audio (Lin-in, Line-out, MIC-in)
- 2 x IDE , - 2 x SATA

ExpansionSlot

- 1 x PCI slot

Front PanelProtection

- IP 65 Compliant


Ordering Information:

PPC-5190GS/8520/ACE-4518AP
- 19" TFT Panel PC with POS-8522 and ACE-4518AP, Silver color, RoHS
PPC-5190GS/8520/ACE-4518AP/T-R
- 19" TFT Panel PC with POS-8522, ACE-4518AP and touch screen Silver color, RoHS
PPC-5190GS/8520/ACE-4520C
- 19" TFT Panel PC with POS-8522 and ACE-4520C, Silver color, RoHS
PPC-5190GS/8520/ACE-4520C/T-R
- 19" TFT Panel PC with POS-8522, ACE-4520C and touch screen Silver color, RoHS
