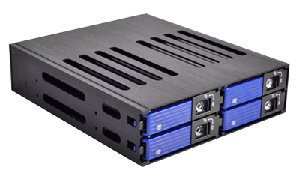

ST-1041SAS

SATA/SAS HDD Box

SPECIFICATIONS:
Interface

SATA & SAS

Compatible with

SAS or
SATA-I  1.5 Gbit/s, SATA-II 3.0 Gbit/s, SATA-III 6.0 Gbit/s

 Driver Bays needed

1 x 5.25" bay for 4 x 2.5" SAS & SATA HDD

HDD size

2.5" (thickness 9.5 - 15mm)

HDD connection
cableless HDD connection
Pin

7pin signal connectors x 4 SATA cable

Power connector

standard 4pin x 1

Performance

SATA-I:  upto 1.5Gbps
SATA-II:  upto 3.0Gbps
SATA-III: upto  6.0Gbps
SAS-I:  upto 3.0Gbps
SAS-II: upto  6.0Gbps

*RAID support

0,1,5 Functions (*need an optional SAS or SATA Raid Controller)

Plug & play

Supports plug & play, hot swappable

Material

Aluminum body/ metal trays/plastic cover

Colour

Black

Ventilation

2 x 4cm fan with 2 fan stage speed adjustable

LED indication

For power and HDD accessing
Green: power on
Green blinking: HDD accessing

Dimensions [mm]

172(L) x 146(W) x 42(H)mm

Weight

0.8KG
