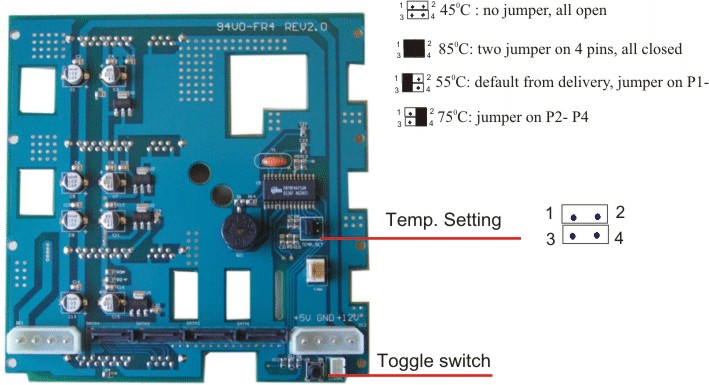

· Buzzer reset switch:
Toggle switch: default
2-pin (optional ): can be replaced by 2 x 2,54mm pins and cable with swich for external use. The 2-pin connector must be placed on the shorter-side pin holes after removing the toggle switch to short / reset the buzzer sound.
· TTL signal: Active 5 V high

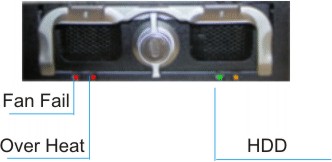

Sending a TTL Signal to supervisor in case of fan, temperature and HDD fail.
· Buzzer Alarm: buzzer will sound if fan or temperature setting exceeds.
Fan: continuous single-bi sound.
Temperature: continues double-bi sound
