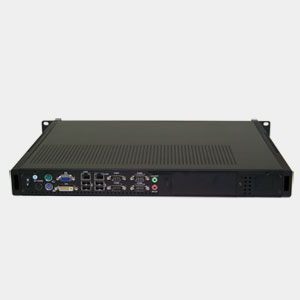

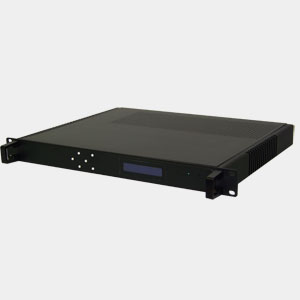

Fanless Half size 19" 1U
- DXF |

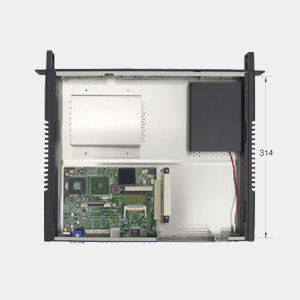

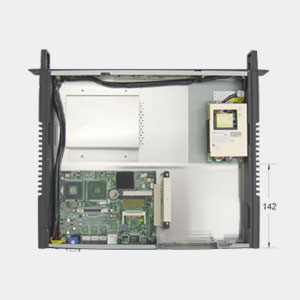

| 19" 1U fanless system adopts Intel Celeron M and Core 2 Duo solution and supports up to 45˚C .Customer can apply with 2.5" HDD or 3.5" HDD. With riser card, it can be upgraded to 2 PCI slots. LCM is integrated for data display. |
|
put in clip photo for enlarged image
|
Technical Data
|
Dimension: |
44.3 H x 440 W x 360 mm |
Material: |
Aluminum |
Color: |
Black |
Weight: |
5.2 Kgs |
Storage Space: |
2.5" HDD / 3.5" HDD / CD-ROM / PCI slot |
Power: |
- External 84W adapter
-
Optional Internal 130W PSU (1 x 3.5" HDD + 2 x PCI only)
- Option: LCD Display 20 characters x 2 Lines, 5 x 8 dots
|
Operation temperature: |
0~40˚C |
|
|
| |
| Product code |
Description |
Mainboard |
DXF1701 |
Intel CPU socket, serial x 1, USB x 2 , 4 x Realtek 10/100, CF / 2.5" HDD / 3.5" HDD, PS: Ext. 84W x 1 |
|
DXF1711 |
Intel CPU socket, serial x 1, USB x 2 , 4 x Intel Gbe , CF / 2.5" HDD / 3.5" HDD, PS: Ext. 84W x 1 |
|
DXF1741 |
Intel CPU socket, serial x 4, USB x 4 , 2 x Realtek Giga LAN, CF / 2.5" HDD / 3.5" HDD, PS: Ext. 84W x 1 |
|
DXF1841 |
Atom N270 1.6GHz, serial x 4, USB x 4 , 2 x Realtek Giga LAN, CF / 2.5" HDD / 3.5" HDD, PS: Ext. 60W x 1 |
|
|
|
|
