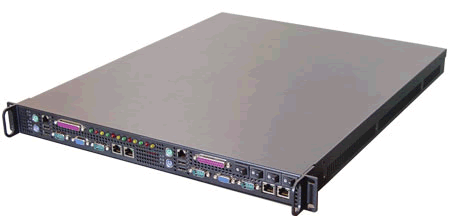

Lex119L-19"1U Embeded System

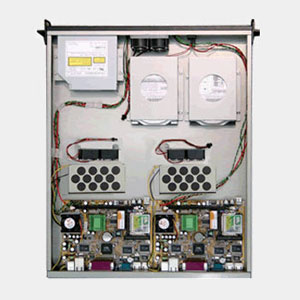

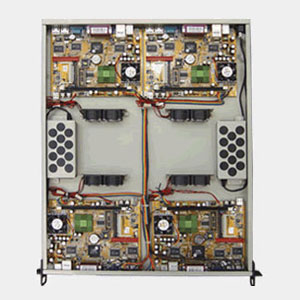

Layout Picture


Dimension Drawing
Feature :
 19"1U System Case provides 1 - 4 pcs MainBoard and 1 - 2 pcs Power Adapter space .

Customer can apply with 3.5" HDD / 2.5" HDD / Slim Type CD-Rom upon the application request.

Dimension:
  1. 44.5 H x 440 W x 500 D m( 2 pcs M/B )
  2. 44.5 H x 440 W x 511 D m( 4 pcs M/B )
Weight:

8 Kgs ( 2 pcs M/B ) , 9 Kgs ( 4 pcs M/B )
Ordering Information:
Case dimension - 4.45 (H) x 44.0 (W) x 50.4 (D) cm
Product Code M/B type Description
Intel Solution
XXX
1 x CI852A-4RN60
 1 x Celeron M 600MHz, 4 x USB 2.0 , 4 x 10/100 Realtek, 1 x Serial,0x Mini PCI, 1 x 3.5" HDD, 1 x Slim CD-ROM, Int. 60W
XXX 1 4 x CI852A-4RN60 4 x Celeron M 600MHz, 16 x USB 2.0 ,16 x 10/100 Realtek, 3 x Serial,0x Mini PCI, 4 x 2.5" HDD, Int. 60W
XXX 2 x CI852A-4RN60 2 x Celeron M 600MHz, 8 x USB 2.0 , 8 x 10/100 Realtek, 2 x Serial,0x Mini PCI, 2 x 3.5" HDD, 2 x Slim CD-ROM, Ext. 60W
VIA Solution
DX1502 1 1 x CV700A-3R10C*2
DX1503 1 1 x CV700A-3R10C*4
DX1512 1 1 x CV700A-3U10C*2
DX1581 1 1 x CV763A-4R10C*1
DX0017 1 1 x CV860A-1R80*2
DX2405 1 1 x CV860A-3R53*4
DX0031
1 x CV860A-3R53
 1 x Eden 533MHz, 2 x USB 2.0 , 3 x 10/100 Realtek,2 x Serial,0x Mini PCI,1 x 3.5" HDD, 1 x Slim CD-ROM, Int.. 60W
DX0036
1 x CV860A-3R80
 1 x C3 800MHz, 2 x USB 2.0 ,3 x 10/100 Realtek, 2 x Serial, 0x Mini PCI,1 x 3.5" HDD, 1 x Slim CD-ROM, Int.. 60W
DX0026
1 x CV860A-3R10N
 1 x C3 LP 1GHz, 2 x USB 2.0 ,3 x 10/100 Realtek, 4 x Serial, 0x Mini PCI,1 x 3.5" HDD, 1 x Slim CD-ROM, Int.. 60W
DX0822S 1 1 x CV863A-4R10E*2
DX0821
1 x CV863A-4R10E
 1 x Eden 1GHz, 4 x USB 2.0 ,4 x 10/100 Realtek, 1 x Serial, 2x Mini PCI,1 x 3.5" HDD, 1 x Slim CD-ROM, Int.. 60W
DX0032
2 x CV860A-3R53
 2 x Eden 533MHz, 4 x USB 2.0 ,6 x 10/100 Realtek, 4 x Serial, 0x Mini PCI,2 x 3.5" HDD, 2 x Slim CD-ROM, Int.. 60W
DX0037
2 x CV860A-3R80
 2 x C3 800MHz, 4 x USB 2.0 ,6 x 10/100 Realtek, 4 x Serial, 0x Mini PCI,2 x 3.5" HDD, 2 x Slim CD-ROM, Int.. 60W
DX0027
2 x CV860A-3R10N
 2 x C3 LP 1GHz, 4 x USB 2.0 ,6 x 10/100 Realtek, 4 x Serial, 0x Mini PCI,2 x 3.5" HDD, 2 x Slim CD-ROM, Int.. 60W
DX0822
2 x CV863A-4R10E
 2 x Eden 1GHzz, 8 x USB 2.0 ,8 x 10/100 Realtek, 2 x Serial, 4x Mini PCI,2 x 3.5" HDD, 2 x Slim CD-ROM, Int.. 60W
DX0033
4 x CV860A-3R53
 4 x Eden 533MHz, 8 x USB 2.0 ,12 x 10/100 Realtek, 8 x Serial, 0x Mini PCI,2 x 3.5" HDD, 2 x Slim CD-ROM, Ext. 60W
DX0038
4 x CV860A-3R80
 4 x C3 800MHz, 8 x USB 2.0 ,12 x 10/100 Realtek, 8 x Serial, 0x Mini PCI,4 x 2.5" HDD, Ext. 60W
DX0028
4 x CV860A-3R10N
 4 x C3 LP 1GHz, 8 x USB 2.0 ,12 x 10/100 Realtek, 8 x Serial, 0x Mini PCI,4 x 2.5" HDD, Ext. 60W
DX0823
4 x CV863A-4R10E
 4 x Eden 1GHz, 16 x USB 2.0 ,16 x 10/100 Realtek, 4 x Serial, 8x Mini PCI,4 x 2.5" HDD, Ext. 60W
